ASRock A520M-HDV Motherboard, AMD AM4, Micro-ATX, AMD A520, 2x DDR4 Slots up to 64GB, 1x PCIe 3.0 x16, 1x M.2 PCIe Gen3 x4, 4x SATA3, GbE LAN, No Wi-Fi, D-Sub + DVI-D + HDMI 2.1

• Socket: AM4
• CPU Compatibility: AMD Ryzen 5000 / 5000 G-Series / 4000 G-Series / 3000 / 3000 G-Series
• Chipset: AMD A520
• Form Factor: Micro-ATX
• Memory Slots: 2x DDR4
• M.2 Compatibility: PCIe Gen3 x4 + SATA3
• Wi-Fi: No

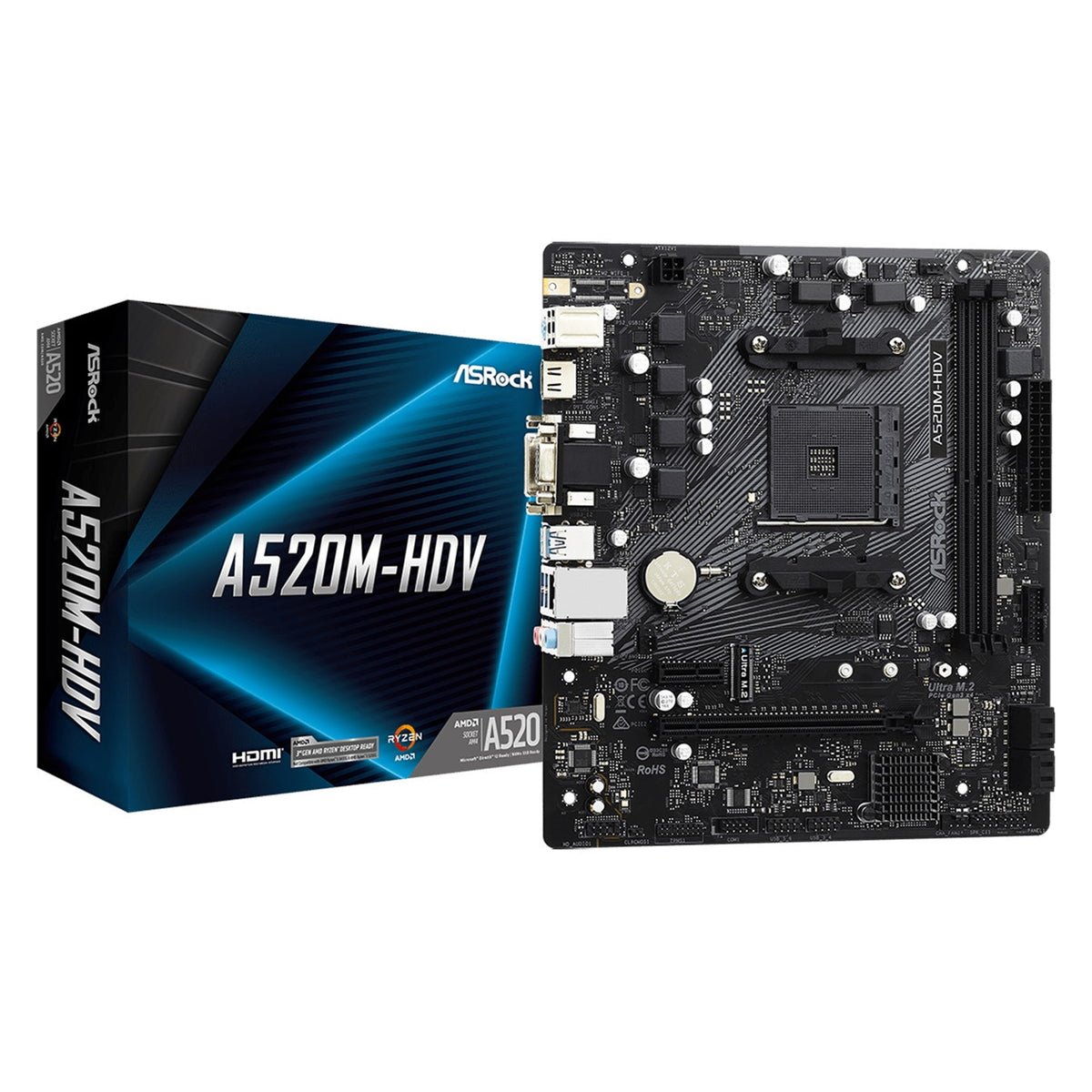

ASRock A520M-HDV Motherboard

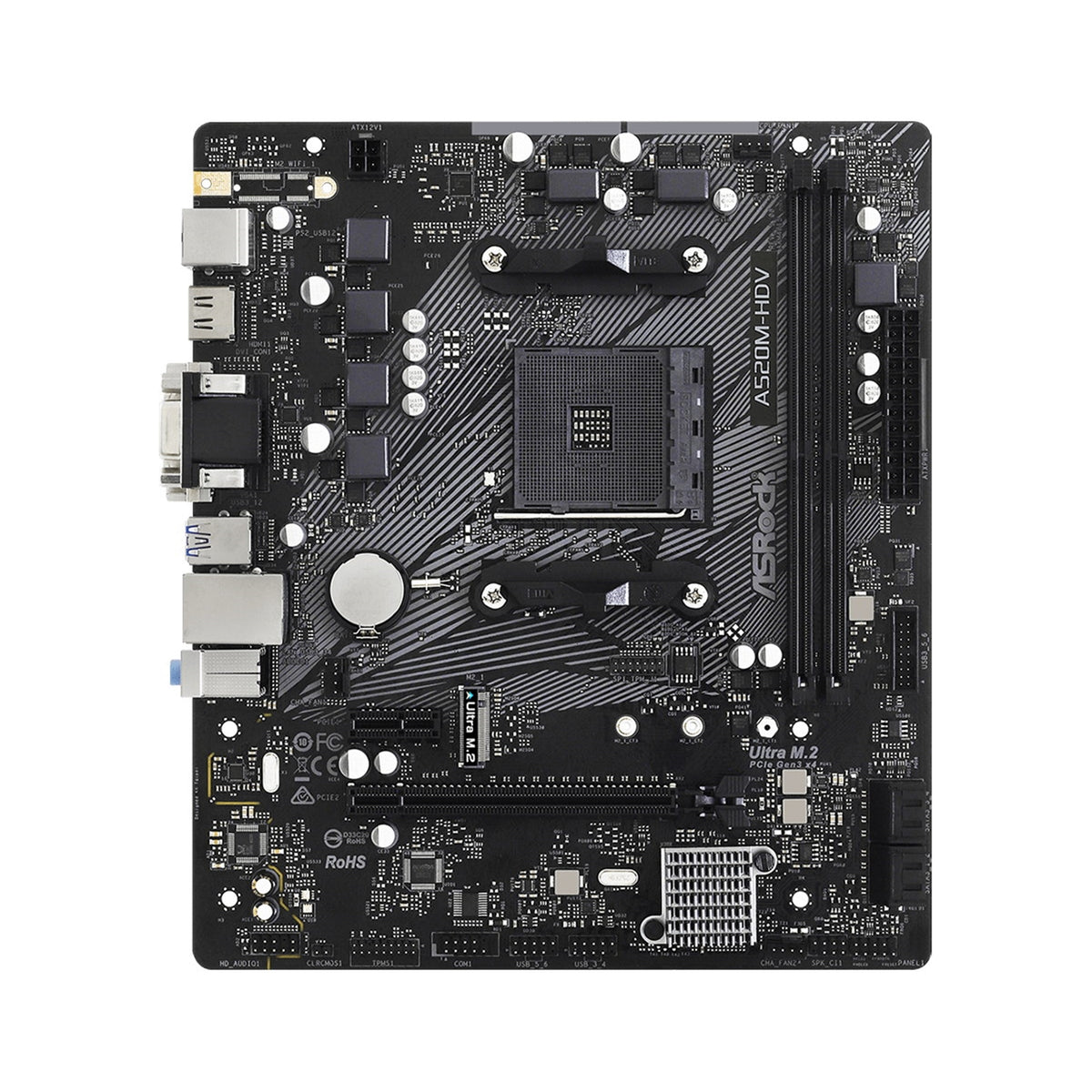

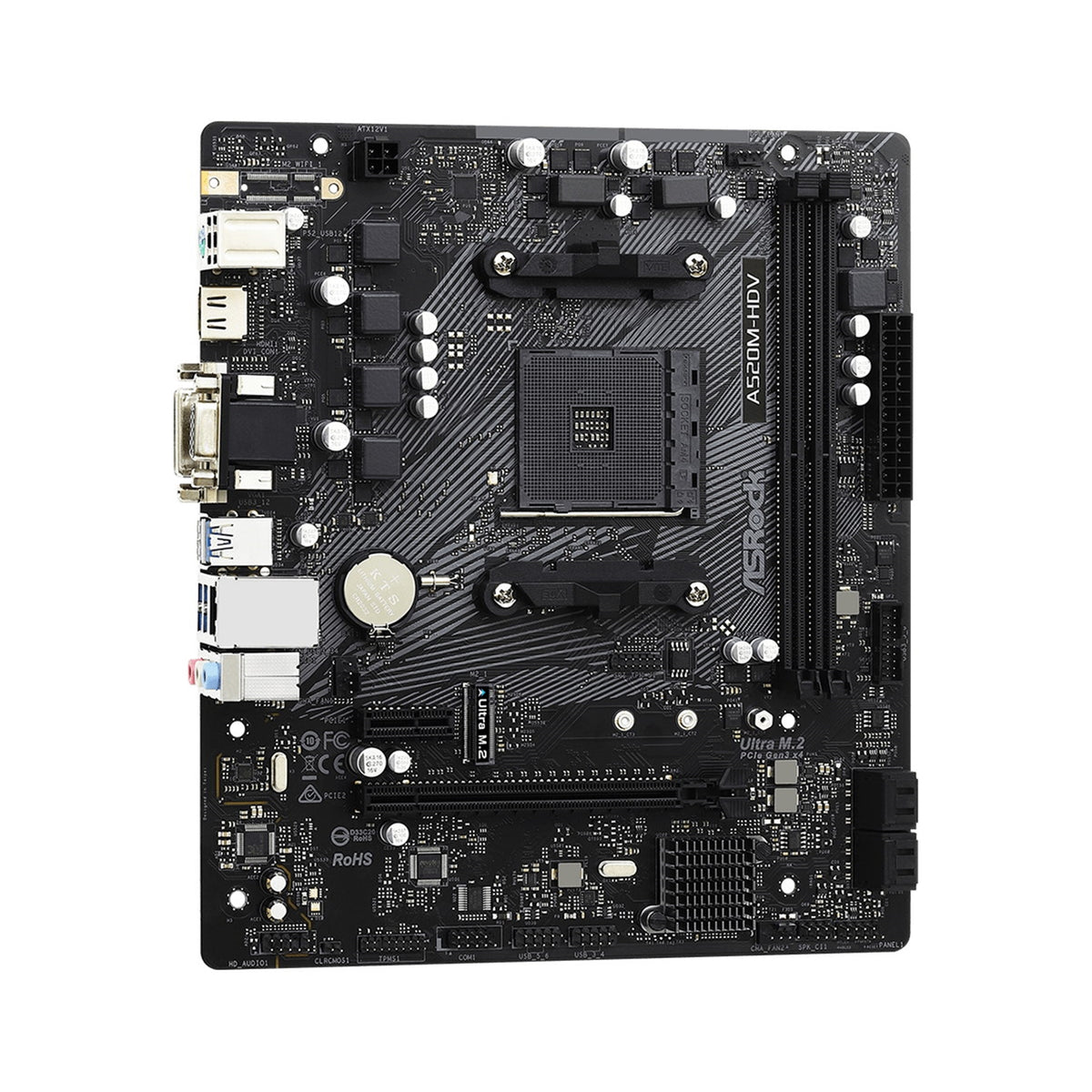

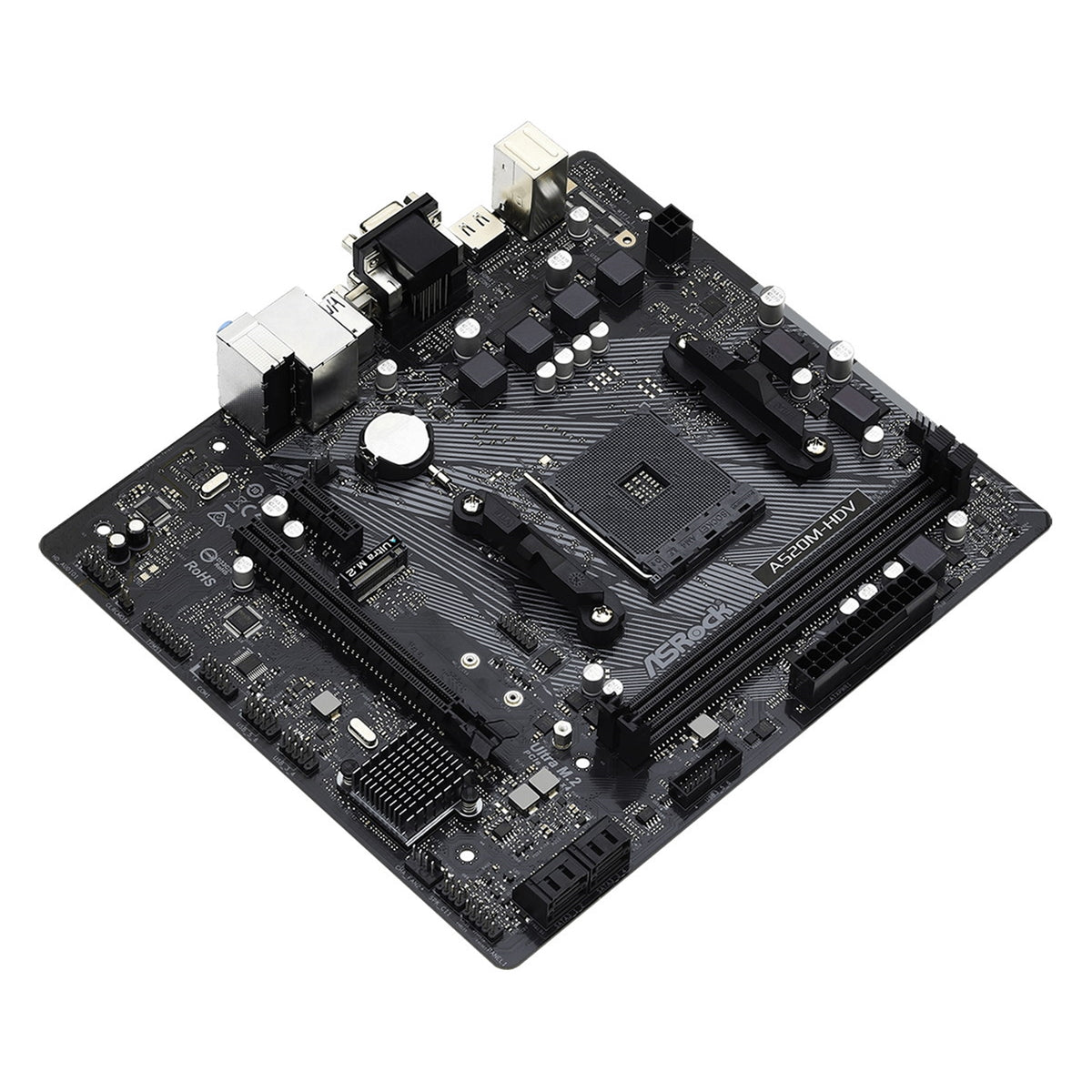

An entry-level AMD AM4 Micro-ATX motherboard based on the A520 chipset. Compatible with AMD Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000, and 5000 G-Series processors. Features two DDR4 slots (up to 64GB), one M.2 slot (PCIe Gen3 x4 or SATA3), four SATA3 ports with RAID support, one PCIe 3.0 x16 slot, Realtek Gigabit LAN, and triple display outputs (D-Sub + DVI-D + HDMI 2.1). The A520M-HDV adds DVI-D over the A520M-HVS, enabling triple-monitor setups with an APU. No Wi-Fi. ASRock Super Alloy with 6-phase power design.

UK-based seller
Tracked delivery across the UK
Genuine product from trusted distributors

Key Features
Socket: AM4; Chipset: AMD A520
CPU support: AMD Ryzen 3000 / 3000 G-Series / 4000 G-Series / 5000 / 5000 G-Series
Form factor: Micro-ATX (23.0 x 20.1cm)
Memory: 2x DDR4 DIMM; max 64GB; up to DDR4-4733+(OC); XMP support
Expansion: 1x PCIe 3.0 x16, 1x PCIe 3.0 x1
Storage: 4x SATA3 (RAID 0/1/10); 1x M.2 (PCIe Gen3 x4 / SATA3, up to 32Gb/s)
Display: D-Sub (max 1920x1200 @60Hz), DVI-D (max 1920x1200 @60Hz), HDMI 2.1 (max 4K@60Hz) — requires APU; triple-monitor capable
USB rear: 4x USB 3.2 Gen1, 2x USB 2.0, 1x PS/2
USB front headers: 2x USB 3.2 Gen1, 4x USB 2.0
LAN: Realtek RTL8111H Gigabit Ethernet; Wi-Fi: None
Audio: 7.1 CH HD (Realtek ALC887)
Power: 6-phase design; 24-pin ATX + 4-pin 12V
Fan headers: 1x CPU (4-pin), 2x Chassis (4-pin, Smart Fan)
BIOS: AMI UEFI; ASRock Instant Flash; TPM header

Technical Specifications
Model: A520M-HDV
Socket: AMD AM4
Chipset: AMD A520
Form Factor: Micro-ATX
Memory: 2x DDR4 DIMM; max 64GB
M.2: 1x (PCIe Gen3 x4 + SATA3; 2242/2260/2280)
PCIe: 1x PCIe 3.0 x16, 1x PCIe 3.0 x1
SATA: 4x SATA3 6Gb/s (RAID 0/1/10)

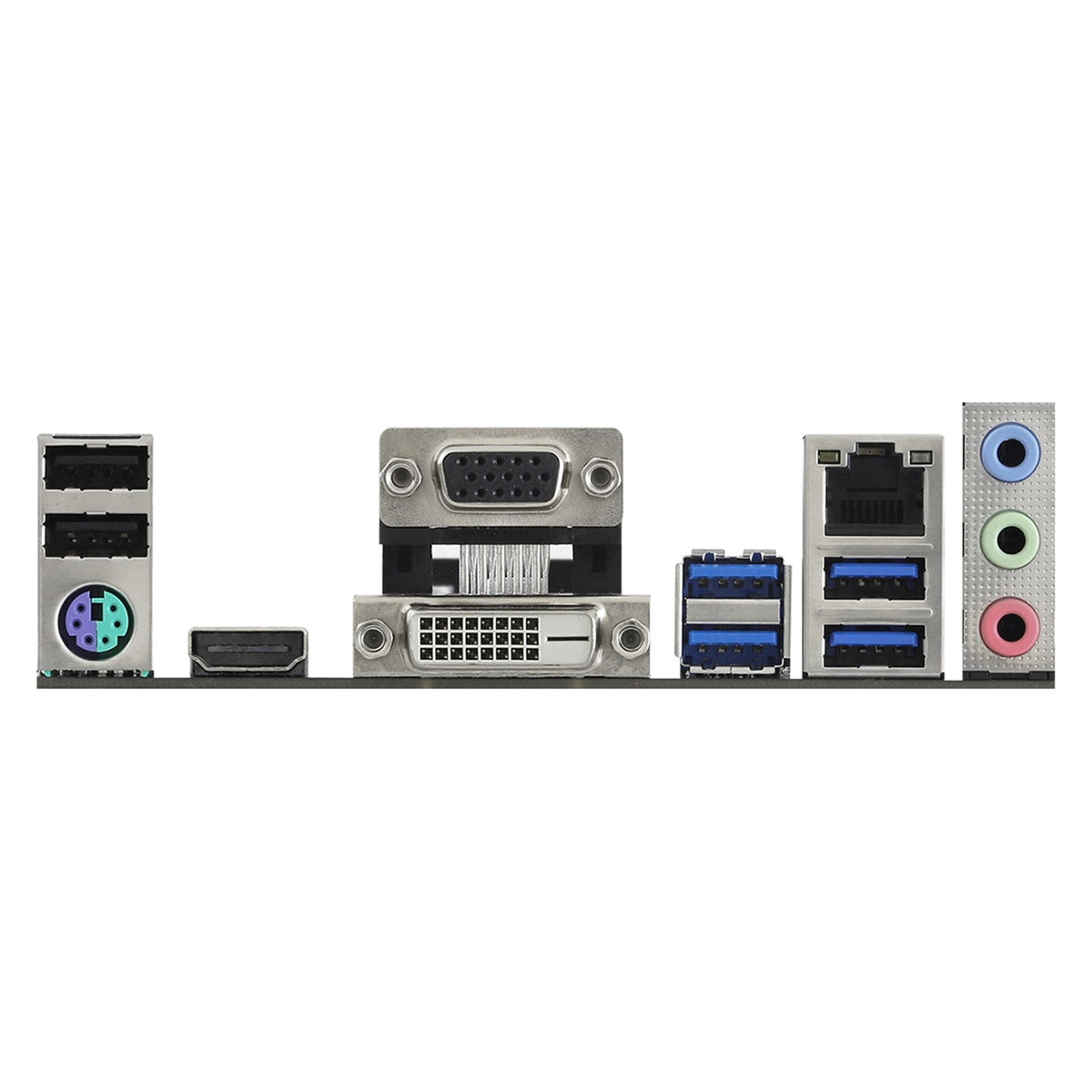

Display Output: 1x D-Sub, 1x DVI-D, 1x HDMI 2.1
USB (Rear): 4x USB 3.2 Gen1, 2x USB 2.0
LAN: Realtek RTL8111H 1GbE
Audio: Realtek ALC887 7.1 CH HD
Power Phases: 6
Wi-Fi: No
Dimensions: 23.0 x 20.1cm

Package Contents
A520M-HDV motherboard
Quick installation guide
I/O shield
2x SATA data cables
1x M.2 screw

Product Identification
Model: A520M-HDV
MPN: A520M-HDV
EAN: 4710483932267
