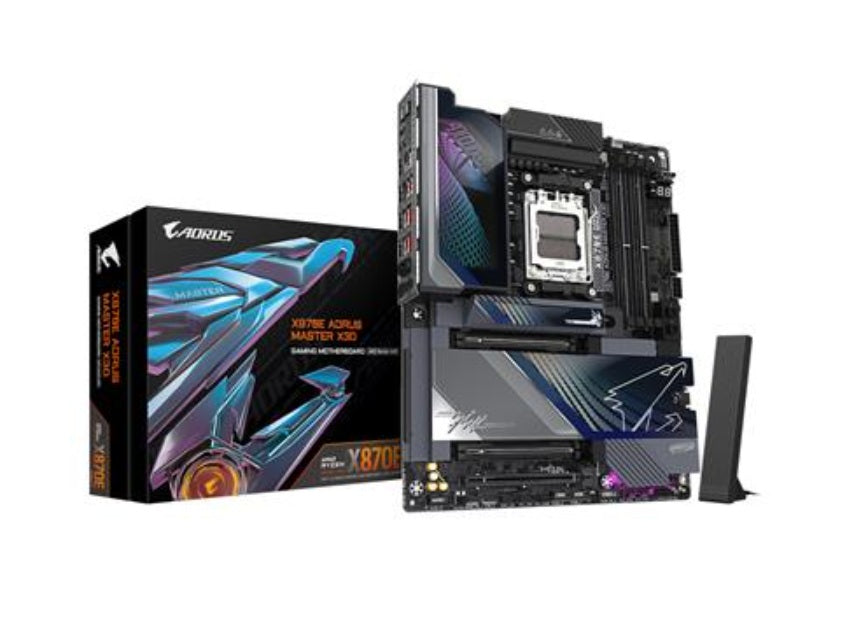

AORUS X870E AORUS MASTER X3D

(Socket AM5 / AMD X870E / DDR5 / SATA 6Gb/s / ATX)

• Manufacturer: Gigabyte

• Brand: AORUS

• Web Address: www.gigabyte.com

• Model Number: X870E AORUS MASTER X3D

• EAN: 4719331878894

• Package Type: Retail

• Warranty: 3 Years

BIOS

• 1 x 512 Mbit Flash

• Licensed AMI UEFI BIOS

• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset

• Chipset: AMD X870E

CPU Support

• CPU Interface: Socket AM5

• Supported Processors: AMD Ryzen 9000 / 8000 / 7000 Series

• CPU Support List:
  https://www.gigabyte.com/Motherboard/X870E-AORUS-MASTER-X3D/support#support-cpu

• Processor with integrated graphics required for video output

Memory

• Memory Technology: DDR5 (Dual Channel)

• Memory Slots: 4 x 288-pin DIMM

• Maximum Capacity: 256GB

• Memory Speeds: Up to DDR5 9000 (O.C.)

• AMD EXPO Support: Yes

Expansion Slots

• 2 x PCI Express 5.0 x16

• 1 x PCI Express 4.0 x16

Storage

• SATA 6Gb/s Ports: 2

• RAID Support: RAID 0 / 1

• M.2 Sockets:

  • 2 x PCIe Gen 5.0 x4

  • 3 x PCIe Gen 4.0 x4
    (Total: 5 x M.2 slots)

Networking

Wired LAN

• LAN1: Realtek 5GbE (5Gbps / 2.5Gbps / 1Gbps / 100Mbps)

• LAN2: Realtek 10GbE (10Gbps / 5Gbps / 2.5Gbps / 1Gbps / 100Mbps)

Wireless

• Wi-Fi 7 (802.11a/b/g/n/ac/ax/be)

  • 2.4 / 5 / 6 GHz bands

• Bluetooth: v5.4

Audio

• Realtek ALC1220 CODEC

• 2 x Audio Jacks

• 1 x S/PDIF Output

Rear I/O Ports

USB

• 1 x USB 3.1 Gen 2 Type-C

• 7 x USB 3.2 Gen 2 Type-A

• 1 x USB 3.2 Gen 2x2 Type-C

• 2 x Thunderbolt 4

Video

• 1 x HDMI

Networking

• 2 x LAN Ports

Buttons

• 1 x Q-Flash Plus

• 1 x Clear CMOS

• 1 x Reset

• 1 x Power

Internal Connectors

Power

• 1 x 24-pin ATX

• 2 x 8-pin ATX

• 1 x PCIe Power Connector

USB Headers

• 2 x USB 2.0

• 2 x USB 3.2 Gen 1

• 1 x USB 3.2 Gen 2x2

Other Headers

• 1 x Front Panel Audio

• 1 x TPM Header

• 4 x Addressable RGB Gen2 Headers

• 1 x RGB LED Header

• 1 x Noise Detection Header

• 2 x Temperature Sensor Headers

• 2 x Antenna Connectors

Form Factor & Dimensions

• Form Factor: Standard ATX

• Board Size: 244mm x 305mm

Package Dimensions

• Width: 31cm

• Length: 34cm

• Height: 9cm

Weight

• Net Weight: 2.48Kg

• Gross Weight: 3.82Kg

Special Features

• X3D Turbo Mode 2.0 (AI-Enhanced Performance)

• Digital Twin 18+2+2 Phase VRM

• DDR5 OC up to 9000MT/s

• PCIe EZ-Latch Plus Duo (tool-less PCIe release)

• M.2 EZ-Flex & M.2 EZ-Latch (screwless design)

• PCIe UD Slot X (10X strength PCIe 5.0 slot)

• PCB Thermal Plate (14% improved thermal performance)

• VRM Thermal Armor Advanced

• M.2 Thermal Guard L & Ext

• Dual LAN (10GbE + 5GbE)

• Dual Thunderbolt 4

• Wi-Fi 7 with ultra-high gain antenna

• Front QC-USB 65W support

Package Contents

• Motherboard

• Manual

• Quick Installation Guide

• 1 x Antenna

• 2 x SATA Cables

• DDR Wind Blade

• 1 x Fan Power Extension Cable

• 1 x Noise Detection Cable

• 2 x Thermistor Cables

• 2 x Velcro Cable Ties

• 1 x G Connector
