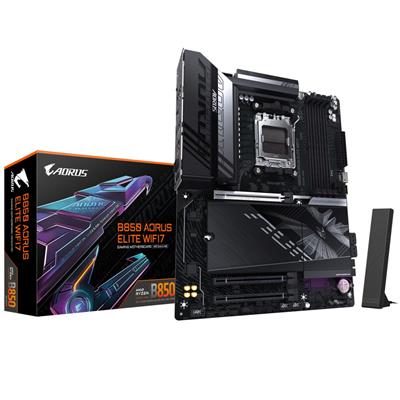

Aorus B850 AORUS ELITE WIFI7 (AM5/B850/DDR5/S-ATA 6Gb/s/ATX)

• Model Number: B850 AORUS ELITE WIFI7

• EAN: 4719331866105

• UPC: 889523046067

• Package Type: Retail

• Warranty: 3 Years

• Web Address: www.gigabyte.com

BIOS

• BIOS:

  • 1 × 256 Mbit flash

  • Use of licensed AMI UEFI BIOS

  • PnP 1.0a

  • DMI 2.7

  • WfM 2.0

  • SM BIOS 2.7

  • ACPI 5.0

Platform

• Chipset: AMD B850

• CPU Interface: Socket AM5

• CPU Support: https://www.gigabyte.com/Motherboard/B850-AORUS-ELITE-WIFI7/support#support-cpu

Memory

• RAM Technology: DDR5 (Dual Channel)

• RAM Slots: 4 × 288-pin

• RAM Speeds: Up to DDR5 8200 (O.C.)

• Max. Memory Support: 256 GB

Expansion Slots

• PCI Express 5.0 x16: 1

• PCI Express 3.0 x16: 2

Storage

• S-ATA 6Gb/s Ports: 4

• RAID Support: RAID 0 / 1 / 5 / 10

M.2 Sockets

• 1 × PCIe Gen 5.0 x4

• 2 × PCIe Gen 4.0 x4

Networking

• LAN: Realtek 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps)

• Wireless NIC: Wi-Fi 7

• Wireless Technology: 802.11a, b, g, n, ac, ax, be (supporting 2.4 / 5 / 6 GHz carrier frequency bands)

• Bluetooth: v5.4

Audio

• On-Board Audio:

  • Realtek Audio CODEC

  • High Definition Audio

  • 2 / 4 / 5.1 / 7.1-channel

Video

• On-Board Video: Processor with integrated graphics is required

Rear I/O Ports

• USB 2.0 Ports: 4

• USB 3.2 Type-A Gen 1 Ports: 5

• USB 3.2 Type-A Gen 2 Ports: 2

• USB 3.2 Type-C Gen 2 Ports: 1

• DisplayPort: 1

• LAN Port: 1

• Audio Jacks: 2

• S/PDIF Output: 1

• Other Ports: 2 × Antenna connectors (2T2R)

• Buttons: 1 × Q-Flash Plus

Internal Connectivity

• 24-pin ATX Power: 1

• 8-pin ATX Power: 1

• 4-pin ATX Power: 1

USB Headers

• USB 2.0 Headers: 2

• USB 3.2 Gen 1 Headers: 1

• USB 3.2 Gen 2x2 Headers: 1

Other Internal Connectors

• HDMI Ports: 1

• Front Panel Audio Connector: 1

• TPM Headers: 1

Internal Other Ports

• 3 × Addressable RGB Gen2 LED Strip Headers

• 1 × RGB LED Strip Header

Internal Buttons

• 1 × Power

• 1 × Reset

Cooling

Thermal Design

• VRM Thermal Armor Advanced

• M.2 Thermal Guard Ext

Physical Specifications

• Form Factor: Standard ATX

• Product Width: 244 mm

• Product Length: 305 mm

Package Dimensions

• Package Width: 27.5 cm

• Package Length: 34 cm

• Package Height: 8 cm

Weight

• Gross Weight: 2.19 kg

Features

• X3D Turbo Mode: Unleash new era gaming performance

• DDR5 OC up to 8200 MT/s

• AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors

• Digital twin 14+2+2 phases VRM solution

• Dual Channel DDR5: 4 × DIMMs with AMD EXPO Memory Module Support

• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation

• EZ-Latch Plus: PCIe and M.2 slots with Quick Release and Screwless Design

• EZ-Latch Click: M.2 heatsinks with screwless design

• Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup

• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW

• Ultra-Fast Storage: 3 × M.2 slots, including PCIe 5.0 x4

• Efficient Thermal: VRM Thermal Armor Advanced and M.2 Thermal Guard Ext

• Fast Networking: 2.5GbE LAN and Wi-Fi 7 with directional Ultra-high gain antenna

• Extended Connectivity: HDMI, DisplayPort

• PCIe UD Slot: PCIe 5.0 x16 slots with 10× strength for graphics card and better heat dissipation effect

Package Contents

• Motherboard

• Manual

• Quick Installation Guide

• 1 × Antenna

• 2 × SATA cables

• 1 × G Connector

• 1 × M.2 thermal pad

• 2 × Packs of M.2 thick/thin rubber pads

• Motherboard

• B850

• AM5

• Wi-Fi 7

This motherboard provides a modern platform for building high-performance systems with support for the latest processors, DDR5 memory, and advanced connectivity options, making it suitable for gaming, workstation, and enthusiast PC configurations.
