Gigabyte TRX50 AI TOP (Socket sTR5/TRX50/DDR5/S-ATA 6Gb/s/Extended ATX)

• Web Address: www.gigabyte.com

• Model Number: TRX50 AI TOP-2B

• EAN: 4719331868529

• Package Type: Retail

• Warranty: 3 Years

• Form Factor: Extended ATX

BIOS

• 1 x 256 Mbit flash

• Use of licensed AMI UEFI BIOS

• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset

• Chipset: AMD TRX50

CPU

• CPU Interface: Socket sTR5

• CPU Support: https://www.gigabyte.com/Motherboard/TRX50-AI-TOP/support#support-cpu

Memory

• RAM Technology: DDR5 ECC Registered

• RAM Slots: 8 x 288-pin

• Max. Memory Support: 2TB

Expansion Slots

• PCI Express 5.0 x16: 4

Storage

• S-ATA 6Gb/s Port(s): 4

• RAID: Raid 0/1/10

Networking

• On-Board LAN: 2 x Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/ 1 Gbps/100 Mbps)

Wireless

• Wireless NIC: Wi-Fi 7

• 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

• Support for 11be 320MHz wireless standard

Bluetooth

• v5.3

Audio

On-Board Audio

• Realtek® ALC4080 CODEC (rear panel audio)

• Support for DTS:X Ultra

• High Definition Audio

• 2-channel

• Realtek ALC897 CODEC (front panel audio)

Graphics

• On-Board Video: Processor with integrated graphics is required

Back Panel I/O

• Back USB 3.2 Port(s) Type-A Gen 2: 6

• Back USB4 Port(s) Type-C: 2

• Back DisplayPort(s) In: 1

• Back LAN Port(s): 2

• Back Audio Jack(s): 2

Back Other Port(s)

• 2 x SMA antenna connectors

Back Button(s)

• 1 x Q-Flash Plus

Internal Connectivity

• 24-pin ATX Power: 1

• 8-pin ATX Power: 2

• PCIe Power Connector(s): 4

• USB 2.0 Header(s): 2

• USB 3.2 Header(s) Gen 1: 2

• USB 3.2 Header(s) Gen 2x2: 1

• Front Panel Audio Connector: 1

• TPM Header(s): 1

Internal Other Port(s)

• 3 x addressable RGB Gen2 LED strip headers

• 1 x RGB LED strip header

• 1 x Noise detection header

• 2 x Temperature sensor headers

Internal Button(s)

• 1 x Power

• 1 x Clear CMOS

• 1 x Reset

Physical Specifications

• Product Width: 305mm

• Product Length: 330mm

Package Dimensions

• Package Width: 38cm

• Package Length: 40cm

• Package Height: 10.5cm

Weight

• Gross Weight: 5.62Kg

Special Features

• Training your own AI on your desk.

• Socket sTR5: Supports AMD Ryzen Threadripper PRO 7000 series/ Ryzen Threadripper 7000 series Processors.

• Breakthrough Performance: 16+8+4 Phases Digital VRM Solution.

• 8 Channel DDR5: 8 x SMD ECC R-DIMMs with Maximum 2TB capacity.

• Reinforced Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard.

• Ultimate Scalability: 4 x PCIe 5.0 x16 slots for Multi-GPU and 4 x PCIe 5.0 x4 M.2 slots.

• Next-gen Connectivity: Dual USB4 Type-C ports.

• Blazing Fast Networks: Dual 10GbE LAN, Wi-Fi 7 with Ultra-high gain directional antenna and WIFI EZ-Plug.

• PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card.

• EZ-Latch Click: M.2 heatsinks with screwless design.

• EZ-Latch Plus: M.2 slots with quick release design.

• Hi-Fi Audio with DTS:X Ultra: ALC4080+ALC897 CODEC.

• UC BIOS: User-Centred intuitive UX with Quick Access function.

Package Contents

• TRX50 AI TOP motherboard

• Manual

• Quick Installation Guide

• 1 x Antenna

• 4 x SATA cables

• 1 x Noise detection cable

• 2 x Thermistor cables

• 1 x G Connector

• 1 x Dual 24-pin ATX power supply adapter cable

• 1 x DisplayPort in cable

• Motherboard

• sTR5

• TRX50

• DDR5

• ECC

• Registered

• E-ATX

ASUS PRIME B650-PLUS WIFI (Socket AM5/B650/DDR5/S-ATA 6Gb/s/ATX)

• Model Number: PRIME B650-PLUS WIFI

• Web Address: www.asus.com

• EAN: 4711387760895

• UPC: 197105760899

• Package Type: Retail

• Warranty: 3 Years

Performance

• Chipset: AMD B650

• CPU Interface: Socket AM5

• CPU Support:
  https://www.asus.com/uk/motherboards-components/motherboards/prime/prime-b650-plus-wifi/helpdesk_qvl_cpu?model2Name=PRIME-B650-PLUS-WIFI

• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Memory

• RAM Technology: DDR5 (Dual Channel)

• RAM Slots: 4 × 288-pin

• RAM Speeds: Up to DDR5 7600+ (O.C.)

• Max. Memory Support: 192 GB

Graphics

• On-Board Video: Processor with integrated graphics is required

Storage

• S-ATA 6 Gb/s Port(s): 4

• RAID: Raid 0/1/5/10

• M.2 Socket(s):

  • 1 × PCIe Gen 5.0 x4

  • 1 × PCIe Gen 4.0 x4

Networking

• LAN Speed: 1 × Realtek 2.5Gb Ethernet

• Wireless NIC: Wi-Fi 6E

• Wireless Technology:

  • 2x2 Wi-Fi 6E (802.11ax)

  • Supports 2.4 / 5 / 6 GHz frequency band

• Bluetooth: v5.3

Audio

• On-Board Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

Expansion Slots

• PCI Express 4.0 x16: 2

• PCI Express 4.0 x1: 2

Back Panel I/O

• Back Panel I/O Ports: 1

• Back USB 2.0 Port(s): 2

• Back USB 5Gbps Port(s) Type-A: 2

• Back USB 10Gbps Port(s) Type-A: 3

• Back USB 10Gbps Port(s) Type-C: 1

• Back HDMI Port(s): 1

• Back DisplayPort(s): 1

• Back LAN Port(s): 1

• Back Audio Jack(s): 5

• Back S/PDIF Output Port(s): 1

• Back Other Port(s):

  • 1 × Wi-Fi Module

• Back Button(s):

  • 1 × BIOS FlashBack

Internal Connectivity

• 24-pin ATX Power: 1

• 8-pin ATX Power: 1

• USB 2.0 Header(s): 2

• USB 5Gbps Header(s): 2

• Thunderbolt Header(s): 1

• COM Port Header(s): 1

• Front Panel Audio Connector: 1

• TPM Header(s): 1

• Internal Other Port(s):

  • 3 × Addressable Gen 2 headers

  • 1 × Aura RGB header

Physical Specifications

• Form Factor: Standard ATX

• Product Width: 244 mm

• Product Length: 305 mm

• Package Width: 27.5 cm

• Package Length: 34.5 cm

• Package Height: 7 cm

• Gross Weight: 1.67 kg

Features

• AMD AM5 Socket: Ready for AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors.

• Ultrafast Connectivity: WIFI 6E, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 10Gbps Type-C, front USB 5Gbps Type-C, Thunderbolt 4 header support.

• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking.

• Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+.

• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware.

Package Contents

• Motherboard

• 2 × SATA 6Gb/s cables

• 1 × I/O Shield

• 1 × Wi-Fi moving antenna

• 1 × M.2 Rubber Package

• 1 × Screw package for M.2 SSD

• 1 × User guide

• Motherboard

• AM5

• B650

• DDR5

• Wi-Fi 6E

Gigabyte B860M GAMING X WIFI6E (Socket 1851/B860/DDR5/S-ATA 6Gb/s/Micro ATX)

Brand: Gigabyte

General Information

• Model Number: B860M GAMING X WIFI6E

• EAN: 4719331867133

• UPC: 889523046951

• Warranty: 3 Years

• Package Type: Retail

• Form Factor: Micro ATX

BIOS

• BIOS:

  • 1 × 256 Mbit flash

  • Use of licensed AMI UEFI BIOS

  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Processor

• CPU Interface: Socket 1851

• Chipset: Intel B860 Express

• CPU Support: https://www.gigabyte.com/Motherboard/B860M-GAMING-X-WIFI6E/support#support-cpu

Memory

• RAM Technology: DDR5 (Dual Channel)

• RAM Slots: 4 × 288-pin

• RAM Speeds: Up to DDR5 9200 (O.C.)

• Max. Memory Support: 256 GB

Expansion Slots

• PCI Express 5.0 x16: 1

• PCI Express 4.0 x16: 1

Storage

• S-ATA 6Gb/s Port(s): 4

• RAID: Raid 0/1/5/10

M.2 Socket(s)

• 1 × PCIe Gen 5.0 x4

• 1 × PCIe Gen 4.0 x4

Networking

• On-Board LAN: Realtek 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps)

• Wireless NIC: Wi-Fi 6E

Wireless Technology

• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

• Bluetooth: v5.3

Audio & Graphics

• On-Board Audio:

  • Realtek Audio CODEC

  • High Definition Audio

  • 2/4/5.1/7.1-channel

• On-Board Video: Processor with integrated graphics is required

Rear I/O Ports

• USB 2.0 Port(s): 5

• USB 3.2 Port(s) Type-A Gen 1: 3

• USB4 Port(s) Type-C: 1

• HDMI Port(s): 1

• DisplayPort(s): 1

• LAN Port(s): 1

• Audio Jack(s): 3

• Other Port(s): 2 × Antenna connectors (2T2R)

Internal Connectors

• 24-pin ATX Power: 1

• 8-pin ATX Power: 1

• USB 2.0 Header(s): 2

• USB 3.2 Header(s) Gen 1: 1

• USB 3.2 Header(s) Gen 2: 1

• Thunderbolt Header(s): 2

• Front Panel Audio Connector: 1

• TPM Header(s): 1

Internal Other Port(s)

• 3 × Addressable RGB Gen2 LED strip headers

• 1 × RGB LED strip header

Internal Button(s)

• 1 × Q-Flash Plus

Physical Specifications

Product Dimensions

• Width: 244 mm

• Length: 244 mm

Package Dimensions

• Width: 27 cm

• Length: 27 cm

• Height: 7 cm

• Gross Weight: 1.22 kg

Features

• Supports Intel Core Ultra processors.

• Hybrid Digital 8+1+2 phases VRM solution.

• D5 Bionic Corsa for Infinite Memory Performance.

• AI Perfdrive: Provides optimal and customized BIOS preset profile for users.

• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.

• EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design.

• EZ-Latch Click: M.2 heatsinks with screwless design.

• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.

• New Power Monitor in HWinfo for real-time monitoring on CPU power phases.

• Ultra-Fast Storage: 2 × M.2 slots, including 1 × PCIe 5.0 x4.

• Efficient Thermal: VRM Thermal Armor Advanced and M.2 Thermal Guard.

• Fast Networking: 2.5GbE LAN and Wi-Fi 6E 802.11ax.

• Extended Connectivity: USB4 Type-C with DP-Alt, HDMI, DisplayPort.

Package Contents

• Motherboard

• Manual

• Quick Installation Guide

• 1 × Antenna

• 2 × SATA cables

• One pack of M.2 thick/thin rubber pads

• Motherboard

• 1851

• B860

• DDR5

Aorus B860M AORUS ELITE WIFI6E (Socket 1851/B860/DDR5/S-ATA 6Gb/s/Micro ATX)

Brand: Aorus

General Information

• Model Number: B860M AORUS ELITE WIFI6E

• EAN: 4719331866877`

• UPC: 889523046609

• Warranty: 3 Years

• Package Type: Retail

• Form Factor: Micro ATX

BIOS

• BIOS:

  • 1 × 256 Mbit flash

  • Use of licensed AMI UEFI BIOS

  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Processor

• CPU Interface: Socket 1851

• Chipset: Intel B860 Express

• CPU Support: https://www.gigabyte.com/Motherboard/B860M-AORUS-ELITE-WIFI6E-ICE/support#support-cpu

Memory

• RAM Technology: DDR5 (Dual Channel)

• RAM Slots: 4 × 288-pin

• RAM Speeds: Up to DDR5 9200 (O.C.)

• Max. Memory Support: 256 GB

Expansion Slots

• PCI Express 5.0 x16: 1

• PCI Express 4.0 x16: 1

Storage

• S-ATA 6Gb/s Port(s): 4

• RAID: Raid 0/1/5/10

M.2 Socket(s)

• 1 × PCIe Gen 5.0 x4

• 2 × PCIe Gen 4.0 x4

Networking

• LAN Speed: Realtek 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps)

• Wireless NIC: Wi-Fi 6E

Wireless Technology

• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

• Bluetooth: v5.3

Audio & Graphics

• On-Board Audio:

  • Realtek Audio CODEC

  • High Definition Audio

  • 2/4/5.1/7.1-channel

• On-Board Video: Processor with integrated graphics is required

Rear I/O Ports

• USB 2.0 Port(s): 4

• USB 3.2 Port(s) Type-A Gen 1: 4

• USB 3.2 Port(s) Type-A Gen 2: 2

• USB4 Port(s) Type-C: 1

• HDMI Port(s): 1

• DisplayPort(s): 1

• LAN Port(s): 1

• Audio Jack(s): 2

• S/PDIF Output Port(s): 1

• Other Port(s): 2 × Antenna connectors

Internal Connectors

• 24-pin ATX Power: 1

• 8-pin ATX Power: 2

• USB 2.0 Header(s): 12

• USB 3.2 Header(s) Gen 1: 1

• USB 3.2 Header(s) Gen 2: 1

• Thunderbolt Header(s): 2

• HDMI Port(s): 1

• Front Panel Audio Connector: 1

• TPM Header(s): 1

Internal Other Port(s)

• 3 × Addressable RGB Gen2 LED strip headers

• 1 × RGB LED strip header

Internal Button(s)

• 1 × Power

• 1 × Reset

• 1 × Q-Flash Plus

Physical Specifications

Product Dimensions

• Width: 244 mm

• Length: 244 mm

Package Dimensions

• Width: 27 cm

• Length: 27 cm

• Height: 7 cm

• Gross Weight: 1.69 kg

Features

• Supports Intel Core Ultra processors.

• Digital twin 12+1+2 phases VRM solution.

• Dual Channel DDR5: 4 × DIMMs with XMP Memory Module Support.

• D5 Bionic Corsa for Infinite Memory Performance.

• AI Perfdrive: Provides optimal and customized BIOS preset profile for users.

• EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design.

• EZ-Latch Click: M.2 heatsinks with screwless design.

• Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup.

• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.

• Ultra-Fast Storage: 3 × M.2 slots, including 1 × PCIe 5.0 x4.

• Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.

• Fast Networking: 2.5GbE LAN and Wi-Fi 6E with directional Ultra-high gain antenna.

• Extended Connectivity: USB4 Type-C with DP-Alt, HDMI, DisplayPort.

Package Contents

• Motherboard

• Manual

• Quick Installation Guide

• 1 × Antenna

• 2 × SATA cables

• 1 × G Connector

• Three packs of M.2 thick/thin rubber pads

• Motherboard

• 1851

• B860

• DDR5

• Wi-Fi 6E

Gigabyte B860 GAMING X WIFI6E (Socket 1851/B860/DDR5/S-ATA 6Gb/s/ATX)

Brand: Gigabyte

General Information

• Model Number: B860 GAMING X WIFI6E

• EAN: 4719331866532

• UPC: 889523046340

• Warranty: 3 Years

• Package Type: Retail

• Form Factor: Standard ATX

BIOS

• BIOS:

  • 1 × 256 Mbit flash

  • Use of licensed AMI UEFI BIOS

  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Processor

• CPU Interface: Socket 1851

• Chipset: Intel B860 Express

• CPU Support: https://www.gigabyte.com/Motherboard/B860-GAMING-X-WIFI6E/support#support-cpu

Memory

• RAM Technology: DDR5 (Dual Channel)

• RAM Slots: 4 × 288-pin

• RAM Speeds: Up to DDR5 9066 (O.C.)

• Max. Memory Support: 256GB

Expansion Slots

• PCI Express 4.0 x16: 2

• PCI Express 5.0 x16: 1

Storage

• S-ATA 6Gb/s Port(s): 4

• RAID: Raid 0/1/5/10

M.2 Socket(s)

• 1 × PCIe Gen 5.0 x4

• 2 × PCIe Gen 4.0 x4

Networking

• LAN Speed: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Wireless NIC: Wi-Fi 6E

Wireless Technology

• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

• Bluetooth: v5.3

Audio & Graphics

• On-Board Audio:

  • Realtek Audio CODEC

  • High Definition Audio

  • 2/4/5.1/7.1-channel

• On-Board Video: Processor with integrated graphics is required

Rear I/O Ports

• USB 2.0 Port(s): 5

• USB 3.2 Port(s) Type-A Gen 1: 2

• USB 3.2 Port(s) Type-A Gen 2: 1

• USB4 Port(s) Type-C: 1

• HDMI Port(s): 1

• DisplayPort(s): 1

• LAN Port(s): 1

• Audio Jack(s): 3

• Other Port(s): 2 × Antenna connectors (2T2R)

Internal Connectors

• 24-pin ATX Power: 1

• 8-pin ATX Power: 1

• USB 2.0 Header(s): 2

• USB 3.2 Header(s) Gen 1: 1

• USB 3.2 Header(s) Gen 2: 1

• Front Panel Audio Connector: 1

• TPM Header(s): 1

• S/PDIF Out Header(s): 1

Internal Other Port(s)

• 3 × Addressable RGB Gen2 LED strip headers

• 1 × RGB LED strip header

Internal Button(s)

• 1 × Q-Flash Plus

Physical Specifications

Product Dimensions

• Width: 244mm

• Length: 305mm

Package Dimensions

• Width: 27cm

• Length: 34cm

• Height: 8cm

• Gross Weight: 1.94Kg

Features

• Supports Intel Core Ultra processors.

• Twin Hybrid 12+1+2 phases VRM solution.

• D5 Bionic Corsa for Infinite Memory Performance.

• AI Perfdrive: Provides optimal and customized BIOS preset profile for users.

• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.

• EZ-Latch Plus: PCIe and M.2 slots with Quick Release and Screwless Design.

• EZ-Latch Click: M.2 heatsinks with screwless design.

• New Power Monitor in HWinfo for real-time monitoring on CPU power phases.

• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.

• Ultra-Fast Storage: 3 x M.2 slots, including 1 x PCIe 5.0 x4.

• Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.

• Fast Networking: 2.5GbE LAN & Wi-Fi 6E 802.11ax.

• Extended Connectivity: USB4 Type-C with DP-Alt, HDMI, DisplayPort.

Package Contents

• Motherboard

• Manual

• Quick Installation Guide

• 1 x Antenna

• 2 x SATA cables

• Three packs of M.2 thick/thin rubber pads

• Motherboard

• 1851

• B860

• DDR5

• Wi-Fi

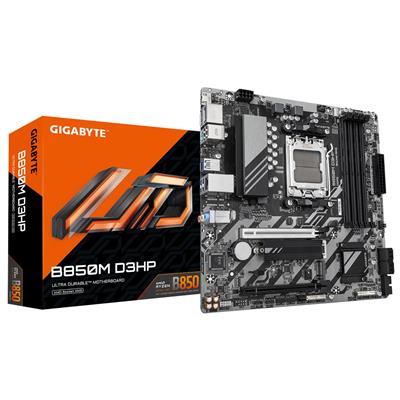

Gigabyte B850M D3HP (AM5/B850/DDR5/S-ATA 6Gb/s/Micro ATX)

Brand: Gigabyte

General Information

• Model Number: B850M D3HP

• EAN: 4719331867058

• UPC: 889523046586

• Warranty: 3 Years

• Package Type: Retail

• Form Factor: Micro ATX

BIOS

• BIOS:

  • 1 x 256 Mbit flash

  • Use of licensed AMI UEFI BIOS

  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Processor

• CPU Interface: Socket AM5

• Chipset: AMD B850

• CPU Support: https://www.gigabyte.com/Motherboard/B850M-D3HP/support#support-cpu

Memory

• RAM Technology: DDR5 (Dual Channel)

• RAM Slots: 4 x 288-pin

• RAM Speeds: Up to DDR5 8200 (O.C.)

• Max. Memory Support: 256GB

Expansion Slots

• PCI Express 3.0 x16: 1

• PCI Express 5.0 x16: 1

Storage

• S-ATA 6Gb/s Port(s): 4

• RAID: Raid 0/1/10

M.2 Socket(s)

• 1 x PCIe Gen 5.0 x4

• 1 x PCIe Gen 4.0 x4

Networking

• LAN Speed: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Audio & Graphics

• On-Board Audio:

  • Realtek Audio CODEC

  • High Definition Audio

  • 2/4/5.1/7.1-channel

• On-Board Video: Processor with integrated graphics is required

Rear I/O Ports

• PS/2 Keyboard/Mouse Port: 1

• USB 2.0 Port(s): 2

• USB 3.2 Port(s) Type-A Gen 1: 3

• USB 3.2 Port(s) Type-C Gen 1: 1

• HDMI Port(s): 1

• DisplayPort(s): 2

• LAN Port(s): 1

• Audio Jack(s): 3

• Other Port(s): 1 x Q-Flash Plus

Internal Connectors

• 24-pin ATX Power: 1

• 8-pin ATX Power: 1

• USB 2.0 Header(s): 2

• USB 3.2 Header(s) Gen 1: 2

• Front Panel Audio Connector: 1

• TPM Header(s): 1

Internal Other Port(s)

• 2 x Addressable RGB Gen2 LED strip headers

• 1 x RGB LED strip header

Physical Specifications

Product Dimensions

• Width: 244mm

• Length: 244mm

Package Dimensions

• Width: 26.5

• Length: 27

• Height: 5.5

• Gross Weight: 0.985

Features

• X3D Turbo Mode to unleash new era gaming performance.

• AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors.

• Digital 5+2+2 phases VRM solution.

• Dual Channel DDR5: 4 x DIMMs with AMD EXPO Memory Module Support.

• EZ-Latch: PCIe x16 Slot with Quick Release Design.

• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.

• Ultra-Fast Storage: 2 x M.2 slots, including 1 x PCIe 5.0 x4.

• Fast Networking: GbE LAN.

• Extended Connectivity: 2 x DP, HDMI.

Package Contents

• Motherboard

• Manual

• Quick Installation Guide

• I/O Shield

• 1 x SATA cable

• One pack of M.2 thick/thin rubber pads

• Motherboard

• AM5

• B850

• DDR5

• Micro ATX

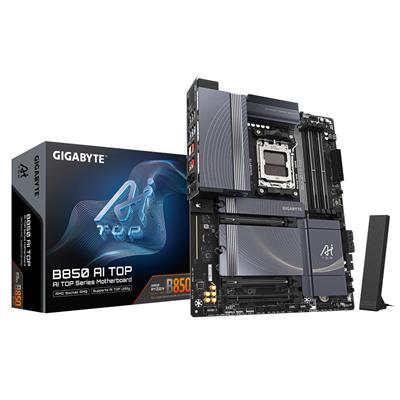

Gigabyte B850 AI TOP (AM5/B850/DDR5/S-ATA 6Gb/s/ATX)

• Model Number: B850 AI TOP

• EAN: 4719331866570

• UPC: 889523045893

• Package Type: Retail

• Warranty: 3 Years

• Web Address: www.gigabyte.com

BIOS

• BIOS:

  • 1 × 256 Mbit flash

  • Use of licensed AMI UEFI BIOS

  • PnP 1.0a

  • DMI 2.7

  • WfM 2.0

  • SM BIOS 2.7

  • ACPI 5.0

Platform

• Chipset: AMD B850

• CPU Interface: Socket AM5

• CPU Support: https://www.gigabyte.com/Motherboard/B850-AI-TOP/support#support-cpu

Memory

• RAM Technology: DDR5 (Dual Channel)

• RAM Slots: 4 × 288-pin

• RAM Speeds: Up to DDR5 8600 (O.C.)

• Max. Memory Support: 256 GB

Expansion Slots

• PCI Express 5.0 x16: 1

• PCI Express 4.0 x16: 1

Storage

• S-ATA 6Gb/s Ports: 4

• RAID Support: RAID 0 / 1 / 10

M.2 Sockets

• 2 × PCIe Gen 5.0 x4

• 1 × PCIe Gen 4.0 x4

Networking

• On-Board LAN:

  • 2 × Marvell AQtion AQC113C 10GbE LAN chips

  • (10 Gbps / 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps)

• Wireless NIC: Wi-Fi 7

• Wireless Technology: 802.11a, b, g, n, ac, ax, be (supporting 2.4 / 5 / 6 GHz carrier frequency bands)

• Bluetooth: v5.4

Audio

• On-Board Audio: Realtek ALC1220 CODEC

Video

• On-Board Video: Processor with integrated graphics is required

Rear I/O Ports

• USB 2.0 Ports: 4

• USB 3.2 Type-C Gen 1 Ports: 4

• USB 3.2 Type-A Gen 2 Ports: 3

• DVI-I Ports: 1

• LAN Ports: 2

• Audio Jacks: 2

• S/PDIF Output: 1

• Other Ports: 2 × SMA antenna connectors (2T2R)

• Buttons: 1 × Q-Flash Plus

Internal Connectivity

• 24-pin ATX Power: 1

• 8-pin ATX Power: 2

USB Headers

• USB 3.2 Gen 1 Headers: 1

• USB 3.2 Gen 2 Headers: 2

• USB 3.2 Gen 2x2 Headers: 1

Other Internal Connectors

• Front Panel Audio Connector: 1

• TPM Headers: 1

Internal Other Ports

• 3 × Addressable RGB Gen2 LED strip headers

• 1 × RGB LED strip header

• 1 × Noise detection header

• 2 × Temperature sensor headers

Internal Buttons

• 1 × Power

• 1 × Reset

Cooling

Thermal Design

• VRM Thermal Armor Advanced with M.2 Thermal Guard

Physical Specifications

• Form Factor: Standard ATX

• Product Width: 244 mm

• Product Length: 305 mm

Package Dimensions

• Package Width: 27.5 cm

• Package Length: 34 cm

• Package Height: 8 cm

Weight

• Gross Weight: 2.69 kg

Features

• Training your own AI on your desk

• DDR5 OC up to 8600 MT/s

• AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors

• Digital twin 16+2+2 phases VRM solution

• Dual Channel DDR5: 4 × DIMMs with AMD EXPO Memory Module Support

• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation

• EZ-Latch Plus: PCIe and M.2 slots with Quick Release and Screwless Design

• EZ-Latch Click: M.2 heatsinks with screwless design

• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW

• New Power Monitor in HWinfo for real-time monitoring on CPU power phases

• Ultra-Fast Storage: 3 × M.2 slots, including 2 × PCIe 5.0 x4

• Efficient Thermal: VRM Thermal Armor Advanced with M.2 Thermal Guard

• Blazing Fast Networks: Dual 10GbE LAN and Wi-Fi 7 and directional Ultra-high gain antenna

• Extended Connectivity: Rear USB-C support up to 40Gb/s, Front USB-C 20Gb/s, HDMI

• High-Res Audio: ALC1220 and High-End Audio Capacitor

• Ultra Durable PCIe Armor: The metal back plate of PCIe x16 slot for enhanced durability

• PCIe UD Slot X: PCIe 5.0 x16 slot with 10× strength for graphics card

Package Contents

• B850 AI TOP Motherboard

• Manual

• Quick Installation Guide

• 1 × Antenna

• 2 × SATA cables

• 1 × Noise detection cable

• 2 × Thermistor cables

• 1 × G Connector

• 1 × M.2 thermal pad

• 2 × Packs of M.2 thick/thin rubber pads

• Motherboard

• AM5

• B850

• Wi-Fi

This motherboard provides a modern platform for high-performance desktop systems, offering advanced memory support, high-speed networking, and multiple storage options suitable for demanding workstation, AI, and enthusiast PC builds.

The Gigabyte B760M Gaming X WiFi6E Gen5 is a Micro ATX motherboard designed for Intel 12th, 13th, and 14th Gen processors on the LGA1700 platform. Built on the Intel B760 chipset with DDR5 memory, Wi-Fi 6E, 2.5GbE LAN, and PCIe 5.0 x16, it delivers strong connectivity and performance for gaming builds in a compact form factor.

UK-based seller
Tracked delivery across the UK
Genuine product from trusted distributors

Key Features

• Intel B760 chipset, LGA1700 socket — supports 12th, 13th and 14th Gen Intel Core processors
• Micro ATX form factor
• DDR5 memory — 4 slots, up to 256GB, up to DDR5-7600 (OC), XMP support
• 1x PCIe 5.0 x16 slot for GPU (EZ-Latch quick release)
• 1x PCIe 3.0 x16 slot
• 2x M.2 slots (PCIe 4.0 x4)
• 4x SATA 6Gb/s ports, RAID 0/1/5/10
• Wi-Fi 6E (2.4/5/6GHz) + Bluetooth 5.3
• Realtek 2.5GbE LAN
• Realtek HD Audio
• 8+1+1 phase VRM power solution
• 3x Addressable RGB headers + 1x RGB header
• Q-Flash Plus (BIOS update without CPU/RAM/GPU)

Product Overview

The Gigabyte B760M Gaming X WiFi6E Gen5 is a compact Micro ATX board suited for mainstream Intel gaming builds. It supports the full range of 12th, 13th, and 14th Gen Intel Core processors, and offers DDR5 memory with XMP support up to DDR5-7600. The PCIe 5.0 x16 slot with EZ-Latch quick release ensures compatibility with current and future GPUs, while two PCIe 4.0 M.2 slots and four SATA ports provide flexible storage options. Wi-Fi 6E and 2.5GbE LAN cover both wireless and wired connectivity needs.

Delivery & Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business.
All hardware is sourced through established distribution partners.
Orders are dispatched within 1–2 business days with tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader — genuine products, real accountability
• Sourced through established distribution partners
• Secure checkout with buyer protection
• Tracked UK delivery, dispatched within 1–2 business days
• Pre- and post-purchase support available

Technical Details

• Chipset: Intel B760
• Socket: LGA1700 (12th, 13th, 14th Gen Intel Core)
• Form Factor: Micro ATX
• Memory: 4x DDR5 DIMM, up to 256GB, up to DDR5-7600 (OC), XMP
• PCIe Slots: 1x PCIe 5.0 x16, 1x PCIe 3.0 x16
• M.2 Slots: 2x PCIe 4.0 x4
• SATA Ports: 4x SATA 6Gb/s (RAID 0/1/5/10)
• LAN: Realtek 2.5GbE (2.5/1Gbps/100Mbps)
• Wireless: Wi-Fi 6E (2.4/5/6GHz), Bluetooth 5.3
• Audio: Realtek HD Audio
• Rear I/O: 5x USB 2.0, 3x USB 3.2 Gen 1 Type-A, 1x HDMI, 1x DisplayPort, 1x LAN, 3x Audio jacks
• Internal Headers: 2x USB 2.0, 2x USB 3.2 Gen 2, 2x Thunderbolt AIC, 3x ARGB, 1x RGB, 1x TPM, 1x S/PDIF
• VRM: 8+1+1 phase
• BIOS: 256Mbit Flash, AMI UEFI BIOS, Q-Flash Plus
• Weight: 1.03kg (net)

Box Contents

• Motherboard
• 2x SATA cables
• 1x Wi-Fi antenna
• M.2 screw and rubber pads
• Manual

Product Identification

Model: B760M GAMING X WIFI6E GEN5
EAN: 4719331872953

The Gigabyte B760 DS3H Gen5 is a full-size ATX motherboard designed for Intel 12th, 13th, and 14th Gen processors on the LGA1700 platform. Built on the Intel B760 chipset with DDR5 memory, PCIe 5.0 x16, and USB-C 20Gbps rear connectivity, it offers solid performance and storage options for mainstream builds without Wi-Fi.

UK-based seller
Tracked delivery across the UK
Genuine product from trusted distributors

Key Features

• Intel B760 chipset, LGA1700 socket — supports 12th, 13th and 14th Gen Intel Core processors
• ATX form factor (305 x 244mm)
• DDR5 memory — 4 slots, up to 256GB, up to DDR5-7600 (OC), XMP support
• 1x PCIe 5.0 x16 slot for GPU (EZ-Latch quick release)
• 2x PCIe 3.0 x1 slots
• 2x M.2 slots (PCIe 4.0 x4)
• 4x SATA 6Gb/s ports, RAID 0/1/5/10
• Realtek 1GbE LAN (no Wi-Fi)
• Realtek HD Audio
• 8+2+1 phase VRM power solution
• 3x Addressable RGB Gen 2 headers + 1x RGB header
• Q-Flash Plus (BIOS update without CPU/RAM/GPU)

Product Overview

The Gigabyte B760 DS3H Gen5 is a straightforward ATX board suited for mainstream Intel builds where Wi-Fi is not required. It supports the full range of 12th, 13th, and 14th Gen Intel Core processors, and offers DDR5 memory with XMP support up to DDR5-7600. The PCIe 5.0 x16 slot with EZ-Latch ensures GPU compatibility, while two PCIe 4.0 M.2 slots and four SATA ports provide flexible storage. Rear connectivity includes USB-C 20Gbps and DisplayPort alongside HDMI.

Delivery & Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business.
All hardware is sourced through established distribution partners.
Orders are dispatched within 1–2 business days with tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader — genuine products, real accountability
• Sourced through established distribution partners
• Secure checkout with buyer protection
• Tracked UK delivery, dispatched within 1–2 business days
• Pre- and post-purchase support available

Technical Details

• Chipset: Intel B760
• Socket: LGA1700 (12th, 13th, 14th Gen Intel Core)
• Form Factor: ATX (305 x 244mm)
• Memory: 4x DDR5 DIMM, up to 256GB, up to DDR5-7600 (OC), XMP
• PCIe Slots: 1x PCIe 5.0 x16, 2x PCIe 3.0 x1
• M.2 Slots: 2x PCIe 4.0 x4
• SATA Ports: 4x SATA 6Gb/s (RAID 0/1/5/10)
• LAN: Realtek 1GbE (1Gbps/100Mbps/10Mbps)
• Wireless: None
• Audio: Realtek HD Audio
• Rear I/O: 1x PS/2, 4x USB 2.0, 1x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2x2 Type-C, 1x HDMI, 1x DisplayPort, 1x LAN, 3x Audio jacks
• Internal Headers: 2x USB 2.0, 2x USB 3.2 Gen 1, 3x ARGB Gen 2, 1x RGB, 1x TPM, 1x S/PDIF, 1x COM
• VRM: 8+2+1 phase
• BIOS: 128Mbit Flash, AMI UEFI BIOS, Q-Flash Plus
• Net Weight: 0.90kg

Box Contents

• Motherboard
• 2x SATA cables
• M.2 screws and rubber pads
• I/O Shield
• Manual

Product Identification

Model: B760 DS3H GEN5
EAN: 4719331872892

The MSI PRO A620AM-G EVO WIFI is a Micro ATX motherboard designed for AMD Ryzen 7000, 8000, and 9000 Series processors on the AM5 platform. Built on the AMD A620 chipset with DDR5 memory, Wi-Fi 6E, 2.5GbE LAN, and dual PCIe 4.0 M.2 slots, it offers a well-rounded feature set for budget-friendly AMD builds.

UK-based seller
Tracked delivery across the UK
Genuine product from trusted distributors

Key Features

• AMD A620 chipset, AM5 socket — supports Ryzen 7000, 8000 and 9000 Series processors
• Micro ATX form factor (243.84 x 226mm)
• DDR5 memory — 2 slots, up to 128GB, up to DDR5-7200+ (OC)
• 1x PCIe 4.0 x16 slot for GPU (Steel Armor reinforced)
• 1x PCIe 3.0 x1 slot
• 2x M.2 slots (PCIe 4.0 x4)
• 4x SATA 6Gb/s ports, RAID 0/1/10
• Wi-Fi 6E (2.4/5/6GHz, up to 2.4Gbps) + Bluetooth 5.3
• Realtek RTL8125D 2.5GbE LAN
• Realtek ALC897 HD Audio
• 3x Addressable RGB V2 headers + 1x RGB header
• Flash BIOS button + Clear CMOS button on rear panel

Product Overview

The MSI PRO A620AM-G EVO WIFI is a compact and affordable Micro ATX board suited for entry-level AMD Ryzen builds. It supports the full range of Ryzen 7000, 8000, and 9000 Series processors on the AM5 platform, and offers DDR5 memory with OC support up to DDR5-7200+. Two PCIe 4.0 M.2 slots and four SATA ports provide flexible storage options, while Wi-Fi 6E and 2.5GbE LAN cover both wireless and wired connectivity. The rear panel Flash BIOS button enables BIOS updates without a CPU installed.

Delivery & Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business.
All hardware is sourced through established distribution partners.
Orders are dispatched within 1–2 business days with tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader — genuine products, real accountability
• Sourced through established distribution partners
• Secure checkout with buyer protection
• Tracked UK delivery, dispatched within 1–2 business days
• Pre- and post-purchase support available

Technical Details

• Chipset: AMD A620
• Socket: AM5 (Ryzen 7000 / 8000 / 9000 Series)
• Form Factor: Micro ATX (243.84 x 226mm)
• Memory: 2x DDR5 DIMM, up to 128GB, up to DDR5-7200+ (OC)
• PCIe Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
• M.2 Slots: 2x PCIe 4.0 x4
• SATA Ports: 4x SATA 6Gb/s (RAID 0/1/10)
• LAN: Realtek RTL8125D 2.5GbE
• Wireless: Wi-Fi 6E (2.4/5/6GHz, up to 2.4Gbps), Bluetooth 5.3
• Audio: Realtek ALC897 HD Audio
• Rear I/O: 2x USB 2.0, 4x USB 5Gbps Type-A, 1x HDMI, 1x DisplayPort, 1x LAN, 3x Audio jacks, Wi-Fi antenna connectors, 1x Clear CMOS, 1x Flash BIOS
• Internal Headers: 2x USB 2.0, 2x USB 5Gbps, 3x ARGB V2, 1x RGB, 1x TPM, 1x COM
• Weight: 0.77kg (net)

Box Contents

• Motherboard
• 1x SATA cable
• 1x EZ Wi-Fi antenna
• 2x EZ M.2 Clip II + remover
• I/O Shield
• Quick Installation Guide

Product Identification

Model: PRO A620AM-G EVO WIFI
EAN: 4711377417501

The MSI MAG B850 Gaming Plus Max WiFi is a full-size ATX gaming motherboard designed for AMD Ryzen 7000, 8000, and 9000 Series processors on the AM5 platform. Built on the AMD B850 chipset with DDR5 memory, Wi-Fi 7, 5GbE LAN, PCIe 5.0 GPU and M.2 slots, and dual USB-C 10Gbps rear ports, it delivers premium gaming connectivity and performance.

UK-based seller
Tracked delivery across the UK
Genuine product from trusted distributors

Key Features

• AMD B850 chipset, AM5 socket — supports Ryzen 7000, 8000 and 9000 Series processors
• ATX form factor (304.8 x 243.84mm)
• DDR5 memory — 4 slots, up to 256GB, up to DDR5-8200 (OC), AMD EXPO support
• 1x PCIe 5.0 x16 slot for GPU
• 1x PCIe 4.0 x4 + 2x PCIe 3.0 x1 expansion slots
• 1x PCIe 5.0 x4 M.2 + 1x PCIe 4.0 x4 M.2 + 1x PCIe 4.0 x2 M.2 (3 M.2 slots total)
• 4x SATA 6Gb/s ports, RAID 0/1
• Wi-Fi 7 (2.4/5/6GHz, up to 2.9Gbps) + Bluetooth 5.4
• Realtek 8126 5GbE LAN
• Realtek ALC897 7.1-Channel HD Audio
• Dual 8-pin CPU power connectors
• 3x Addressable RGB V2 headers + 1x RGB header
• EZ Debug LED, EZ Memory Detection LED
• Flash BIOS button + Clear CMOS button on rear panel

Product Overview

The MSI MAG B850 Gaming Plus Max WiFi is a well-equipped gaming ATX board for AMD Ryzen builds. It features a PCIe 5.0 x16 GPU slot and PCIe 5.0 M.2 slot for maximum bandwidth, alongside Wi-Fi 7 and 5GbE LAN for top-tier connectivity. The dual USB-C 10Gbps rear ports and EZ Debug LEDs make it practical for both builders and enthusiasts. The rear Flash BIOS button enables BIOS updates without a CPU installed.

Delivery & Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business.
All hardware is sourced through established distribution partners.
Orders are dispatched within 1–2 business days with tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader — genuine products, real accountability
• Sourced through established distribution partners
• Secure checkout with buyer protection
• Tracked UK delivery, dispatched within 1–2 business days
• Pre- and post-purchase support available

Technical Details

• Chipset: AMD B850
• Socket: AM5 (Ryzen 7000 / 8000 / 9000 Series)
• Form Factor: ATX (304.8 x 243.84mm)
• Memory: 4x DDR5 DIMM, up to 256GB, up to DDR5-8200 (OC), AMD EXPO
• PCIe Slots: 1x PCIe 5.0 x16 (GPU), 1x PCIe 4.0 x4, 2x PCIe 3.0 x1
• M.2 Slots: 1x PCIe 5.0 x4, 1x PCIe 4.0 x4, 1x PCIe 4.0 x2
• SATA Ports: 4x SATA 6Gb/s (RAID 0/1)
• LAN: Realtek 8126 5GbE
• Wireless: Wi-Fi 7 (2.4/5/6GHz, up to 2.9Gbps), Bluetooth 5.4
• Audio: Realtek ALC897 7.1-Channel HD Audio
• Rear I/O: 4x USB 2.0, 1x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 2x USB 10Gbps Type-C, 1x DisplayPort, 1x LAN, 1x S/PDIF, Wi-Fi antenna, 1x Clear CMOS, 1x Flash BIOS
• Internal Headers: 2x USB 2.0, 3x USB 5Gbps, 3x ARGB V2, 1x RGB, 1x TPM, 1x COM
• CPU Power: 2x 8-pin ATX
• Weight: 1.26kg (net)

Box Contents

• Motherboard
• 1x SATA cable
• 1x EZ Wi-Fi antenna
• EZ M.2 Clip II + remover
• 1-to-2 EZ Conn-Cable
• Cable sticker
• Quick Installation Guide

Product Identification

Model: MAG B850 GAMING PLUS MAX WIFI
EAN: 4711377410465

The MSI MAG B850 Tomahawk Max WiFi II is a premium full-size ATX gaming motherboard designed for AMD Ryzen 7000, 8000, and 9000 Series processors on the AM5 platform. Built on the AMD B850 chipset with DDR5 memory up to DDR5-8400, Wi-Fi 7 (up to 5.8Gbps), 5GbE LAN, four M.2 slots (including two PCIe 5.0), and a 14+2+1 phase VRM on an 8-layer PCB, it delivers flagship-level performance and connectivity.

UK-based seller
Tracked delivery across the UK
Genuine product from trusted distributors

Key Features

• AMD B850 chipset, AM5 socket — supports Ryzen 7000, 8000 and 9000 Series processors
• ATX form factor (304.8 x 243.84mm)
• DDR5 memory — 4 slots, up to 256GB, up to DDR5-8400 (OC), AMD EXPO support
• 1x PCIe 5.0 x16 slot for GPU
• 1x PCIe 4.0 x4 + 1x PCIe 3.0 x1 expansion slots
• 2x PCIe 5.0 x4 M.2 + 1x PCIe 4.0 x4 M.2 + 1x PCIe 4.0 x2 M.2 (4 M.2 slots total)
• 4x SATA 6Gb/s ports
• Wi-Fi 7 (2.4/5/6GHz, 320MHz, up to 5.8Gbps) + Bluetooth 5.4
• Realtek 8126VB 5GbE LAN
• Realtek ALC4080 7.1-Channel HD Audio
• 14+2+1 phase VRM, dual 8-pin CPU power, 8-layer PCB (2oz copper)
• 3x Addressable RGB V2 headers + 1x RGB header
• EZ Debug LED, EZ Memory Detection LED
• Flash BIOS button + Clear CMOS button on rear panel

Product Overview

The MSI MAG B850 Tomahawk Max WiFi II is a top-tier B850 ATX board for demanding AMD Ryzen builds. Its 14+2+1 phase VRM with dual 8-pin CPU power and 8-layer PCB ensures exceptional power delivery stability. Four M.2 slots — two running at PCIe 5.0 speeds — provide maximum storage bandwidth. Wi-Fi 7 with 320MHz channel support delivers up to 5.8Gbps wireless throughput, while 5GbE LAN covers wired connectivity. Three rear USB-C 10Gbps ports and the EZ M.2 Shield Frozr II heatsink system round out a feature set that punches well above the B850 price point.

Delivery & Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business.
All hardware is sourced through established distribution partners.
Orders are dispatched within 1–2 business days with tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader — genuine products, real accountability
• Sourced through established distribution partners
• Secure checkout with buyer protection
• Tracked UK delivery, dispatched within 1–2 business days
• Pre- and post-purchase support available

Technical Details

• Chipset: AMD B850
• Socket: AM5 (Ryzen 7000 / 8000 / 9000 Series)
• Form Factor: ATX (304.8 x 243.84mm)
• Memory: 4x DDR5 DIMM, up to 256GB, up to DDR5-8400 (OC), AMD EXPO
• PCIe Slots: 1x PCIe 5.0 x16 (GPU), 1x PCIe 4.0 x4, 1x PCIe 3.0 x1
• M.2 Slots: 2x PCIe 5.0 x4, 1x PCIe 4.0 x4, 1x PCIe 4.0 x2
• SATA Ports: 4x SATA 6Gb/s
• LAN: Realtek 8126VB 5GbE
• Wireless: Wi-Fi 7 (2.4/5/6GHz, 320MHz, up to 5.8Gbps), Bluetooth 5.4
• Audio: Realtek ALC4080 7.1-Channel HD Audio
• Rear I/O: 4x USB 2.0, 1x USB 5Gbps Type-A, 2x USB 10Gbps Type-A, 3x USB 10Gbps Type-C, 1x HDMI 2.1, 1x LAN, Wi-Fi antenna, 1x Clear CMOS, 1x Flash BIOS
• Internal Headers: 2x USB 2.0, 2x USB 5Gbps, 1x USB 20Gbps, 3x ARGB V2, 1x RGB, 1x TPM
• VRM: 14+2+1 phase, dual 8-pin CPU power, 8-layer PCB
• Weight: 1.78kg (net)

Box Contents

• Motherboard
• 1x SATA cable
• 1x EZ Wi-Fi antenna
• EZ M.2 Clips II + remover
• 1-to-3 EZ Conn-Cable
• Cable sticker
• Quick Installation Guide

Product Identification

Model: MAG B850 TOMAHAWK MAX WIFI II
EAN: 4711377424011

The MSI PRO X870E-S EVO WIFI is a full-size ATX motherboard designed for AMD Ryzen 7000, 8000, and 9000 Series processors on the AM5 platform. Built on the flagship AMD X870E chipset with DDR5 memory, three M.2 slots, Wi-Fi 7, 5GbE LAN, USB4 40Gbps, and a 12+2+1 phase VRM, it delivers top-tier performance and connectivity for demanding builds.

UK-based seller
Tracked delivery across the UK
Genuine product from trusted distributors

Key Features

• AMD X870E chipset, AM5 socket — supports Ryzen 7000, 8000 and 9000 Series processors
• ATX form factor (304.8 x 243.84mm)
• DDR5 memory — 4 slots, up to 256GB, up to DDR5-8200 (OC), AMD EXPO support
• 1x PCIe 5.0 x16 slot for GPU
• 1x PCIe 4.0 x4 + 1x PCIe 3.0 x1 expansion slots
• 1x PCIe 5.0 x4 M.2 + 2x PCIe 4.0 x4 M.2 (3 M.2 slots total)
• 4x SATA 6Gb/s ports, RAID 0/1/5/10
• Wi-Fi 7 (2.4/5/6GHz, up to 2.9Gbps) + Bluetooth 5.4
• Realtek 8126VB 5GbE LAN
• Realtek ALC897 7.1-Channel HD Audio
• 12+2+1 phase VRM, dual 8-pin CPU power, 6-layer PCB (2oz copper)
• USB4 40Gbps Type-C (supports DisplayPort 1.4, 4K 120Hz) on rear panel
• 3x Addressable RGB V2 headers + 1x RGB header
• Flash BIOS button + Clear CMOS button on rear panel

Product Overview

The MSI PRO X870E-S EVO WIFI is a high-end ATX board built on AMD's flagship X870E chipset, offering a comprehensive feature set for Ryzen AM5 builds. One PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots provide fast and flexible NVMe storage, while the PCIe 5.0 x16 GPU slot ensures full bandwidth for current and next-generation graphics cards. USB4 40Gbps on the rear panel enables Thunderbolt-compatible device connectivity and DisplayPort 1.4 output. Wi-Fi 7 and 5GbE LAN deliver exceptional wired and wireless networking, and the 12+2+1 phase VRM with dual 8-pin CPU power ensures stable delivery for the most demanding processors.

Delivery & Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business.
All hardware is sourced through established distribution partners.
Orders are dispatched within 1–2 business days with tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader — genuine products, real accountability
• Sourced through established distribution partners
• Secure checkout with buyer protection
• Tracked UK delivery, dispatched within 1–2 business days
• Pre- and post-purchase support available

Technical Details

• Chipset: AMD X870E
• Socket: AM5 (Ryzen 7000 / 8000 / 9000 Series)
• Form Factor: ATX (304.8 x 243.84mm)
• Memory: 4x DDR5 DIMM, up to 256GB, up to DDR5-8200 (OC), AMD EXPO
• PCIe Slots: 1x PCIe 5.0 x16 (GPU), 1x PCIe 4.0 x4, 1x PCIe 3.0 x1
• M.2 Slots: 1x PCIe 5.0 x4, 2x PCIe 4.0 x4
• SATA Ports: 4x SATA 6Gb/s (RAID 0/1/5/10)
• LAN: Realtek 8126VB 5GbE
• Wireless: Wi-Fi 7 (2.4/5/6GHz, up to 2.9Gbps), Bluetooth 5.4
• Audio: Realtek ALC897 7.1-Channel HD Audio
• Rear I/O: 4x USB 2.0, 2x USB 5Gbps Type-A, 2x USB 10Gbps Type-A, 1x USB 20Gbps Type-C, 1x USB4 40Gbps Type-C, 1x HDMI 2.1, 1x LAN, 3x Audio jacks, Wi-Fi antenna, 1x Clear CMOS, 1x Flash BIOS
• Internal Headers: 3x USB 2.0, 2x USB 5Gbps, 1x USB 10Gbps, 3x ARGB V2, 1x RGB, 1x TPM
• VRM: 12+2+1 phase, dual 8-pin CPU power, 6-layer PCB
• Weight: 1.42kg (net)

Box Contents

• Motherboard
• 2x SATA cables
• 1x EZ Wi-Fi antenna
• 3x EZ M.2 Clip II + remover
• 1-to-2 EZ Conn-Cable
• Quick Installation Guide

Product Identification

Model: PRO X870E-S EVO WIFI
EAN: 4711377412230
