Gigabyte Z890 UD Wi-Fi 6E Ultra Durable, Intel LGA1851 Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Sockets, 2.5GbE LAN, Wi-Fi 6E, 1x DisplayPort, 1x USB4 Type-C, 3 Year Warranty

• Socket: 1851
• CPU Compatibility: Intel Ultra
• Chipset: Intel Z890
• Form Factor: ATX
• Memory Slots: DDR5 - 4 Slots
• M.2 Compatibility: PCIe 5 / PCIe 4 / PCIe 3
• Wi-Fi: Yes

Key Features

Supports Intel Core Ultra processors (Series 2) on LGA1851
Digital twin 12+1+2 phases VRM solution
DDR5 overclocking up to 8800 MT/s with XMP support
AORUS AI Snatch: Auto-Overclocking Software by AI model
AI Perfdrive: Optimised and customised BIOS preset profiles
3x M.2 slots including 1x PCIe 5.0 x4
Wi-Fi 6E 802.11ax with Bluetooth 5.3
2.5GbE LAN
USB4 Type-C with DP-Alt (40Gbps)
EZ-Latch: PCIe x16 slot with quick release design
VRM Thermal Armour and M.2 Thermal Guard

Infinite Memory Performance
DDR5 overclocking up to 8800 MT/s with advanced compatibility using CUDIMM and XMP memory module support.

Digital Twin VRM Design
The best VRM design built with the highest quality components, delivering enhanced system performance with ultimate hardware scalability.

Future Connectivity
USB4 Type-C provides transfer speeds up to 40Gbps with DisplayPort Alt Mode support, ideal for video editing, large file transfers, and data-intensive tasks.

Wi-Fi 6E 802.11ax
The latest wireless solution with a dedicated 6GHz band enables gigabit wireless performance, smooth video streaming, and speeds up to 2.4Gbps. Bluetooth 5.3 provides extended range and faster transmission.

PCIe 5.0 Ready
Featuring a PCIe 5.0 x16 slot and PCIe 5.0 M.2 support, the Z890 UD is ready for the next generation of discrete graphics and storage.

Specification

CPU
LGA1851 socket: Supports Intel Core Ultra processors (Series 2)

Chipset
Intel Z890 Express

Memory
4x DDR5 DIMM slots, up to 256GB (64GB single DIMM)
Dual channel, DDR5-5600 native, up to DDR5-8800 (O.C.)
Supports XMP, CUDIMM, ECC Un-buffered (non-ECC mode)

Expansion Slots
1x PCIe 5.0 x16 (CPU, PCIEX16)
2x PCIe 4.0 x16 (chipset, running at x4)
1x PCIe 4.0 x16 (chipset, running at x1)

Storage
1x M.2 PCIe 5.0 x4 (M2A_CPU, up to 25110)
1x M.2 PCIe 4.0 x4 (M2B_CPU, up to 25110)
1x M.2 PCIe 4.0 x4 / SATA (M2M_SB, up to 25110)
4x SATA 6Gb/s
RAID 0/1/5/10 for NVMe and SATA

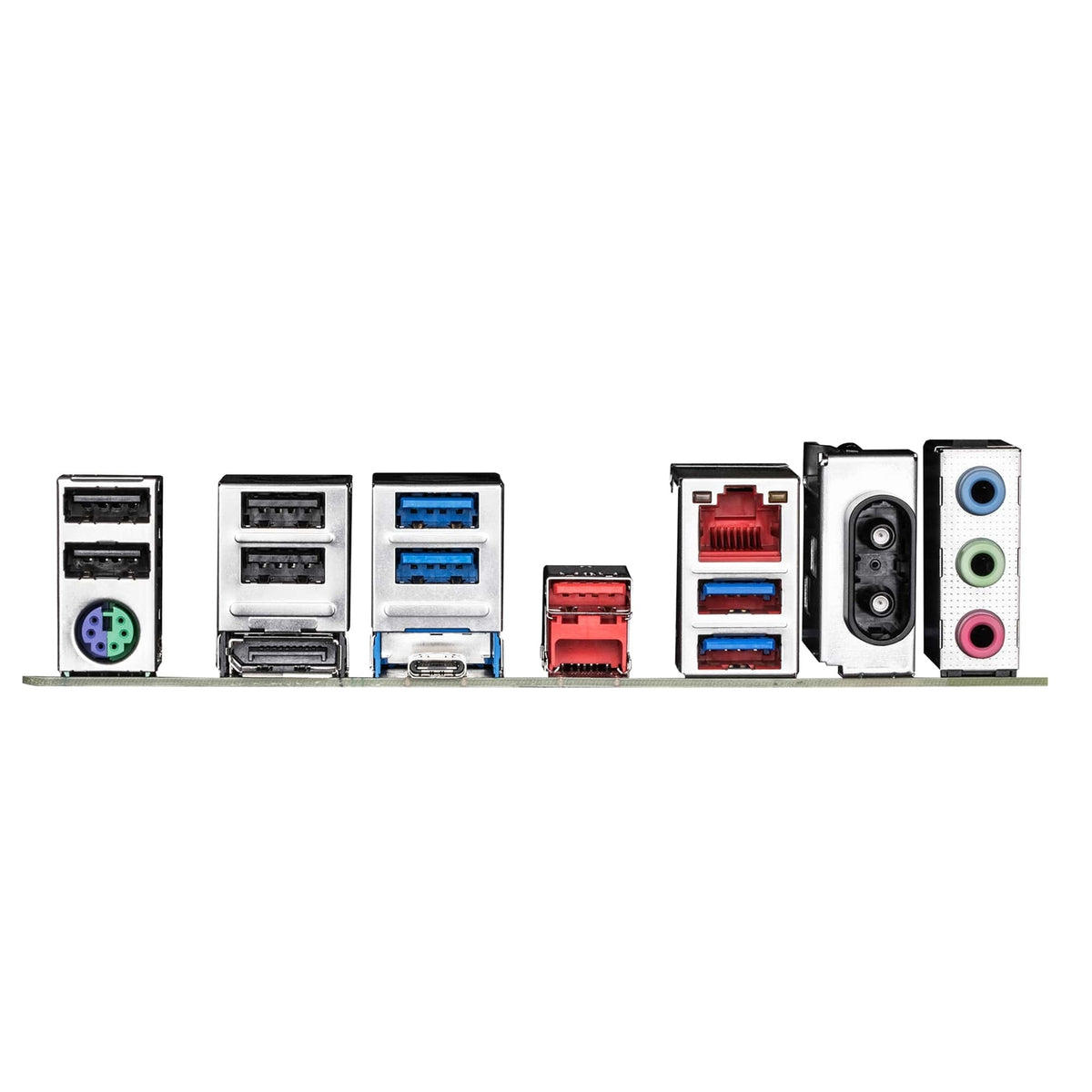

USB (Back Panel)
1x USB4 Type-C (40Gbps, DP-Alt)
1x USB 3.2 Gen 2 Type-A (red, 10Gbps)
4x USB 3.2 Gen 1 Type-A (5Gbps)
4x USB 2.0 Type-A

Display Output
1x DisplayPort 2.1 (up to 3840x2160 @ 144Hz)
1x USB4 Type-C with DP-Alt (up to 3840x2160 @ 144Hz)

LAN
Realtek 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps)

Wireless
Wi-Fi 6E 802.11ax (2.4 / 5 / 6 GHz, up to 2.4Gbps)
Bluetooth 5.3

Audio
Realtek Audio CODEC, High Definition Audio, up to 7.1-channel

Form Factor
ATX (305mm x 244mm)

OS Support
Windows 11 64-bit

Warranty
3 Years GIGABYTE Manufacturer Warranty
