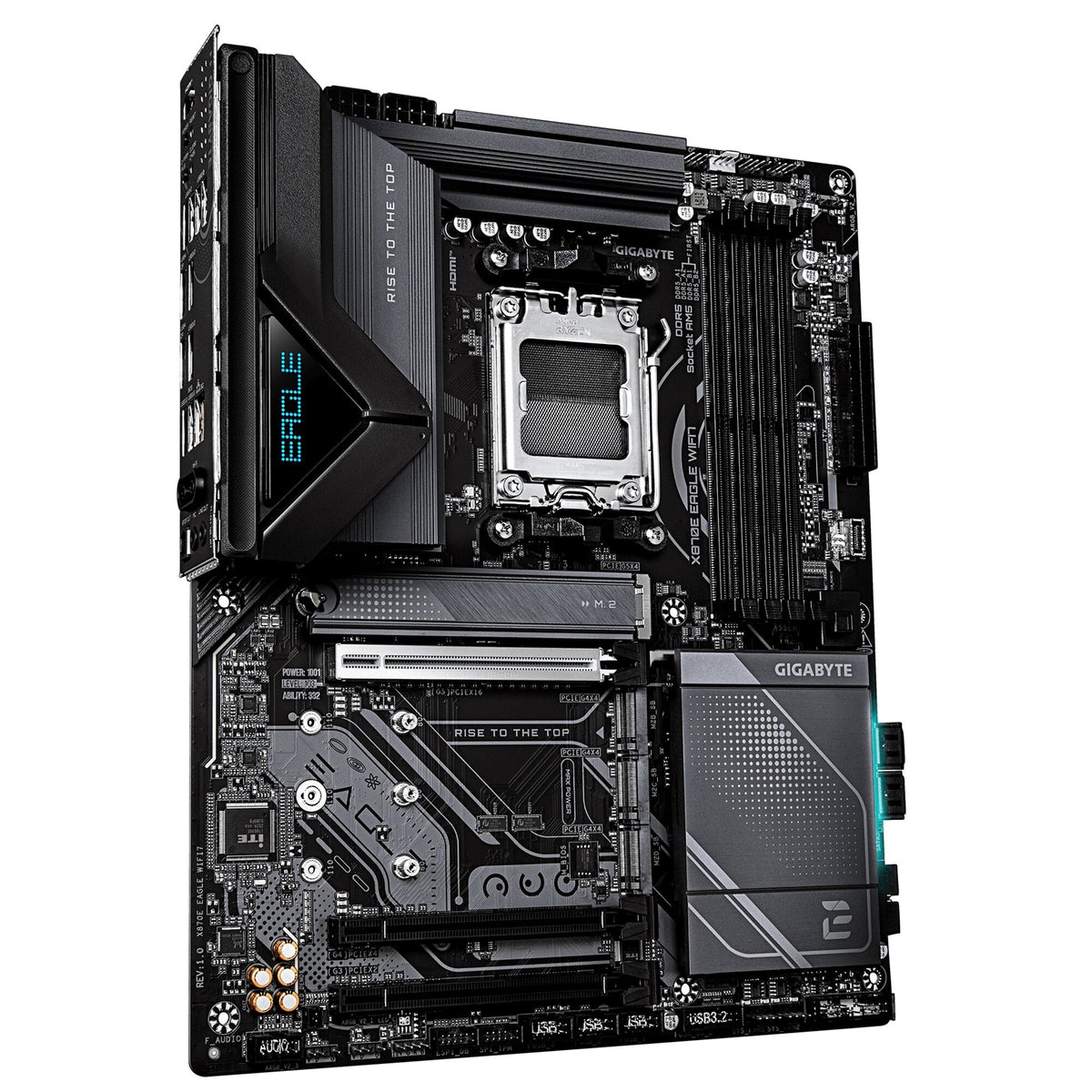

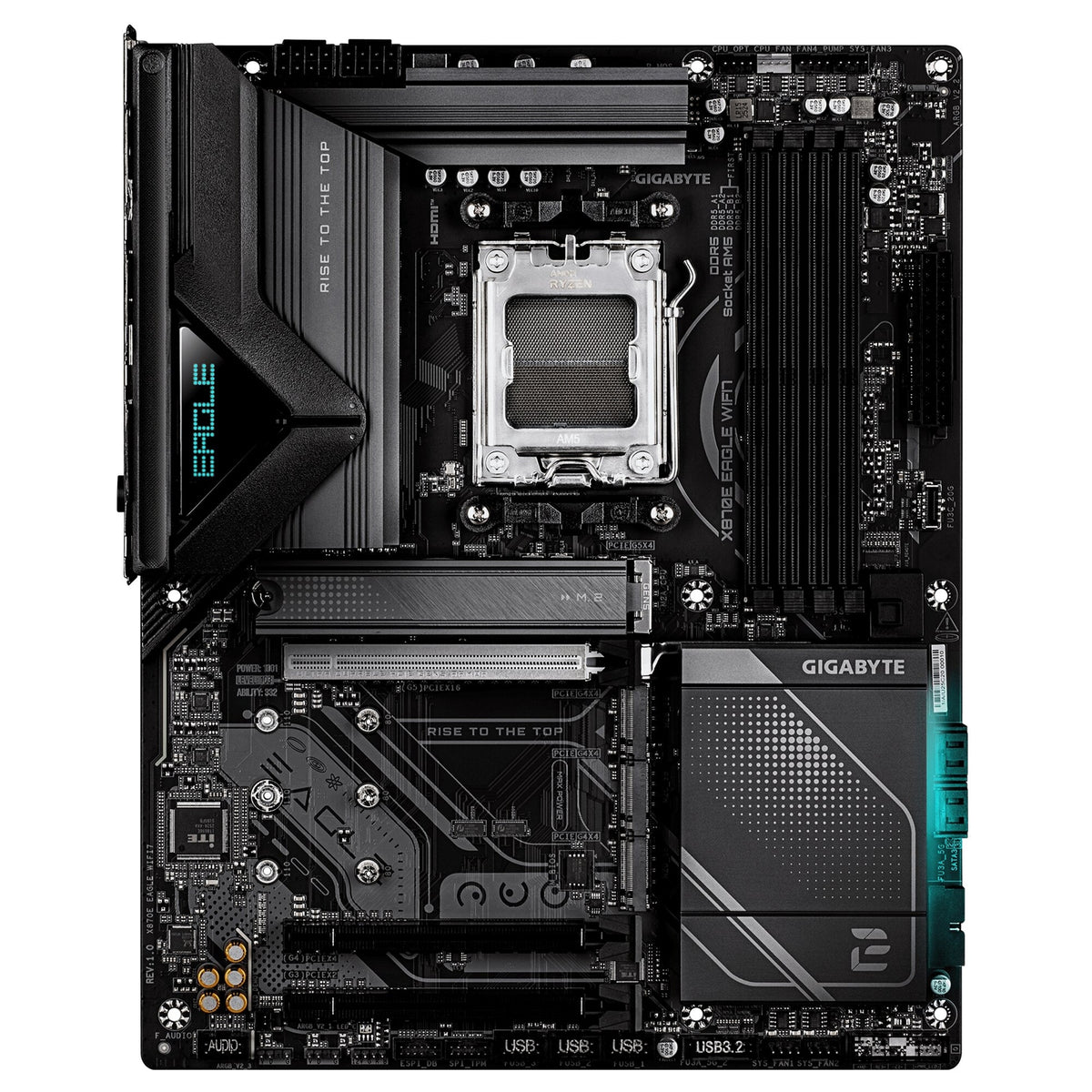

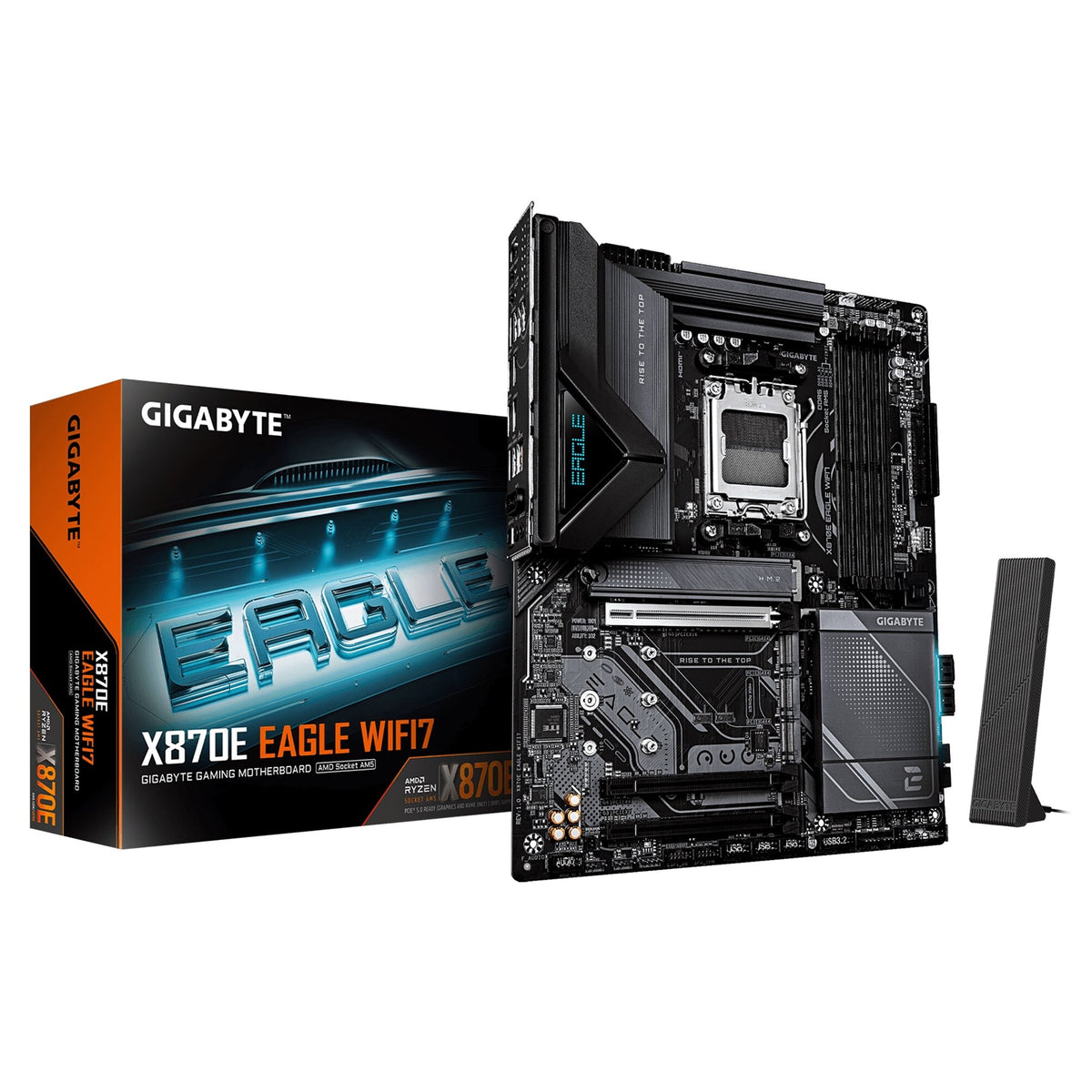

Gigabyte X870E EAGLE WIFI7, AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 4x M.2 Sockets, 5GbE LAN, Wi-Fi 7, 1x HDMI, 2x USB4 Type-C, 3 Year Warranty

• Socket: AM5
• CPU Compatibility: AMD Ryzen 9000/8000/7000
• Chipset: AMD X870E
• Form Factor: ATX
• Memory Slots: DDR5 - 4 Slots
• M.2 Compatibility: PCIe 5 / PCIe 4 / PCIe 3
• Wi-Fi: Yes

X870E EAGLE WIFI7
A premium ATX motherboard on the AMD X870E chipset, delivering 5GbE wired networking, Wi-Fi 7, dual USB4 Type-C, and a robust 16+2+2 phase VRM for demanding AMD AM5 builds.

Key Features
AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
AMD X870E chipset — premium platform with full PCIe 5.0 support
Digital twin 16+2+2 phase VRM solution
4x DDR5 DIMM slots with AMD EXPO and XMP support, up to DDR5-8200 (O.C.)
4x M.2 slots including 1x PCIe 5.0 x4
Realtek 5GbE LAN (5 / 2.5 / 1 Gbps / 100 Mbps)
Realtek Wi-Fi 7 RTL8922AE (802.11be, 2.4 / 5 / 6 GHz, up to 160MHz) with Bluetooth 5.4
2x USB4 Type-C with DP-Alt (40Gbps each)
Realtek ALC1220 audio with S/PDIF Out
EZ-Latch Plus: PCIe and M.2 slots with quick release and screwless design
EZ-Latch Click: M.2 heatsinks with screwless design
VRM Thermal Armour and M.2 Thermal Guard

5GbE LAN
Realtek 5GbE provides up to 5Gbps wired networking — twice the bandwidth of standard 2.5GbE — ideal for NAS, high-speed file transfers, and content creation workflows.

Dual USB4 Type-C
Two USB4 Type-C ports provide up to 40Gbps each with DisplayPort Alt Mode support, ideal for high-resolution displays, video editing, and large file transfers.

Wi-Fi 7 802.11be
Wi-Fi 7 supports 2.4 / 5 / 6 GHz with up to 160MHz channel width, delivering exceptional bandwidth and minimal latency. Bluetooth 5.4 included.

Specification

CPU
AMD Socket AM5
Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors

Chipset
AMD X870E

Memory
4x DDR5 DIMM slots, up to 256GB (64GB single DIMM)
Dual channel, DDR5-4800 native, up to DDR5-8200 (O.C.)
Supports AMD EXPO and XMP

Expansion Slots
1x PCIe 5.0 x16 (CPU) — Ryzen 9000/7000; PCIe 4.0 x8/x4 — Ryzen 8000
1x PCIe 4.0 x16 (chipset, running at x4) — shares bandwidth with M2D_SB; slot unavailable when M2D_SB is occupied
1x PCIe 3.0 x16 (chipset, running at x2)

Storage
1x M.2 PCIe 5.0 x4 (M2A_CPU, up to 25110)
3x M.2 PCIe 4.0 x4 (M2B/C/D_SB, chipset, up to 22110)
4x SATA 6Gb/s
RAID 0/1/5/10 for NVMe (RAID 5: Ryzen 9000 only); RAID 0/1/10 for SATA

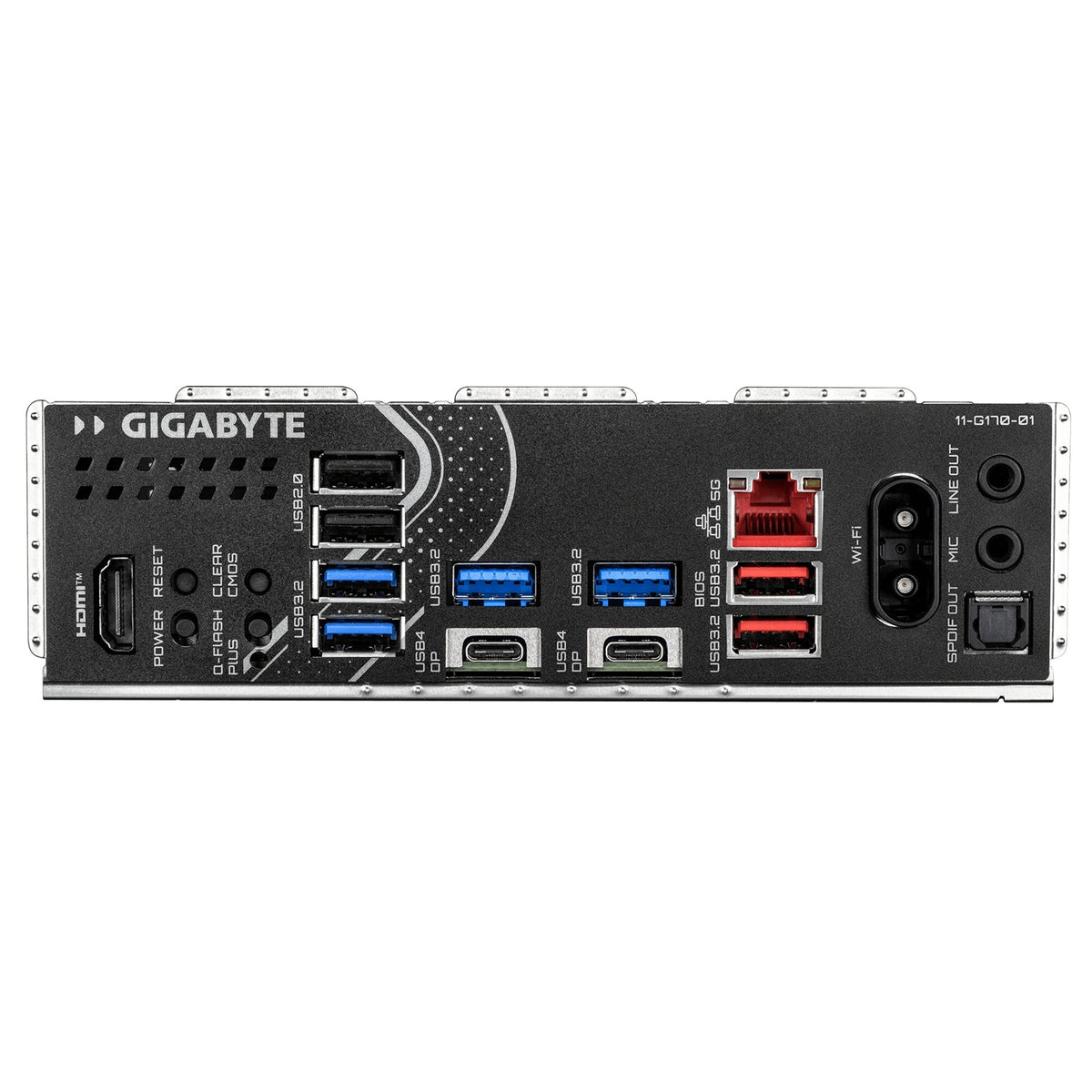

USB (Back Panel)
2x USB4 Type-C (40Gbps, DP-Alt)
2x USB 3.2 Gen 2 Type-A (red, 10Gbps)
4x USB 3.2 Gen 1 Type-A (5Gbps)
2x USB 2.0 Type-A

Display Output
1x HDMI 2.1 (up to 4096x2160 @ 60Hz)
2x USB4 Type-C with DP-Alt (up to 3840x2160 @ 240Hz)

LAN
Realtek 5GbE (5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps)

Wireless
Realtek Wi-Fi 7 RTL8922AE, 802.11be (2.4 / 5 / 6 GHz, up to 160MHz)
Bluetooth 5.4

Audio
Realtek ALC1220, High Definition Audio, up to 7.1-channel, S/PDIF Out

Form Factor
ATX (305mm x 244mm)

OS Support
Windows 11 64-bit

Warranty
3 Years GIGABYTE Manufacturer Warranty
