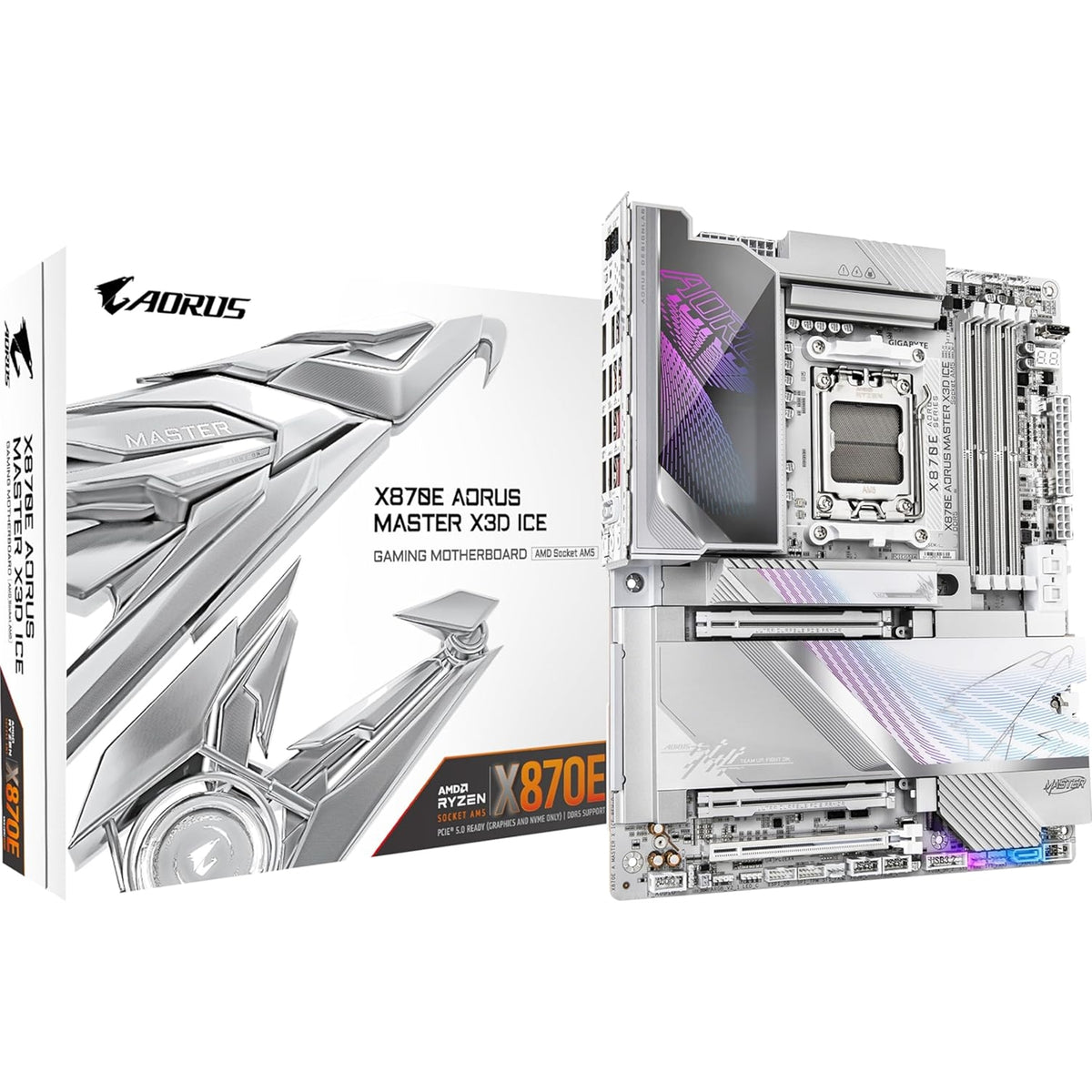

Gigabyte X870E AORUS MASTER X3D ICE, AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 5x M.2 Sockets, Dual LAN 5GbE+10GbE, Wi-Fi 7, 2x USB4 Type-C, 3 Year Warranty

• Socket: AM5
• CPU Compatibility: AMD Ryzen 9000/8000/7000
• Chipset: AMD X870E
• Form Factor: ATX
• Memory Slots: DDR5 - 4 Slots
• M.2 Compatibility: PCIe 5 / PCIe 4 / PCIe 3
• Wi-Fi: Yes

X870E AORUS MASTER X3D ICE
A flagship white ICE edition AMD X870E ATX motherboard featuring an 18+2+2 phase VRM, X3D Turbo Mode 2.0, dual independent LAN (5GbE + 10GbE), five M.2 slots including two PCIe 5.0 x4, MediaTek Wi-Fi 7 with 320MHz channel width, dual USB4 Type-C, front-panel 65W USB-C fast charge, and ESS ES9118 DAC with DTS:X Ultra audio.

Key Features
AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
AMD X870E chipset — premium platform with full PCIe 5.0 support
X3D Turbo Mode 2.0: AI-driven performance optimisation for AMD 3D V-Cache processors
Digital twin 18+2+2 phase VRM solution
4x DDR5 DIMM slots with AMD EXPO and XMP support, up to DDR5-9000 (O.C.)
5x M.2 slots including 2x PCIe 5.0 x4 (CPU-direct)
Dual independent LAN: Realtek 5GbE (LAN1) + Realtek 10GbE (LAN2)
MediaTek Wi-Fi 7 MT7927 (802.11be, 320MHz) with Bluetooth 5.4
2x USB4 Type-C with DP-Alt (40Gbps each)
1x USB 3.2 Gen 2x2 Type-C + 1x USB 3.2 Gen 2 Type-C on back panel
Front USB-C internal header with 65W PD 3.0 / QC 4+ fast charging support
PCIe 5.0 x8 second CPU slot (PCIEX8) for additional GPU or NVMe SSD
PCB Thermal Plate: 14% thermal improvement and reinforced stability
M.2 EZ-Flex: high-efficiency heat dissipation with flexible patented baseplate
PCIe EZ-Latch Plus Duo: screwless quick release on dual PCIe slots
Sensor Panel Link: Front HDMI for in-chassis display panels
ESS ES9118 DAC + DTS:X Ultra + Realtek ALC1220 — premium rear audio output
DriverBIOS: Wi-Fi driver pre-installed for out-of-box network access

Dual LAN: 5GbE + 10GbE
Two independent Realtek LAN ports — a 5GbE port and a 10GbE port — provide maximum networking flexibility for NAS connectivity, link aggregation, isolated gaming and workstation traffic, or high-throughput content creation environments.

X3D Turbo Mode 2.0
AI-driven optimisation unlocks the full performance potential of AMD Ryzen processors with 3D V-Cache technology, delivering exceptional gaming and computational performance with minimal user input.

Wi-Fi 7 with 320MHz Channel Width
MediaTek Wi-Fi 7 (802.11be) supports 2.4 / 5 / 6 GHz with 320MHz channel width for maximum wireless throughput and minimal latency. Bluetooth 5.4 included.

ESS ES9118 DAC + DTS:X Ultra
A rear-panel ESS SABRE Hi-Fi ES9118 DAC chip paired with Realtek ALC1220 and DTS:X Ultra delivers audiophile-grade sound quality for music, gaming, and content creation.

Specification

CPU
AMD Socket AM5
Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors

Chipset
AMD X870E

Memory
4x DDR5 DIMM slots, up to 256GB (64GB single DIMM)
Dual channel, DDR5-4800 native, up to DDR5-9000 (O.C.)
Supports AMD EXPO and XMP

Expansion Slots
1x PCIe 5.0 x16 (CPU, PCIEX16) — Ryzen 9000/7000; PCIe 4.0 x8/x4 — Ryzen 8000
1x PCIe 5.0 x8 (CPU, PCIEX8) — Ryzen 9000/7000 only
1x PCIe 4.0 x16 (chipset, running at x4, PCIEX4)

Storage
1x M.2 PCIe 5.0 x4 (M2A_CPU, type 2580/2280) — Ryzen 9000/7000: PCIe 5.0; Ryzen 8000: PCIe 4.0
1x M.2 PCIe 5.0 x4 (M2B_CPU, type 2280) — Ryzen 9000/7000 only
2x M.2 PCIe 4.0 x4 (M2C/D_SB, chipset, type 2280)
1x M.2 PCIe 4.0 x2 (M2E_SB, chipset, type 2280) — half-bandwidth slot
2x SATA 6Gb/s
RAID 0/1/5/10 for NVMe (RAID 5: Ryzen 9000 only); RAID 0/1 for SATA

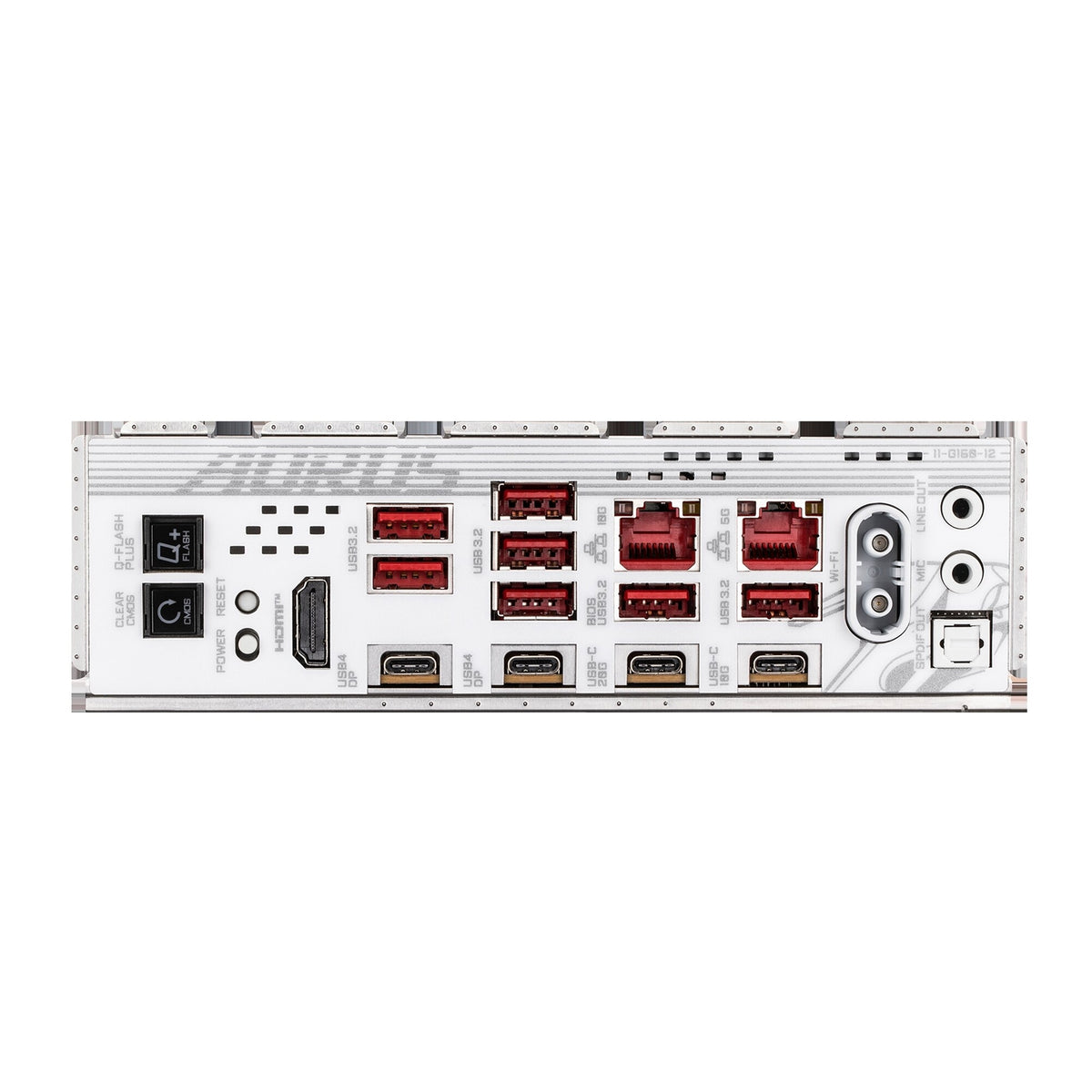

USB (Back Panel)
2x USB4 Type-C (40Gbps, DP-Alt)
1x USB 3.2 Gen 2x2 Type-C (20Gbps)
1x USB 3.2 Gen 2 Type-C (10Gbps)
7x USB 3.2 Gen 2 Type-A (red, 10Gbps)

Display Output
1x HDMI 2.1 (rear, up to 4096x2160 @ 60Hz)
2x USB4 Type-C with DP-Alt (up to 3840x2160 @ 240Hz)
1x Front HDMI (Sensor Panel Link, up to 1920x1080 @ 30Hz)

LAN
Realtek 5GbE LAN1 (5 / 2.5 / 1 Gbps / 100 Mbps)
Realtek 10GbE LAN2 (10 / 5 / 2.5 / 1 Gbps / 100 Mbps)

Wireless
MediaTek Wi-Fi 7 MT7927, 802.11be (2.4 / 5 / 6 GHz, up to 320MHz)
Bluetooth 5.4

Audio
Realtek ALC1220 + ESS ES9118 DAC, DTS:X Ultra, up to 5.1-channel, S/PDIF Out

Form Factor
ATX (305mm x 244mm)

OS Support
Windows 11 64-bit

Warranty
3 Years GIGABYTE Manufacturer Warranty
