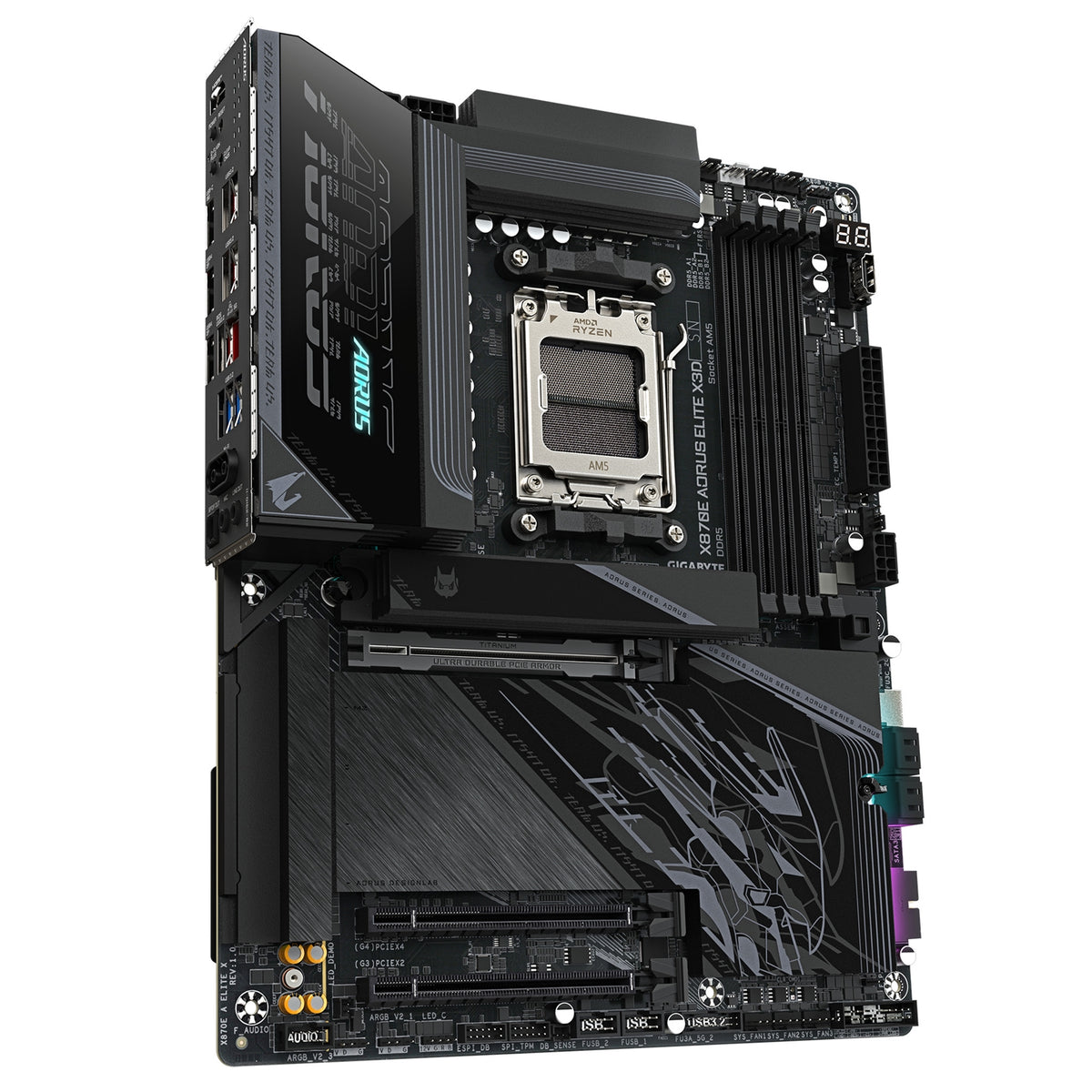

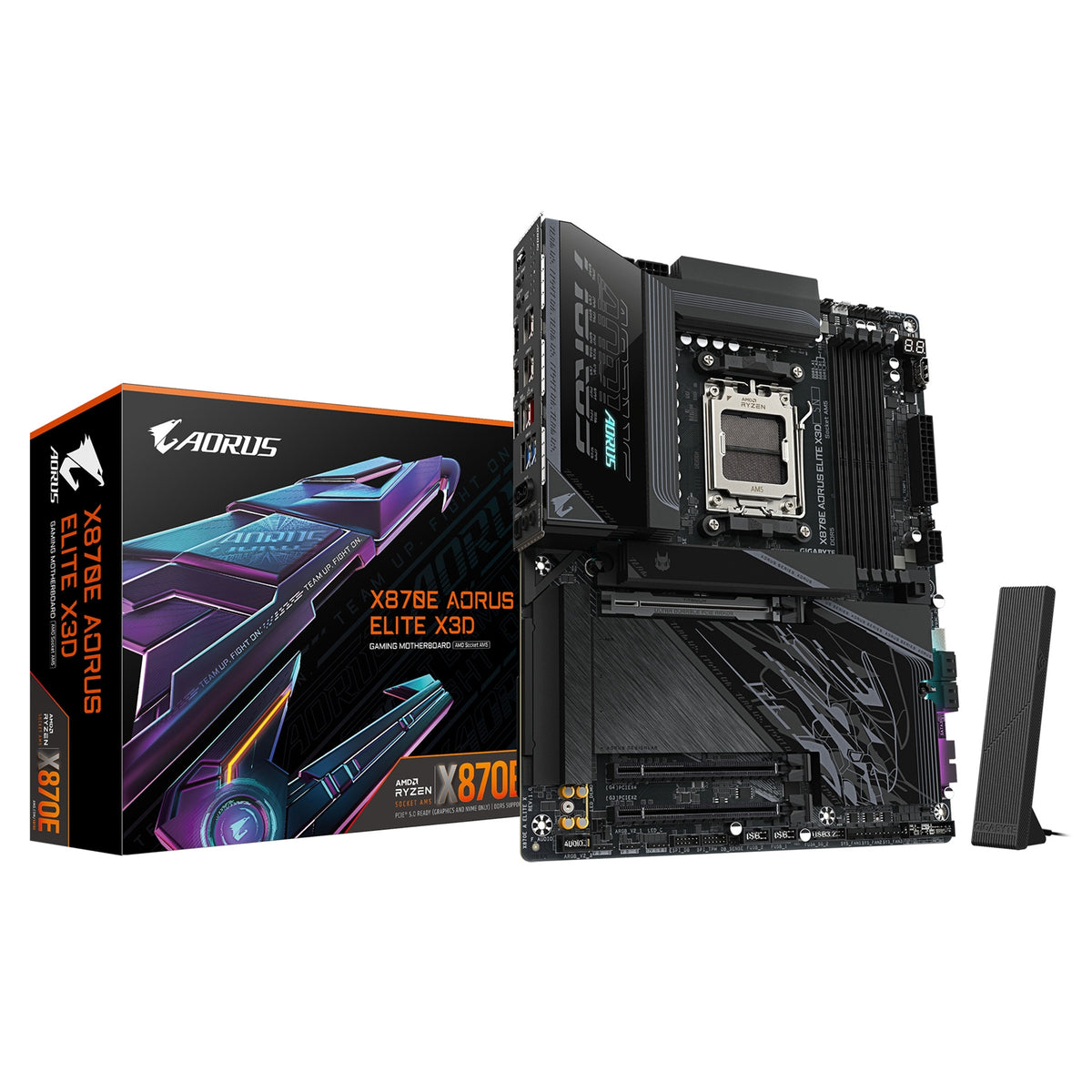

Gigabyte X870E AORUS ELITE X3D, AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 4x M.2 Sockets, 5GbE LAN, Wi-Fi 7, 1x HDMI, 2x USB4 Type-C, 3 Year Warranty

• Socket: AM5
• CPU Compatibility: AMD Ryzen 9000/8000/7000
• Chipset: AMD X870E
• Form Factor: ATX
• Memory Slots: DDR5 - 4 Slots
• M.2 Compatibility: PCIe 5 / PCIe 4 / PCIe 3
• Wi-Fi: Yes

X870E AORUS ELITE X3D
A premium AMD X870E ATX motherboard featuring X3D Turbo Mode 2.0 for AMD 3D V-Cache processors, 5GbE LAN, Qualcomm Wi-Fi 7 with 320MHz channel width, dual USB4 Type-C, front-panel 65W USB-C fast charge, and a 16+2+2 phase VRM with PCB Thermal Plate for enhanced stability.

Key Features
AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
AMD X870E chipset — premium platform with full PCIe 5.0 support
X3D Turbo Mode 2.0: AI-driven performance optimisation for AMD 3D V-Cache processors
Digital twin 16+2+2 phase VRM solution
4x DDR5 DIMM slots with AMD EXPO and XMP support, up to DDR5-9000 (O.C.)

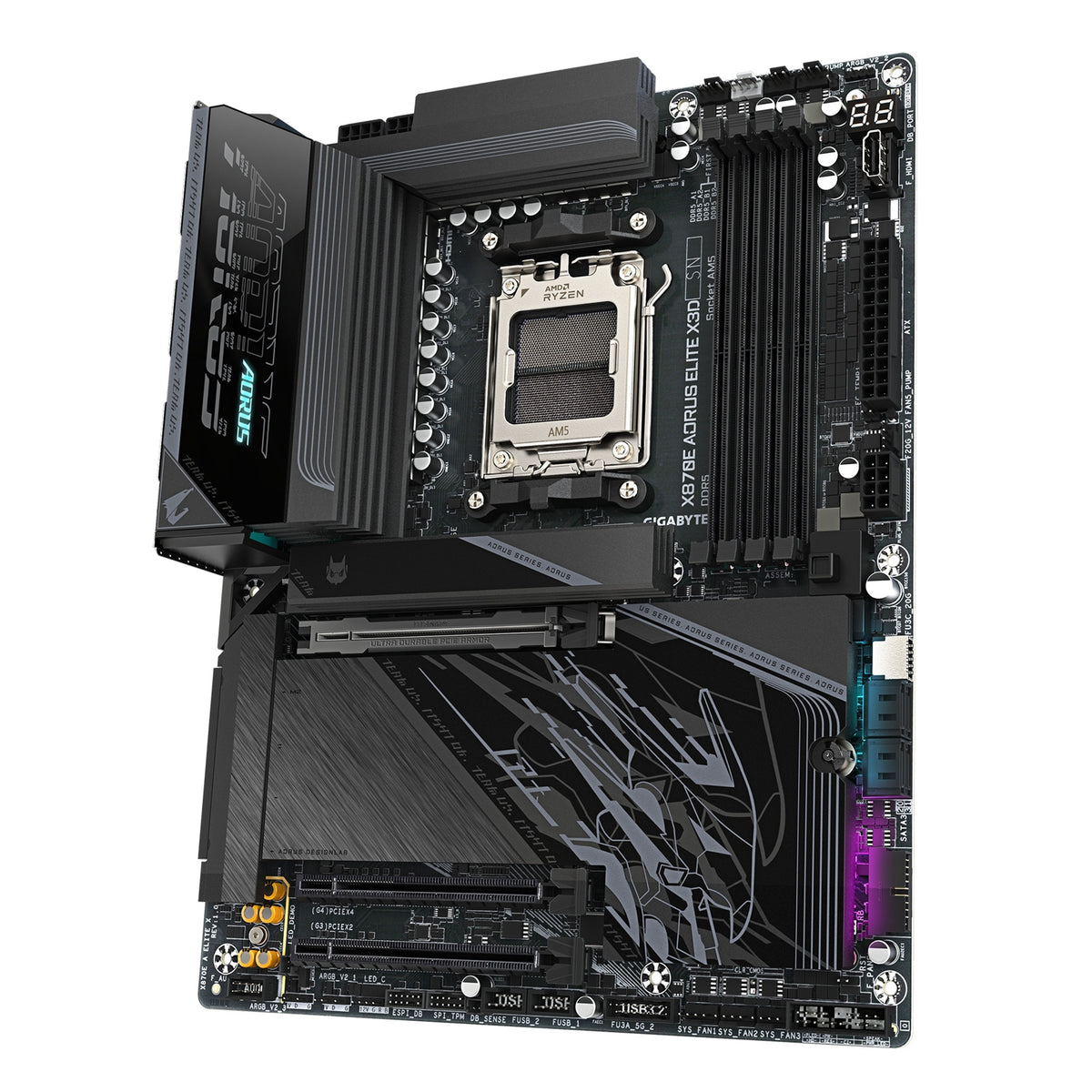

4x M.2 slots including 2x PCIe 5.0 x4 (CPU-direct)
4x SATA 6Gb/s
Realtek 5GbE LAN (5 / 2.5 / 1 Gbps / 100 Mbps)
Qualcomm Wi-Fi 7 (QCNCM865, 802.11be, 320MHz) with Bluetooth 5.4
2x USB4 Type-C with DP-Alt (40Gbps each)
Front USB-C internal header with 65W PD 3.0 / QC 4+ fast charging support

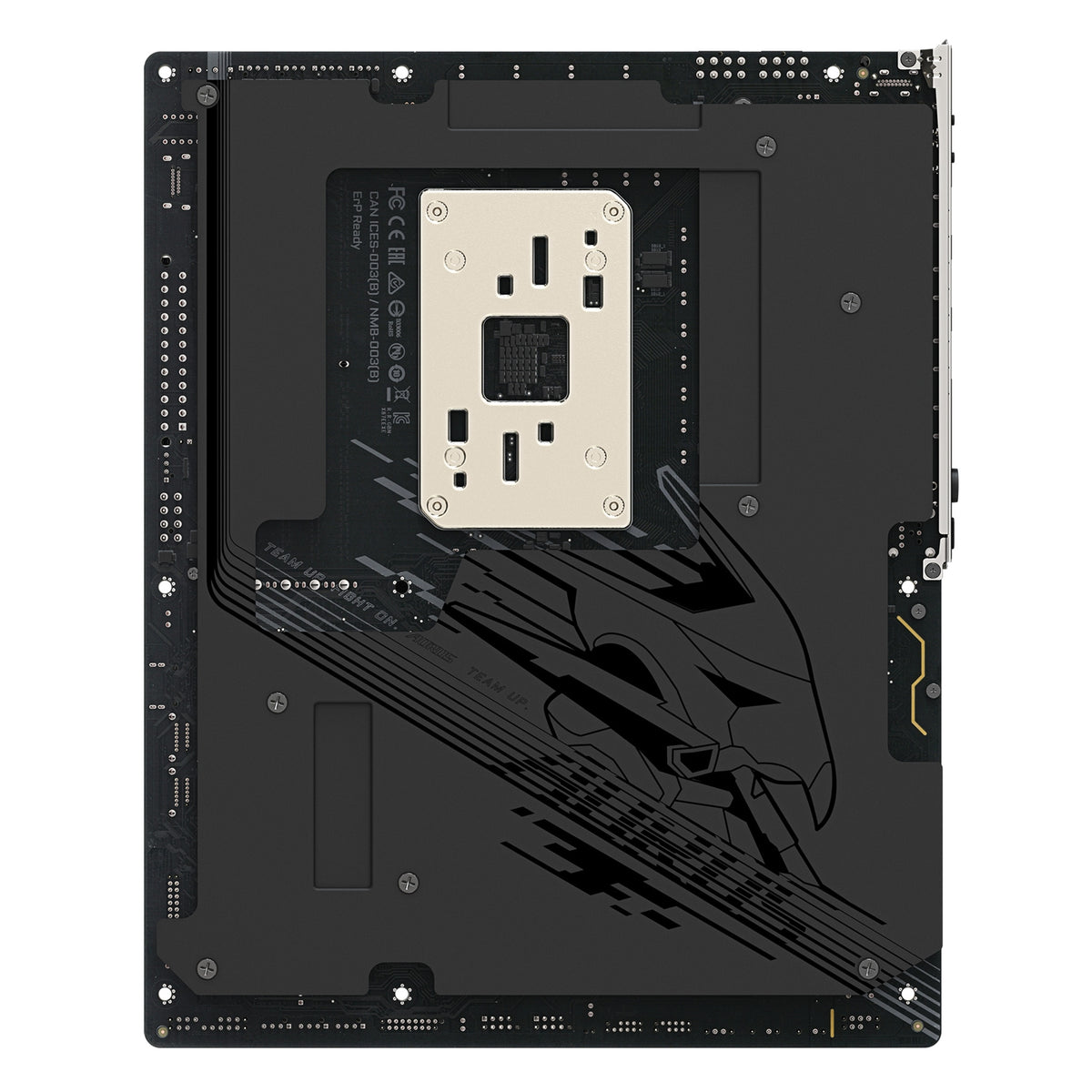

PCB Thermal Plate: 14% thermal improvement and reinforced motherboard stability
M.2 EZ-Flex: high-efficiency heat dissipation with flexible patented baseplate
EZ-Latch Plus: M.2 with quick release and screwless design
Sensor Panel Link: Front HDMI for in-chassis display panels
VRM Thermal Armour and M.2 Thermal Guard L and Ext.
PCIe 5.0 x16 UD Slot X with 10x strength reinforcement
ALC1220 audio with S/PDIF Out
DriverBIOS: Wi-Fi driver pre-installed for out-of-box network access

X3D Turbo Mode 2.0
AI-driven optimisation unlocks the full performance potential of AMD Ryzen processors with 3D V-Cache technology, delivering exceptional gaming and computational performance with minimal user input.

5GbE LAN
Realtek 5GbE provides up to 5Gbps wired networking — twice the bandwidth of standard 2.5GbE — a standout feature at the AMD X870E chipset level.

Dual USB4 Type-C + Front 65W USB-C
Two USB4 Type-C ports deliver up to 40Gbps each with DisplayPort Alt Mode. A dedicated internal USB-C header supports up to 65W PD 3.0 / QC 4+ fast charging for front-panel connectivity.

Specification

CPU
AMD Socket AM5
Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors

Chipset
AMD X870E

Memory
4x DDR5 DIMM slots, up to 256GB (64GB single DIMM)
Dual channel, DDR5-4800 native, up to DDR5-9000 (O.C.)
Supports AMD EXPO and XMP

Expansion Slots
1x PCIe 5.0 x16 (CPU) — Ryzen 9000/7000; PCIe 4.0 x8/x4 — Ryzen 8000
1x PCIe 4.0 x16 (chipset, running at x4)
1x PCIe 3.0 x16 (chipset, running at x2)

Storage
1x M.2 PCIe 5.0 x4 (M2A_CPU, up to 25110)
1x M.2 PCIe 5.0 x4 (M2B_CPU, up to 22110) — Ryzen 9000/7000 only
2x M.2 PCIe 4.0 x4 (M2C/D_SB, chipset, up to 22110)
4x SATA 6Gb/s
RAID 0/1/5/10 for NVMe; RAID 0/1/10 for SATA

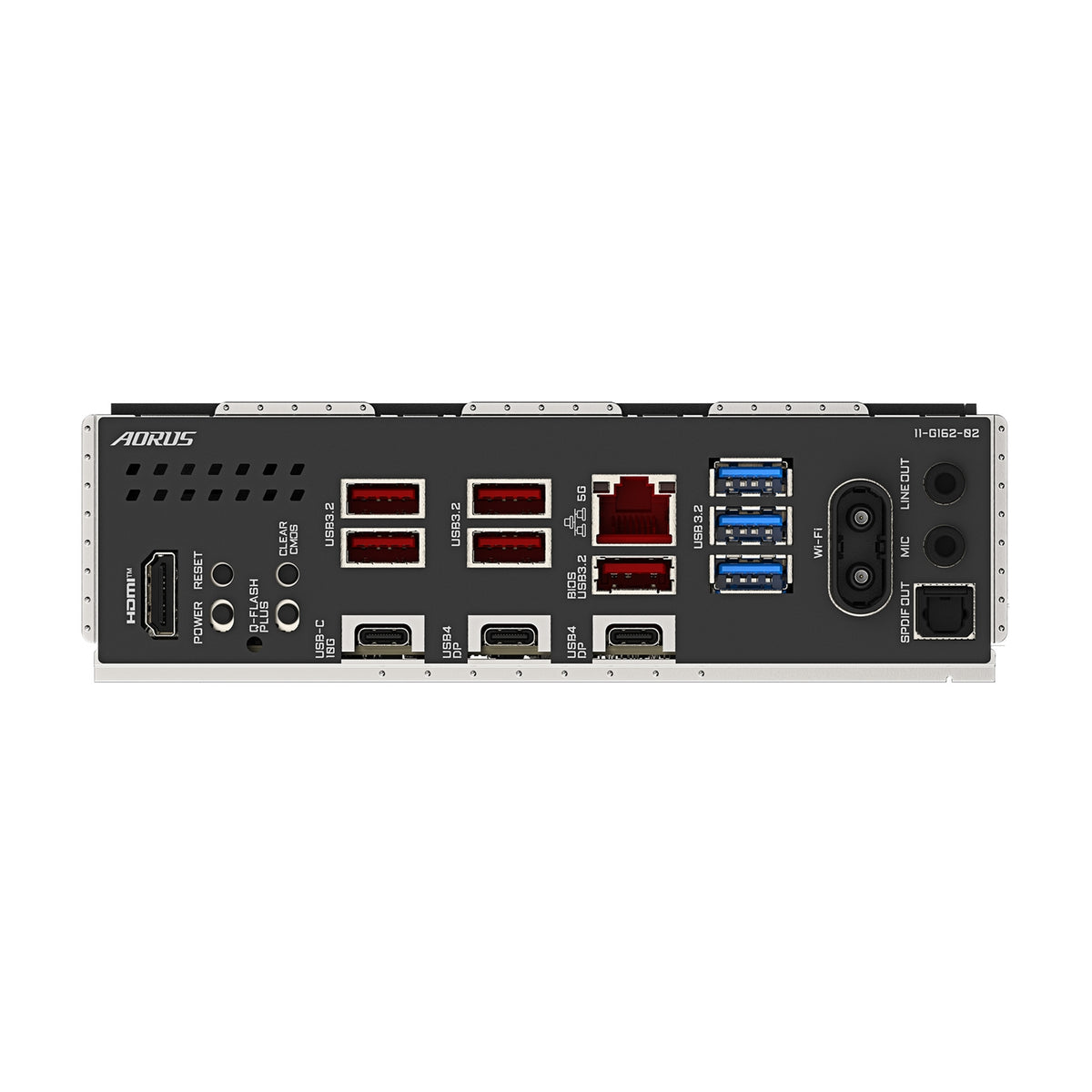

USB (Back Panel)
2x USB4 Type-C (40Gbps, DP-Alt)
1x USB 3.2 Gen 2 Type-C (10Gbps, CPU)
5x USB 3.2 Gen 2 Type-A (red, 10Gbps)
3x USB 3.2 Gen 1 Type-A (5Gbps)

Display Output
1x HDMI 2.1 (rear, up to 4096x2160 @ 60Hz)
2x USB4 Type-C with DP-Alt (up to 3840x2160 @ 240Hz)
1x Front HDMI (Sensor Panel Link, up to 1920x1080 @ 30Hz)

LAN
Realtek 5GbE (5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps)

Wireless
Qualcomm Wi-Fi 7 QCNCM865, 802.11be (2.4 / 5 / 6 GHz, up to 320MHz)
Bluetooth 5.4

Audio
Realtek ALC1220, High Definition Audio, up to 7.1-channel, S/PDIF Out

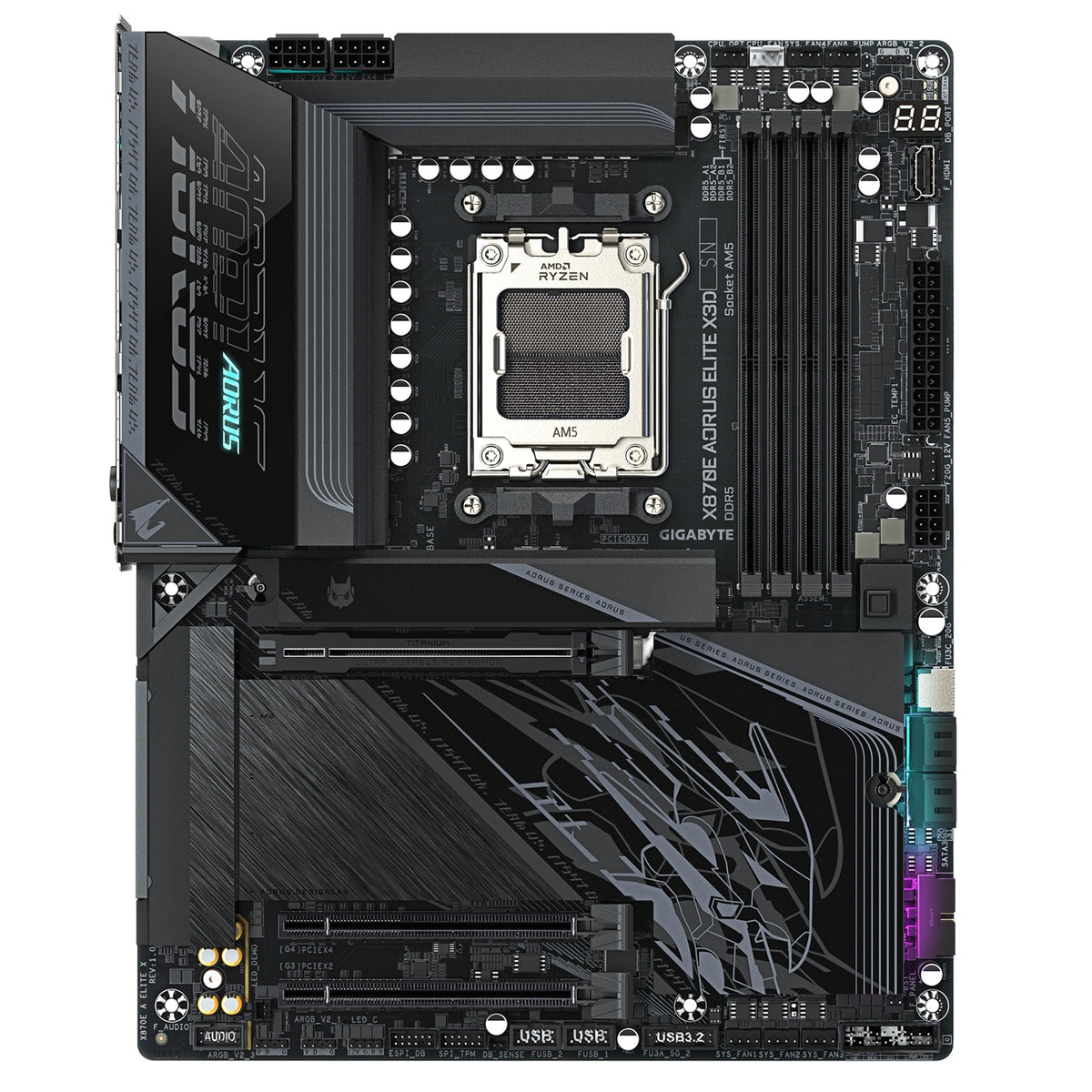

Form Factor
ATX (305mm x 244mm)

OS Support
Windows 11 64-bit

Warranty
3 Years GIGABYTE Manufacturer Warranty
