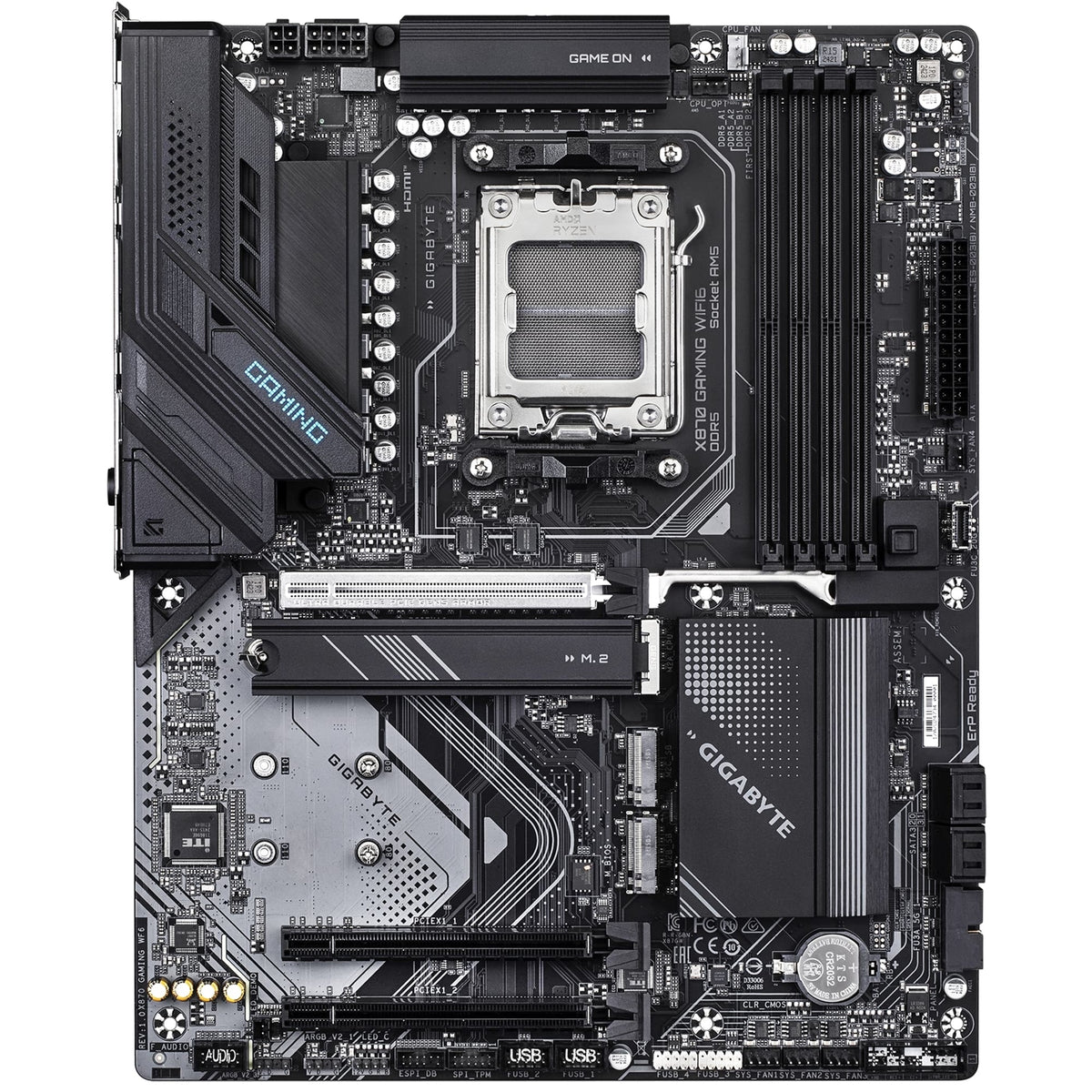

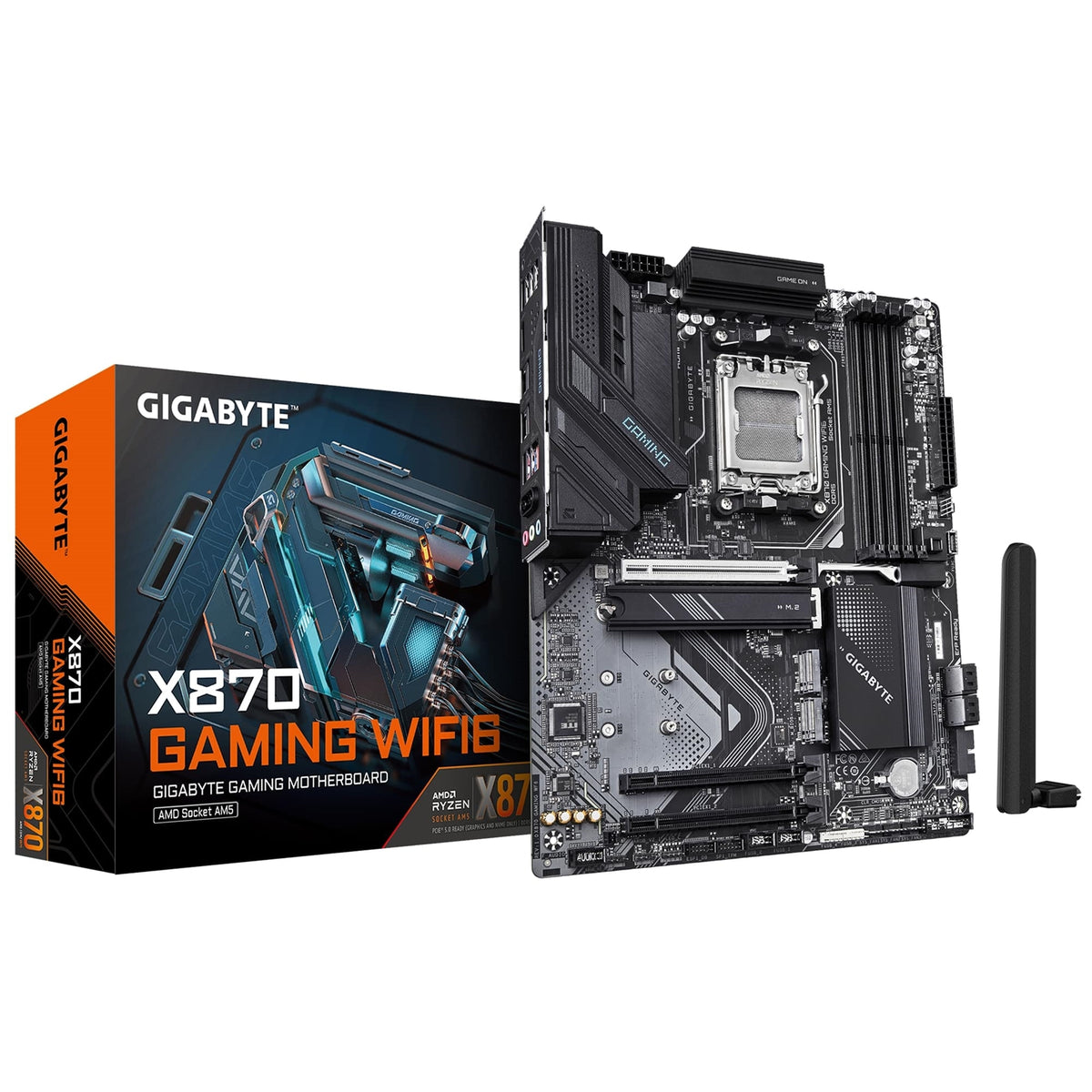

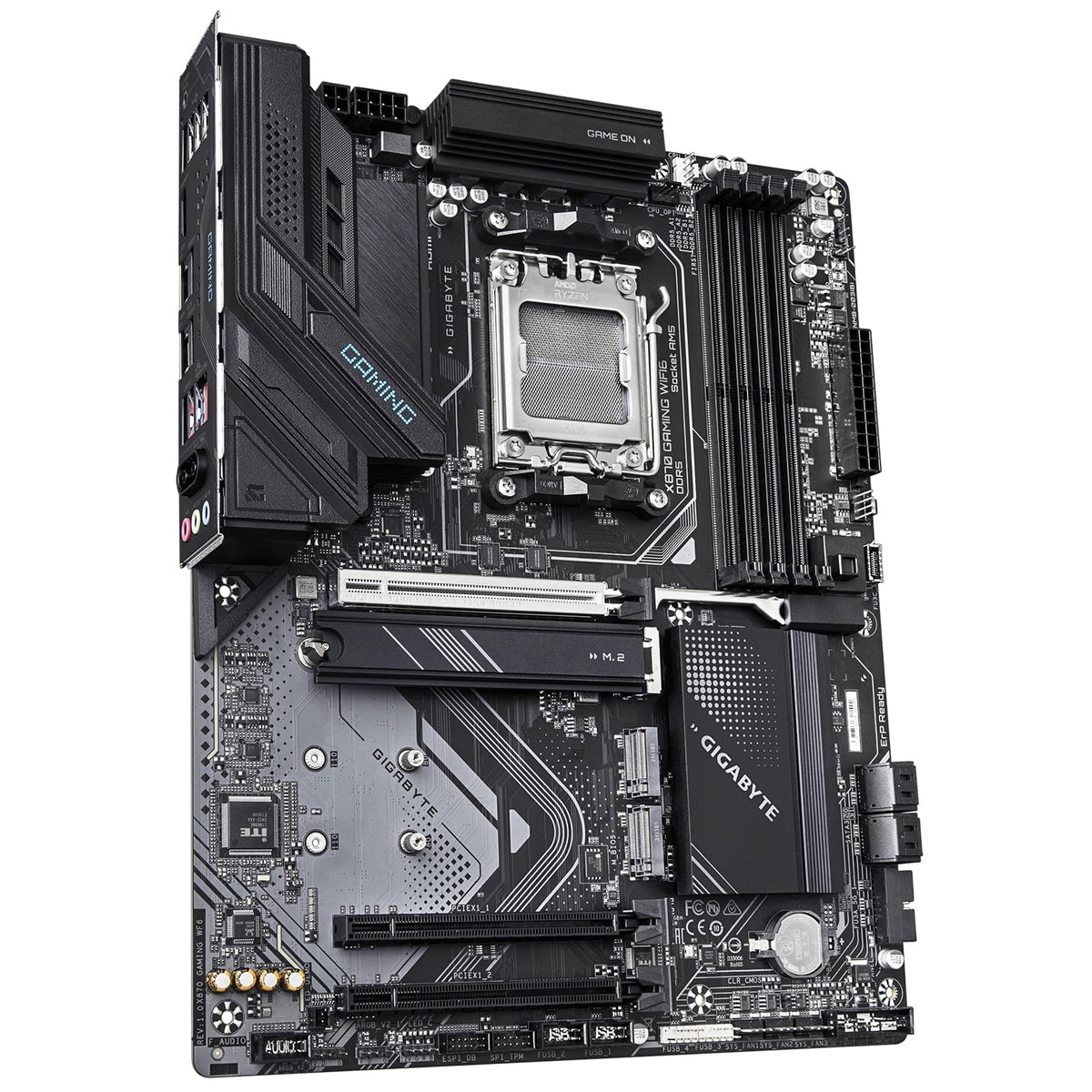

Gigabyte X870 GAMING WIFI6, AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Sockets, 2.5GbE LAN, Wi-Fi 6, 1x HDMI, 2x USB4 Type-C, 3 Year Warranty

• Socket: AM5
• CPU Compatibility: AMD Ryzen 9000/8000/7000
• Chipset: AMD X870
• Form Factor: ATX
• Memory Slots: DDR5 - 4 Slots
• M.2 Compatibility: PCIe 5 / PCIe 4 / PCIe 3
• Wi-Fi: Yes

X870 GAMING WIFI6

Key Features
AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
Digital twin 8+2+2 phase VRM solution
4x DDR5 DIMM slots with AMD EXPO and XMP support, up to DDR5-8200 (O.C.)
3x M.2 slots including 1x PCIe 5.0 x4
2x USB4 Type-C with DP-Alt (40Gbps each)
Wi-Fi 6 802.11ax (2.4 / 5 GHz) with Bluetooth 5.3
2.5GbE LAN
EZ-Latch Plus: PCIe and M.2 slots with quick release and screwless design
EZ-Latch Click: M.2 heatsinks with screwless design
VRM Thermal Armour and M.2 Thermal Guard

Digital Twin VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level with an 8+2+2 phase VRM solution.

Dual USB4 Type-C
Two USB4 Type-C ports provide transfer speeds up to 40Gbps each with DisplayPort Alt Mode support, ideal for video editing, large file transfers, and multi-display setups.

Wi-Fi 6 802.11ax
Wi-Fi 6 enables gigabit wireless performance, smooth video streaming, and better gaming experience on 2.4 / 5 GHz bands. Bluetooth 5.3 provides extended range and faster transmission.

PCIe 5.0 Ready
Featuring a PCIe 5.0 x16 slot and PCIe 5.0 M.2 support, the X870 GAMING WIFI6 is ready for the next generation of discrete graphics and NVMe storage.

Specification

CPU
AMD Socket AM5
Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors

Chipset
AMD X870

Memory
4x DDR5 DIMM slots, up to 256GB (64GB single DIMM)
Dual channel, DDR5-4800 native, up to DDR5-8200 (O.C.)
Supports AMD EXPO and XMP

Expansion Slots
1x PCIe 5.0 x16 (CPU) — Ryzen 9000/7000
1x PCIe 4.0 x8 (CPU) — Ryzen 8000 Phoenix 1
1x PCIe 4.0 x4 (CPU) — Ryzen 8000 Phoenix 2
2x PCIe 3.0 x1 (chipset)

Storage
1x M.2 PCIe 5.0 x4 (M2A_CPU, up to 25110)
1x M.2 PCIe 4.0 x4 (M2B_SB, chipset, up to 25110)
1x M.2 PCIe 4.0 x2 (M2C_SB, chipset, up to 25110)
4x SATA 6Gb/s
RAID 0/1/5/10 for NVMe; RAID 0/1/10 for SATA

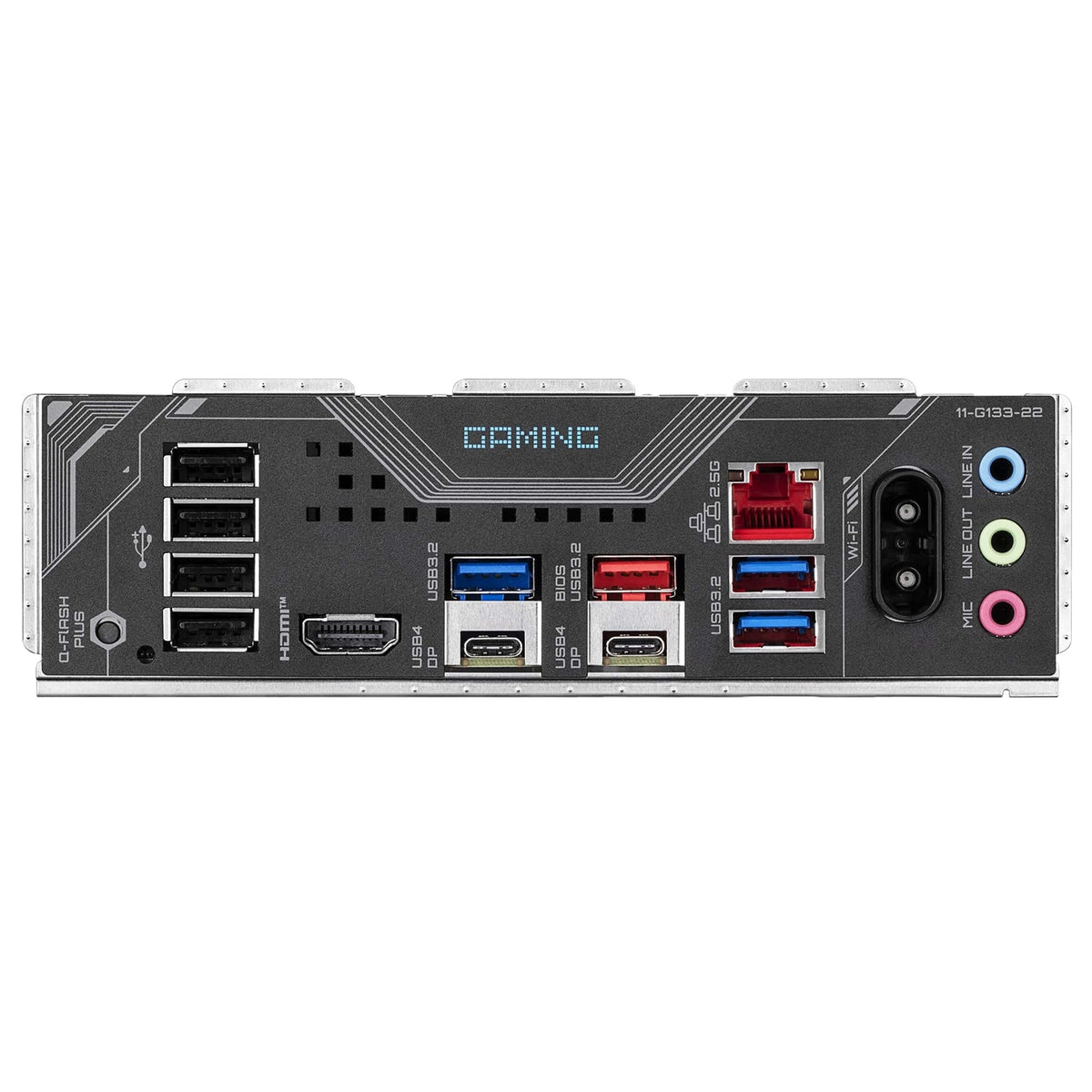

USB (Back Panel)
2x USB4 Type-C (40Gbps, DP-Alt)
1x USB 3.2 Gen 2 Type-A (red, 10Gbps)
3x USB 3.2 Gen 1 Type-A (5Gbps)
4x USB 2.0 Type-A

Display Output
1x HDMI (up to 4096x2160 @ 60Hz)
2x USB4 Type-C with DP-Alt (up to 3840x2160 @ 240Hz)

LAN
Realtek 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps)

Wireless
Realtek Wi-Fi 6 RTL8851BE, 802.11ax (2.4 / 5 GHz, up to 80MHz)
Bluetooth 5.3

Audio
Realtek Audio CODEC, High Definition Audio, up to 7.1-channel

Form Factor
ATX (305mm x 244mm)

OS Support
Windows 10 / 11 64-bit

Warranty
3 Years GIGABYTE Manufacturer Warranty
