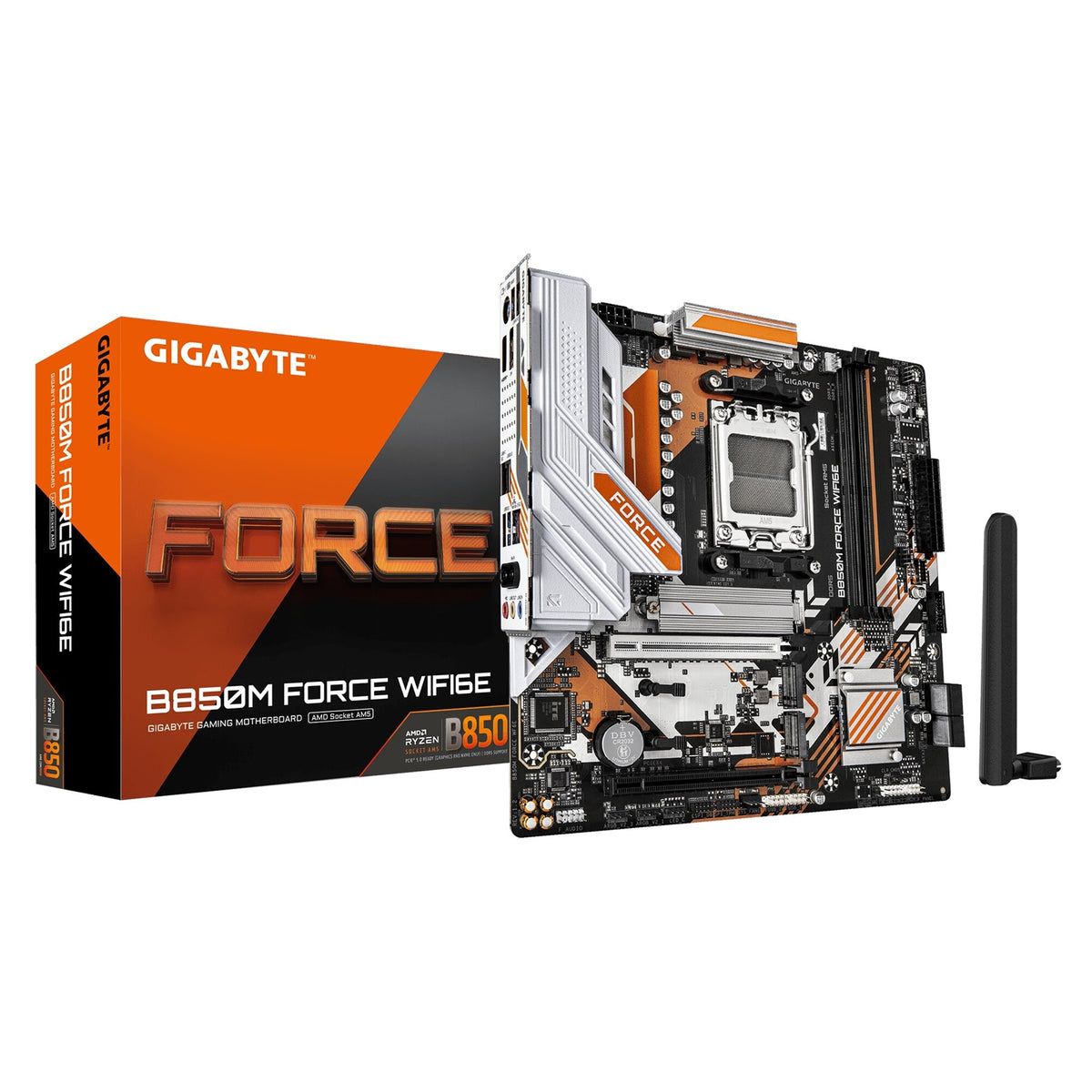

Gigabyte B850M FORCE WIFI6E, AMD AM5 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 3x M.2 Sockets, 2.5GbE LAN, Wi-Fi 6E, 1x DisplayPort, 1x HDMI, 3 Year Warranty

• Socket: AM5
• CPU Compatibility: AMD Ryzen 9000/8000/7000
• Chipset: AMD B850
• Form Factor: Micro ATX
• Memory Slots: DDR5 - 2 Slots
• M.2 Compatibility: PCIe 5 / PCIe 4 / PCIe 3
• Wi-Fi: Yes

B850M FORCE WIFI6E

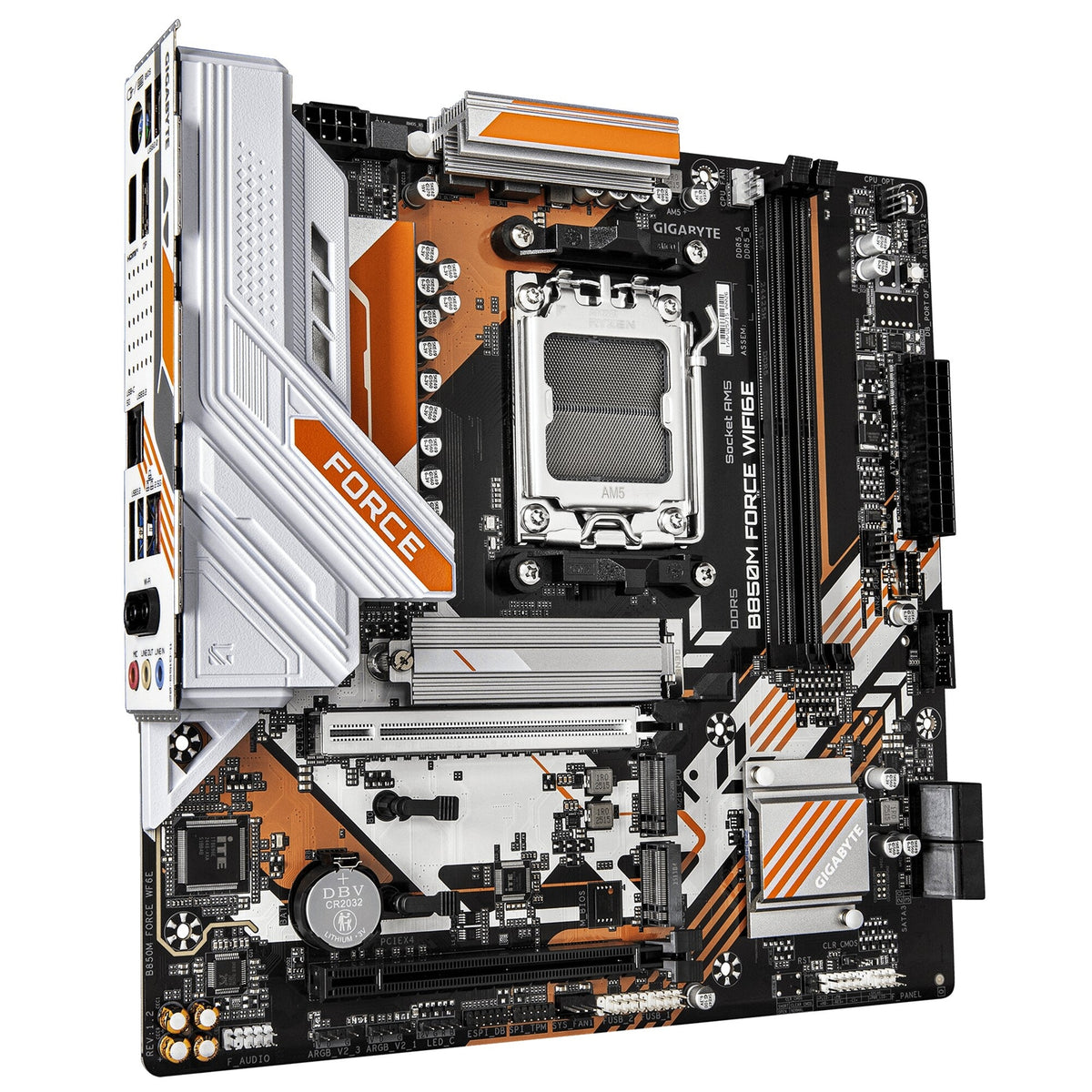

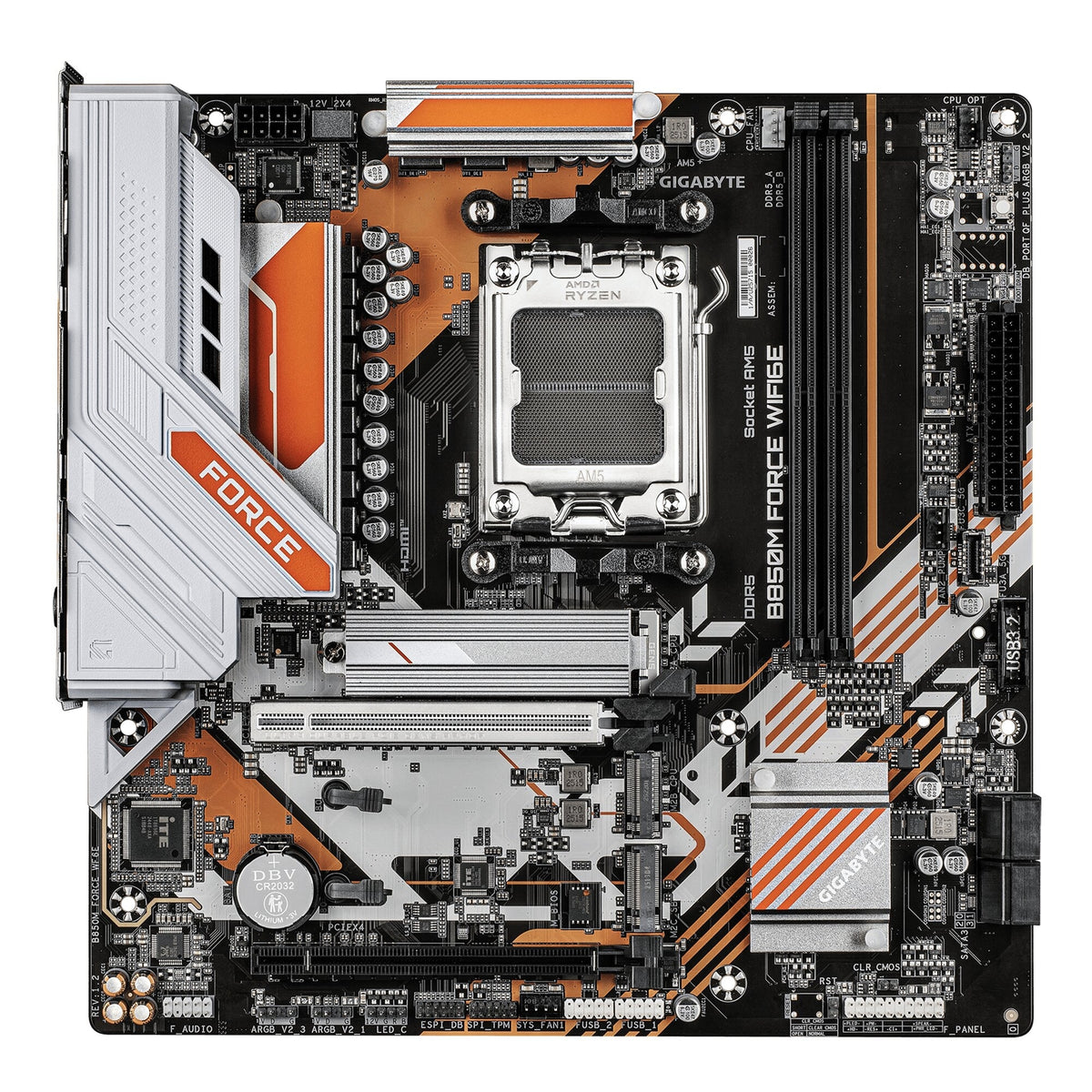

A compact AMD B850 Micro-ATX motherboard for AMD Ryzen AM5 processors, featuring an 8+2+2 phase VRM, X3D Turbo Mode support, three M.2 slots including one PCIe 5.0, 2.5GbE LAN, Wi-Fi 6E, and dual display outputs for APU builds.

Key Features
AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
AMD B850 chipset
X3D Turbo Mode: optimised performance for AMD 3D V-Cache processors
Digital 8+2+2 phase VRM solution
2x DDR5 DIMM slots with AMD EXPO and XMP support, up to DDR5-9600 (O.C.), max 128GB
1x M.2 PCIe 5.0 x4 (M2A_CPU, type 2280) — Ryzen 9000/7000: PCIe 5.0; Ryzen 8000: PCIe 4.0
1x M.2 PCIe 4.0 x4 (M2B_CPU, type 2280) — Ryzen 8000 Phoenix 2: PCIe 4.0 x2
1x M.2 PCIe 4.0 x2 (M2C_SB, chipset, type 2280)
4x SATA 6Gb/s, RAID 0/1/5/10 for NVMe (RAID 5: Ryzen 9000 only); RAID 0/1/10 for SATA
Realtek 2.5GbE LAN
MediaTek Wi-Fi 6E MT7902 (802.11ax, 160MHz, 2.4/5/6 GHz) with Bluetooth 5.3
1x HDMI 2.1 + 1x DisplayPort 1.4 (APU required)
PCIe 5.0 x16 primary slot (Ryzen 9000/7000; PCIe 4.0 x8/x4 with Ryzen 8000)
EZ-Latch: PCIe x16 with quick release design
VRM Thermal Armour
Q-Flash Plus: BIOS update without CPU or memory installed

Specification

CPU
AMD Socket AM5
Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors

Chipset
AMD B850

Memory
2x DDR5 DIMM slots, up to 128GB (64GB single DIMM)
Dual channel, DDR5-4800 native, up to DDR5-9600 (O.C.)
Supports AMD EXPO and XMP

Expansion Slots
1x PCIe 5.0 x16 (CPU) — Ryzen 9000/7000; PCIe 4.0 x8 — Ryzen 8000 Phoenix 1; PCIe 4.0 x4 — Ryzen 8000 Phoenix 2
1x PCIe 4.0 x16 (chipset, running at x4)

Storage
1x M.2 PCIe 5.0 x4 (M2A_CPU, type 2280) — Ryzen 9000/7000: PCIe 5.0; Ryzen 8000: PCIe 4.0
1x M.2 PCIe 4.0 x4 (M2B_CPU, type 2280) — Ryzen 8000 Phoenix 2: PCIe 4.0 x2
1x M.2 PCIe 4.0 x2 (M2C_SB, chipset, type 2280)
4x SATA 6Gb/s
RAID 0/1/5/10 for NVMe (RAID 5: Ryzen 9000 only); RAID 0/1/10 for SATA

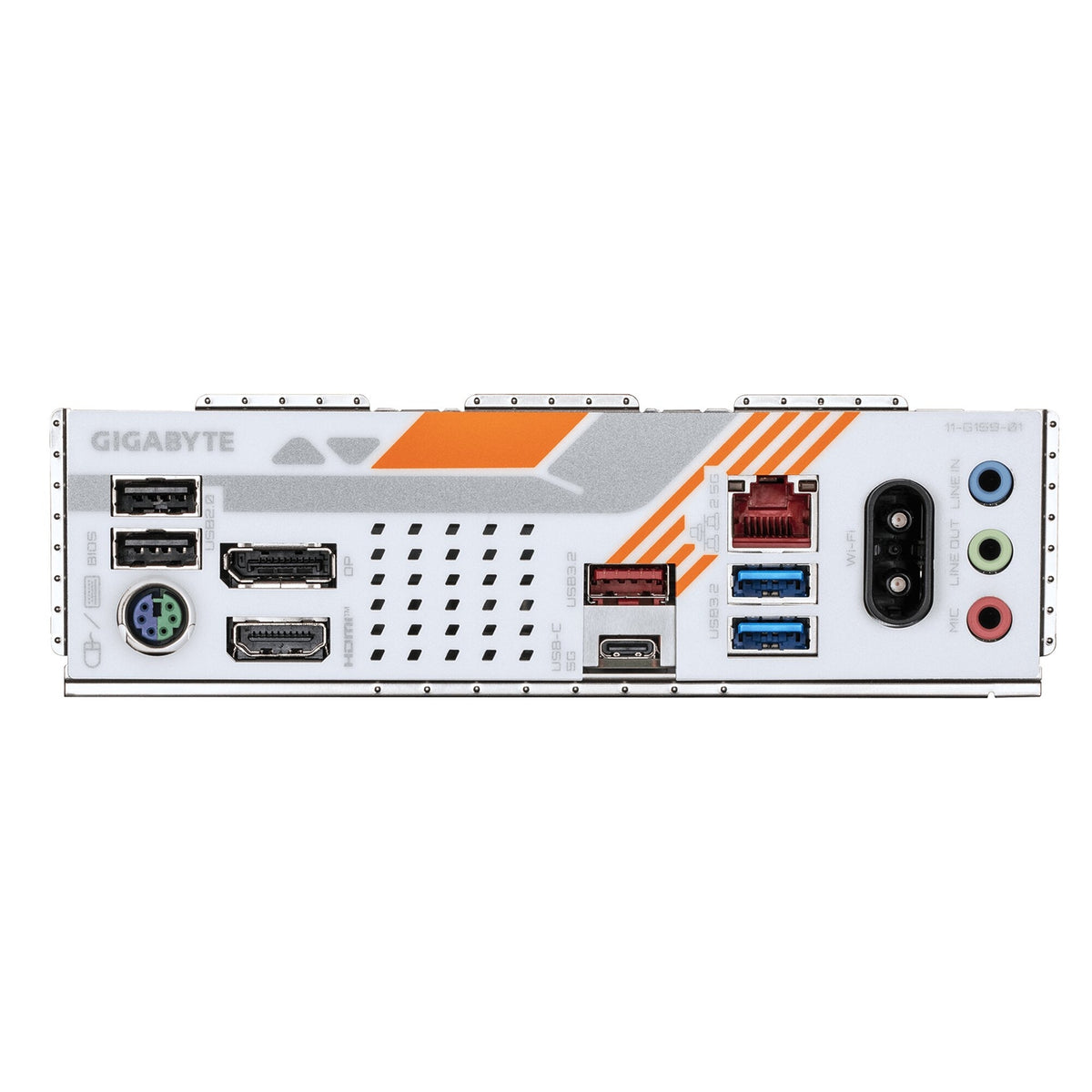

USB (Back Panel)
1x USB 3.2 Gen 2 Type-A (red, 10Gbps)
1x USB 3.2 Gen 1 Type-C (5Gbps)
2x USB 3.2 Gen 1 Type-A (5Gbps)
2x USB 2.0 Type-A
1x PS/2 keyboard/mouse port

Display Output
1x HDMI 2.1 (up to 4096x2160 @ 60Hz, HDCP 2.3, HDR) — APU required
1x DisplayPort 1.4 (up to 3840x2160 @ 144Hz) — APU required

LAN
Realtek 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps)

Wireless
MediaTek Wi-Fi 6E MT7902, 802.11ax (2.4 / 5 / 6 GHz, up to 160MHz), 1T1R antenna
Bluetooth 5.3

Audio
Realtek HD Audio, up to 7.1-channel, 3x audio jacks

Form Factor
Micro-ATX (244mm x 244mm)

OS Support
Windows 11 64-bit
Windows 10 64-bit

Warranty
3 Years GIGABYTE Manufacturer Warranty
