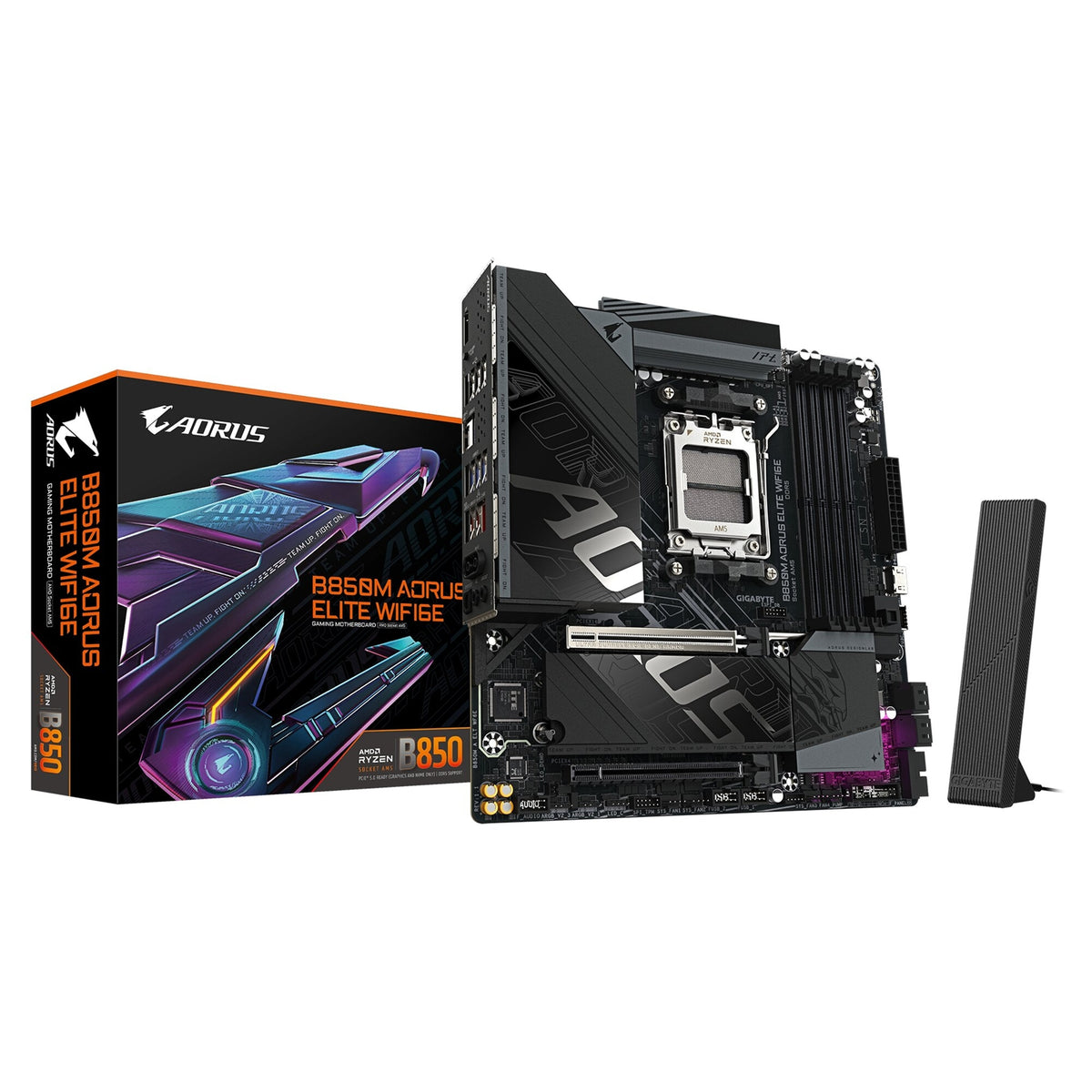

Gigabyte B850M AORUS ELITE WIFI6E, AMD AM5 Socket Motherboard, Micro-ATX, 4x DDR5 Slots, 2x M.2 Sockets, 2.5GbE LAN, Wi-Fi 6E, 1x DisplayPort, 3 Year Warranty

• Socket: AM5
• CPU Compatibility: AMD Ryzen 9000/8000/7000
• Chipset: AMD B850
• Form Factor: Micro ATX
• Memory Slots: DDR5 - 4 Slots
• M.2 Compatibility: PCIe 5 / PCIe 4 / PCIe 3
• Wi-Fi: Yes

B850M AORUS ELITE WIFI6E
A feature-rich AMD B850 Micro-ATX motherboard for AMD Ryzen AM5 processors, featuring a 12+2+2 phase VRM, X3D Turbo Mode, 4x DDR5 slots, two CPU-direct M.2 slots, 2.5GbE LAN, Wi-Fi 6E, a strong USB 3.2 Gen 2 back panel, and Sensor Panel Link for in-chassis display support.

Key Features
AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
AMD B850 chipset
X3D Turbo Mode: optimised performance for AMD 3D V-Cache processors
Digital twin 12+2+2 phase VRM solution
4x DDR5 DIMM slots with AMD EXPO and XMP support, up to DDR5-8200 (O.C.), max 256GB
1x M.2 PCIe 5.0 x4 (M2A_CPU, up to 25110) — Ryzen 9000/7000: PCIe 5.0; Ryzen 8000: PCIe 4.0
1x M.2 PCIe 4.0 x4 (M2B_CPU, up to 22110) — Ryzen 8000 Phoenix 2: PCIe 4.0 x2
4x SATA 6Gb/s, RAID 0/1/5/10 for NVMe (RAID 5: Ryzen 9000 only); RAID 0/1/10 for SATA
Realtek 2.5GbE LAN
Realtek Wi-Fi 6E RTL8852CE (802.11ax, 160MHz, 2.4/5/6 GHz) with Bluetooth 5.3, 2T2R antenna
1x DisplayPort 1.4 (up to 3840x2160 @ 144Hz) — APU required
Sensor Panel Link: 1x Front HDMI 1.4 (up to 1920x1080 @ 30Hz, internal header for in-chassis panel)
Back panel: 1x USB 3.2 Gen 2 Type-C + 2x USB 3.2 Gen 2 Type-A + 5x USB 3.2 Gen 1 + 4x USB 2.0
Audio: Realtek ALC1220 (rev. 1.1) / Realtek HD Audio (rev. 1.0), S/PDIF optical output, 2x audio jacks
EZ-Latch Plus: PCIe and M.2 with quick release and screwless design
VRM Thermal Armour Advanced and M.2 Thermal Guard Ext.
PCIe 5.0 x16 UD Slot with 10x strength reinforcement
Q-Flash Plus: BIOS update without CPU or memory installed

Specification

CPU
AMD Socket AM5
Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors

Chipset
AMD B850

Memory
4x DDR5 DIMM slots, up to 256GB (64GB single DIMM)
Dual channel, DDR5-4800 native, up to DDR5-8200 (O.C.)
Supports AMD EXPO and XMP

Expansion Slots
1x PCIe 5.0 x16 (CPU, UD Slot) — Ryzen 9000/7000; PCIe 4.0 x8 — Ryzen 8000 Phoenix 1; PCIe 4.0 x4 — Ryzen 8000 Phoenix 2
1x PCIe 3.0 x16 (chipset, running at x4)

Storage
1x M.2 PCIe 5.0 x4 (M2A_CPU, up to 25110) — Ryzen 9000/7000: PCIe 5.0; Ryzen 8000: PCIe 4.0
1x M.2 PCIe 4.0 x4 (M2B_CPU, up to 22110) — Ryzen 8000 Phoenix 2: PCIe 4.0 x2
4x SATA 6Gb/s
RAID 0/1/5/10 for NVMe (RAID 5: Ryzen 9000 only); RAID 0/1/10 for SATA

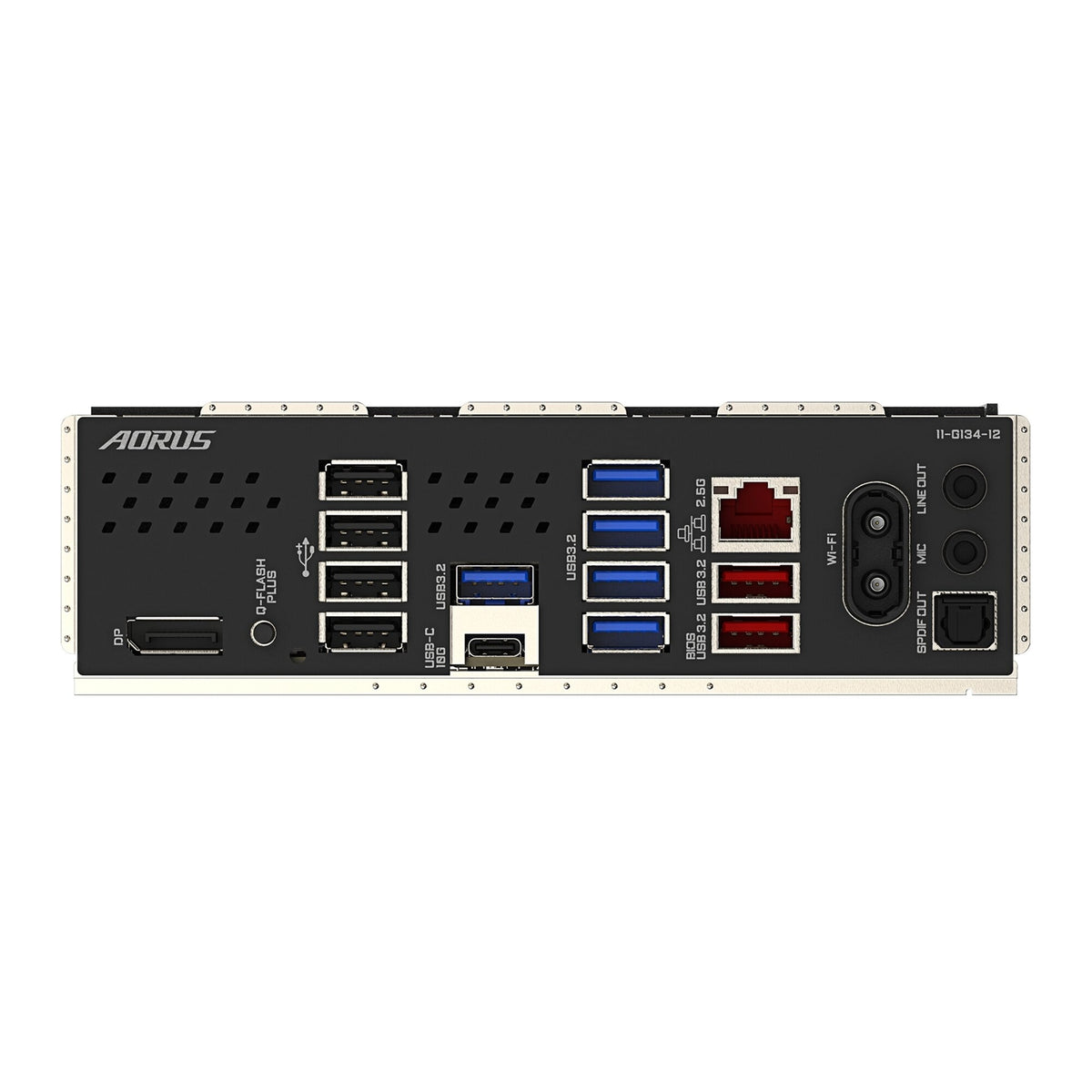

USB (Back Panel)
1x USB 3.2 Gen 2 Type-C (10Gbps)
2x USB 3.2 Gen 2 Type-A (red, 10Gbps)
5x USB 3.2 Gen 1 Type-A (5Gbps)
4x USB 2.0 Type-A

Display Output
1x DisplayPort 1.4 (up to 3840x2160 @ 144Hz, HDR) — APU required
1x Front HDMI 1.4 (Sensor Panel Link, up to 1920x1080 @ 30Hz, internal header only)

LAN
Realtek 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps)

Wireless
Realtek Wi-Fi 6E RTL8852CE, 802.11ax (2.4 / 5 / 6 GHz, up to 160MHz), 2T2R
Bluetooth 5.3

Audio
Rev. 1.1: Realtek ALC1220, HD Audio, up to 7.1-channel, S/PDIF optical output, 2x audio jacks
Rev. 1.0: Realtek HD Audio CODEC, up to 7.1-channel, S/PDIF optical output, 2x audio jacks

Form Factor
Micro-ATX (244mm x 244mm)

OS Support
Windows 11 64-bit
Windows 10 64-bit

Warranty
3 Years GIGABYTE Manufacturer Warranty
