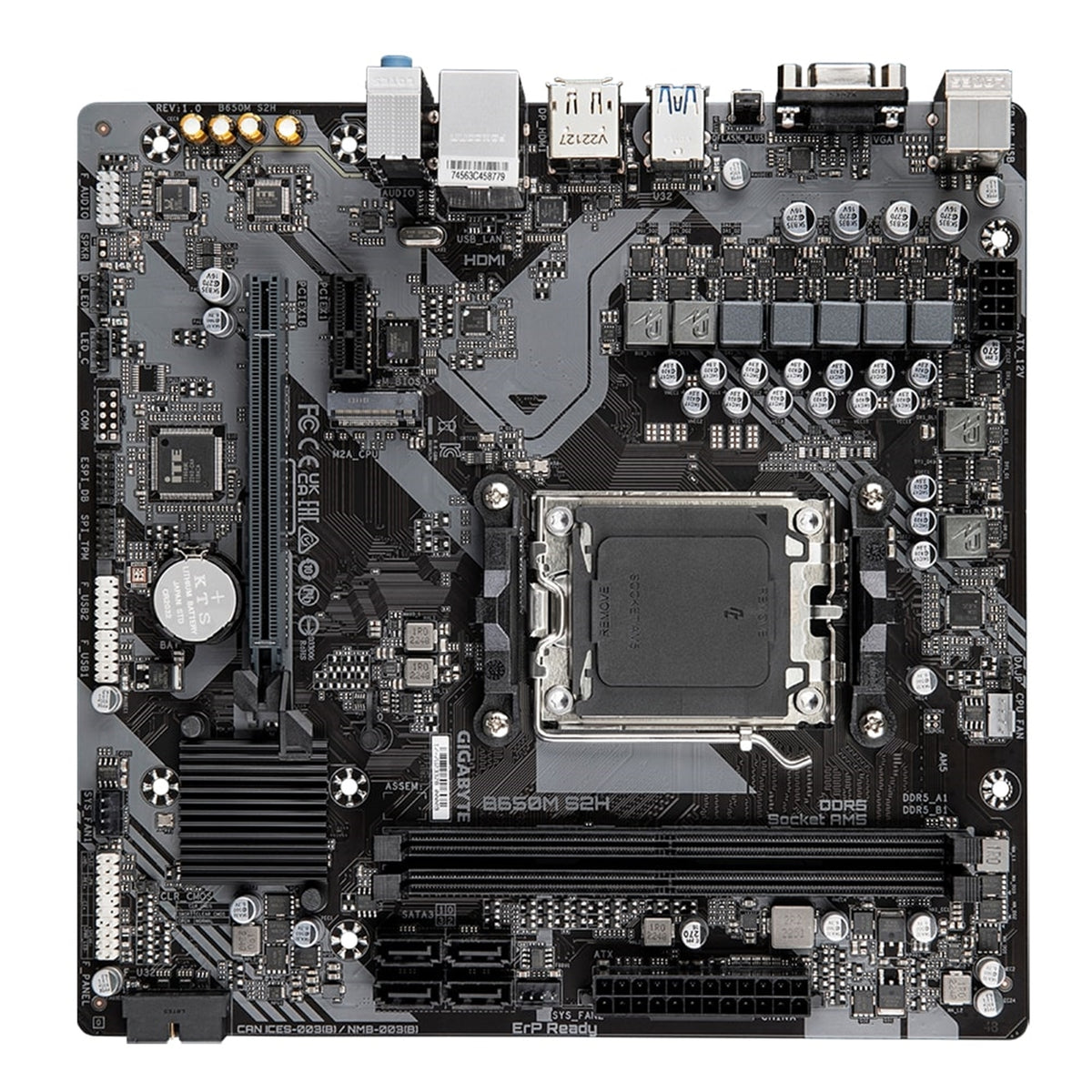

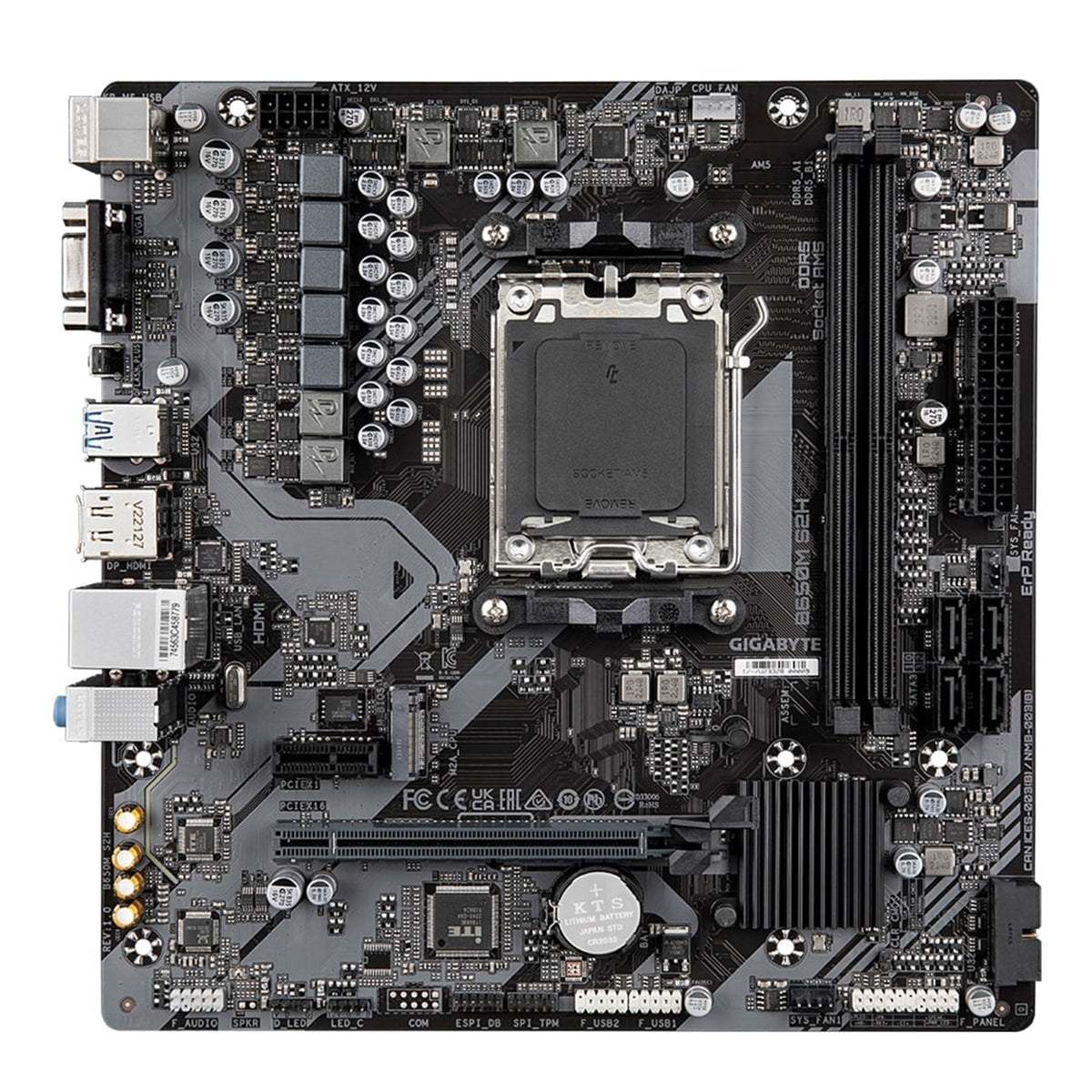

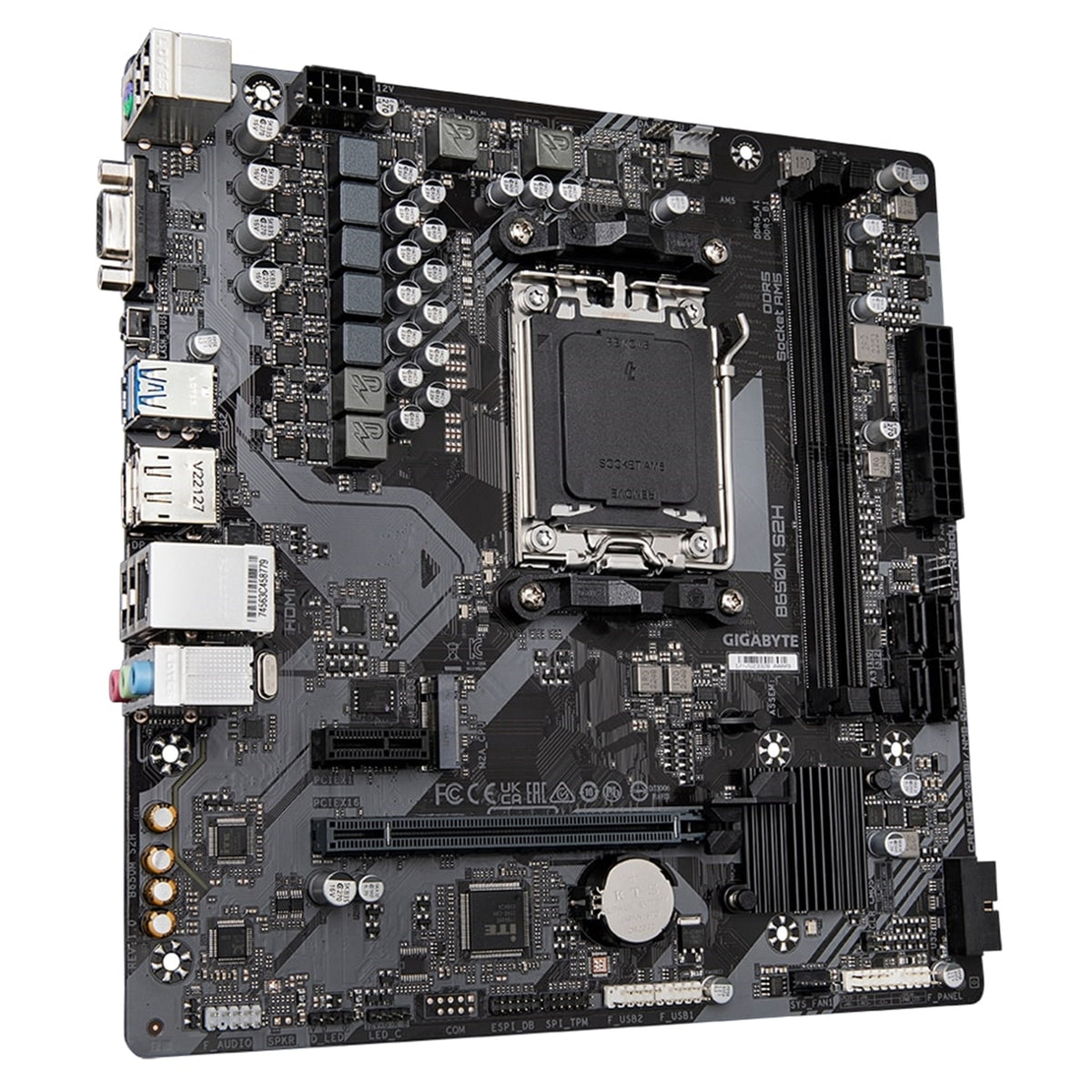

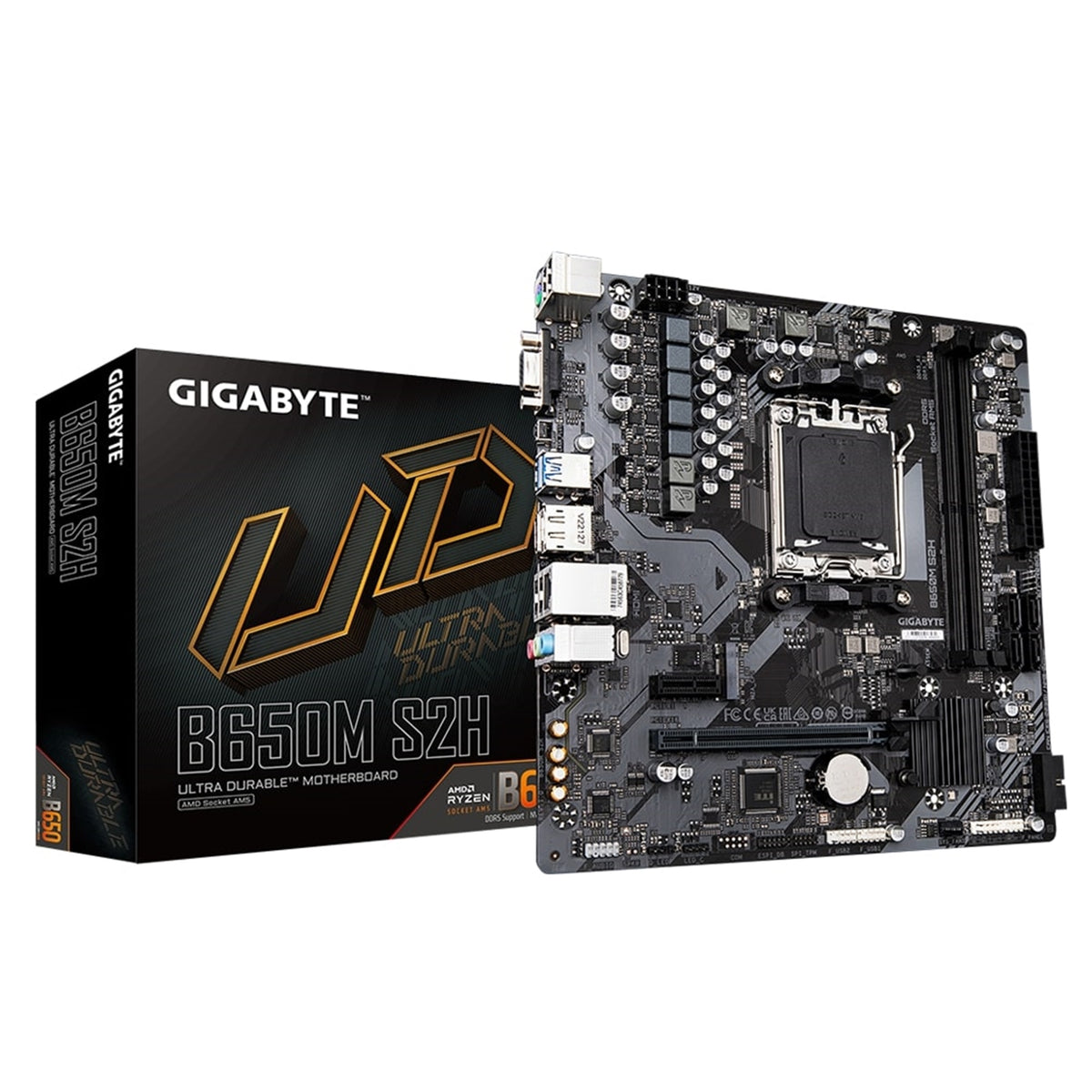

Gigabyte B650M S2H Motherboard, AMD AM5, Micro-ATX, AMD B650, 2x DDR5 up to 128GB, 1x PCIe 4.0 x16, 1x M.2 PCIe Gen4 x4, 4x SATA3, GbE LAN, No Wi-Fi, D-Sub + DisplayPort 4K144Hz + HDMI 4K60Hz

• Socket: AM5
• CPU Compatibility: AMD Ryzen 9000 / 8000 / 7000 Series
• Chipset: AMD B650
• Form Factor: Micro-ATX
• Memory Slots: 2x DDR5
• M.2 Compatibility: 1x PCIe Gen4 x4 (CPU-direct)
• Wi-Fi: No

Gigabyte B650M S2H Motherboard (Ultra Durable)
An entry-level AMD AM5 Micro-ATX motherboard based on the B650 chipset. Supports Ryzen 7000, 8000, and 9000 Series processors. Features two DDR5 slots (up to 128GB, DDR5-7200+ OC, XMP + EXPO), one PCIe 4.0 x16 GPU slot, one CPU-direct M.2 (PCIe Gen4 x4), four SATA3 ports, Realtek Gigabit LAN, and triple display outputs including DisplayPort (up to 4K@144Hz). No Wi-Fi. Includes Q-Flash Plus (BIOS update without CPU or RAM), Smart Fan 6, ARGB and RGB headers.

UK-based seller
Tracked delivery across the UK
Genuine product from trusted distributors

Key Features
Socket: AM5; Chipset: AMD B650
CPU support: AMD Ryzen 7000 / 8000 / 9000 Series
Form factor: Micro-ATX (23.0 x 22.5cm)
Memory: 2x DDR5 DIMM; max 128GB; DDR5-7200+(OC); XMP + EXPO support
GPU slot: 1x PCIe 4.0 x16 (note: Ryzen 8000 Phoenix 1 runs at x8, Phoenix 2 at x4)
M.2: 1x PCIe Gen4 x4 CPU-direct (2280/2580); no PCIe Gen5 M.2
SATA: 4x SATA3 6Gb/s (RAID 0/1/10)
Chipset slot: 1x PCIe 3.0 x1
Display (APU): D-Sub (max 1920x1200@60Hz); DisplayPort (max 3840x2160@144Hz); HDMI (max 4096x2160@60Hz)
LAN: Realtek GbE (1Gbps); Wi-Fi: None
USB rear: 2x USB 3.2 Gen1, 4x USB 2.0, 1x USB 2.0
USB front headers: 2x USB 3.2 Gen1, 4x USB 2.0
Audio: Realtek HD Audio 7.1 CH
Power: 5+2+2 phase VRM; 24-pin ATX + 8-pin 12V
Fan headers: 1x CPU, 2x System (Smart Fan 6, PWM/DC)
RGB: 1x ARGB header, 1x RGB header
Q-Flash Plus: BIOS update without CPU/RAM installed
BIOS: AMI UEFI; Q-Flash; Q-Flash Plus button

Technical Specifications
Model: B650M S2H
Socket: AMD AM5
Chipset: AMD B650
Form Factor: Micro-ATX
Memory: 2x DDR5 DIMM; max 128GB; DDR5-7200+(OC)
PCIe GPU: 1x PCIe 4.0 x16
M.2: 1x PCIe Gen4 x4 (CPU; 2280/2580)
SATA: 4x SATA3 6Gb/s (RAID 0/1/10)
Display Output: 1x D-Sub (1920x1200@60Hz), 1x DisplayPort (3840x2160@144Hz), 1x HDMI (4096x2160@60Hz)

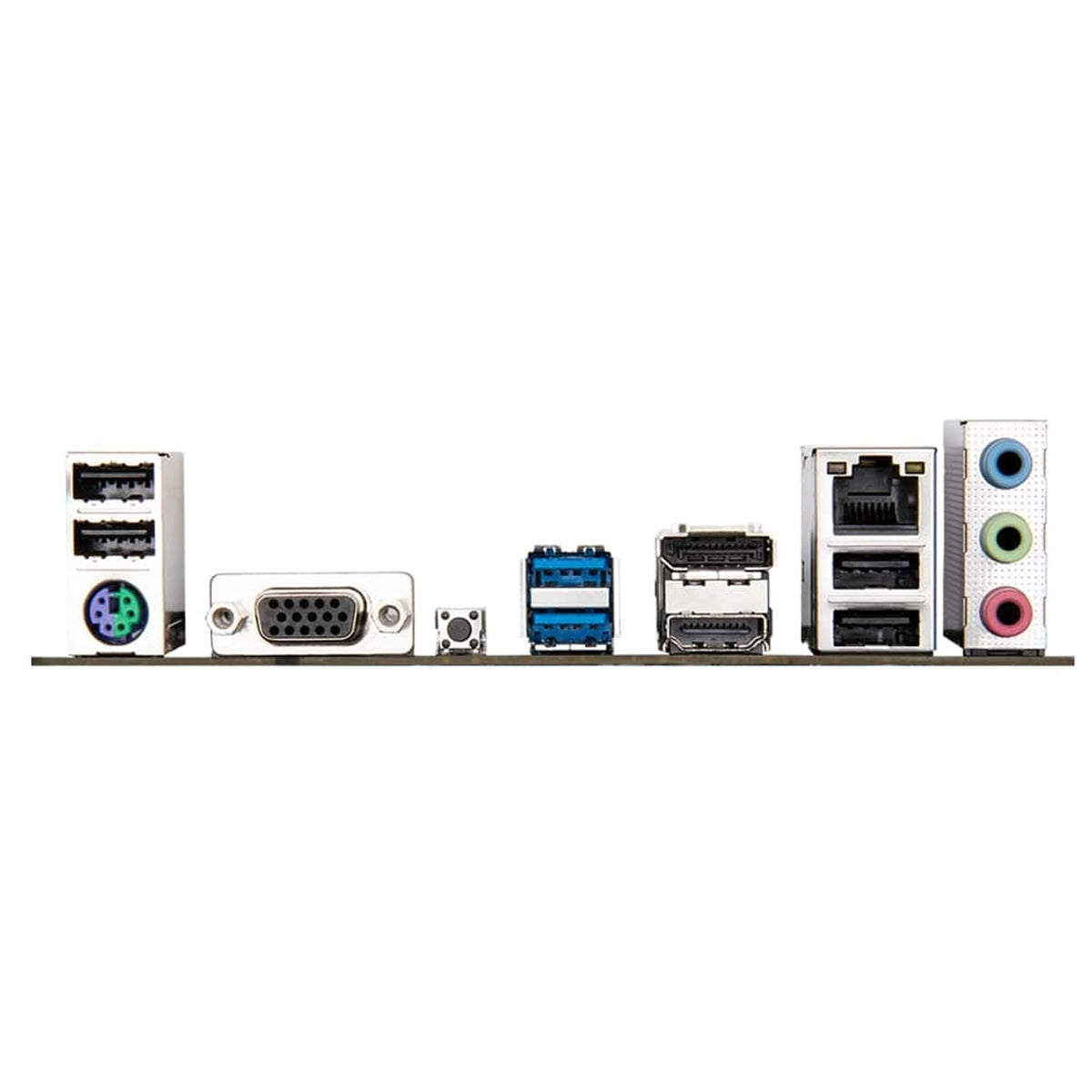

USB (Rear): 2x USB 3.2 Gen1, 4x USB 2.0, 1x USB 2.0
LAN: Realtek 1GbE
Wi-Fi: No
Audio: Realtek HD 7.1 CH
Power Phases: 5+2+2
RGB Headers: 1x ARGB, 1x RGB
Dimensions: 23.0 x 22.5cm

Product Identification
Model: B650M S2H
MPN: B650M S2H
EAN: 4719331856298
